>Products Catalog > cnc plasma/flame Cutting machine > Portable CNC Flame Cutting machine for 50mm thick stainless steel TYE-1530

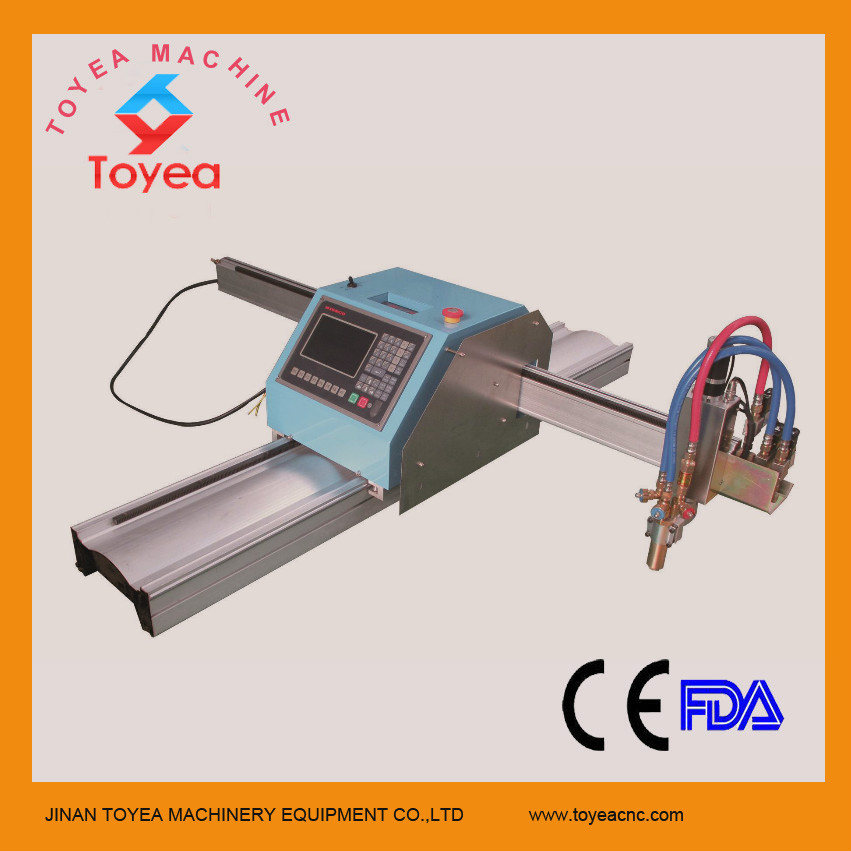

Portable CNC Flame Cutting machine for 50mm thick stainless steel TYE-1530
| Supply Ability: | 300 Piece/Pieces per Month |
|---|---|
| Shipping: | Delivery time 5 days from Qingdao port |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Free-fumigation wooden case for exporting |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2 years
- Certification: CE
- Weight: 150kg
- Voltage: 110V or 220V,380V
- Model Number: TYE-1530
- Brand Name: TYE
- Condition: New
Specifications
Portable CNC Flame Cutting machine for 50mm thick stainless steel
Features:
1.it is widely used in ship building,automobile industry,electric machinery,engineering plant and mining machinery
2.this machine is our newest upgrade product.
3.the lead rail is opened mold processing which is much more wider,thicker and more strong.
4.the machine with automatic strating fire device,high cutting accuracy.plasma and flame cutting functions. the max flame cutting thickness can up to 200mm
5.the machine screen size is 7.5 inch which can display the cutting drawings,and the internal memory is 1G which can save 83pcs document. And it also has power off memory function
6.the machine with automatic arc voltage height controller,autmatic nesting software,it can cut any complex drawing
7.two functions:flame cutting and plasma cutting
8.the operation system can be choosen as your requirement
Applicaitons:
It can cut mild steel(flame cutting)and high carbon steel,stainless steel,aluminium,copper and other non-ferrous metal(plasma cutting)etc,be widely applied in industries such as machinery,automobile,shipbuilding,petro-chemical,war industry,metallurgy,aerospace,boiler and pressure vessel,locomotive etc.
Parameters:
| Model |
TYE-1530 |
| Effective cutting area |
1500(up to 1700mm)*3000mm(up to limitless) The effecitive cutting area is changable for need. |
| Cutting mode |
Plasma only,flame only,plasma and flame |
| Driving mode |
Stepper mode,dual driving or servo driving |
| Cutting speed |
0-8000mm per minute |
| Plasma cutting thickness |
Depend on current of plasma power source |
| Height adjuster mode |
Electric or automatic height adjuster |
| Stand demission |
3500*2000*350mm |
| Power source/power |
220V,380V/50-200W |
| Packing |
Plywood case |
| Operation system |
START control system(customized for requirement) |
| Language version | English/Chinese |
| Weight |
150kg |
