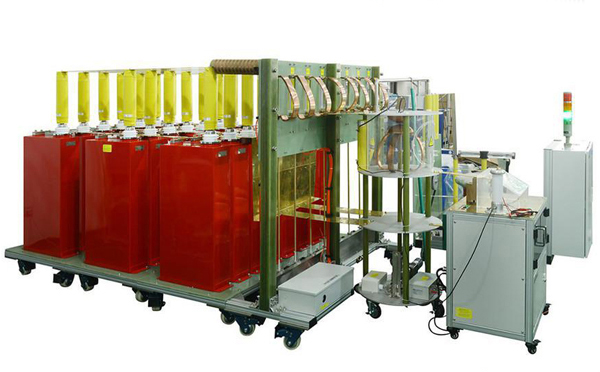

NACJ 2400kV Impulse Voltage Generator

Supply Ability:	99,999 Set(s) per Year
Shipping:	1 work day delivery time, from Shanghai & Shenzhen port, etc
Payment Terms:	L/C, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Adapt international standard IPPC wooden package

Quick Details

Brand Name: NAELECTRIC
Frequency: 50Hz~60Hz
RATED POWER: 220V &380V
Output Type: PLC control
Rated Voltage: 100kV~5600kV
Model Number: 550651
Impulse Voltage Generator: Impulse Generator
lightning impulse: Impulse current Generator

Specifications

Product introduction
NACJ 2400kV impulse voltage generator is mainly used in electric power equipment such as power transformers, transformers, combined electrical composite insulators, surge arrester and other tested objects to carry out the impulse voltage test for full wave of lightning impulse voltage, chopped wave of lightning impulse voltage, operating shock wave and steep wave, testing insulation performance.
1200kV / 2400kV and 4800kV series impulse voltage generator can produce three kinds of impulse voltage waveform: standard lightning full-wave, operating wave and lighting chopped wave. 1200kV series impulse voltage generator can produce eight kinds of impulse voltage waveform: standard lighting wave, operating wave, lighting chopped wave, oscillating lighting wave, oscillating operating wave, steep wave of line insulator, steep wave of composite insulators and transformer inductive operation wave. the technical indicators is in line with national standards and IEC standards, has passed the ministerial appraisal, the main technical performance is in the domestic leading position, has reached the advanced level of international similar products.

Characteristics of the products
(1) Complete configuration with wide voltage levels in the whole set of device.
(2) Small circuit inductance of the impulse voltage generator, a band-stop filtering measures is adopted so that a standard impulse wave is still generated even under a large capacity load and large load capacity, it is applied to scientific research and business units.
(3) Large voltage utilization factor, lightning wave and operating wave are not less than 90% and 80%;
(4) Compact structure, beautiful appearance, convenient modulated wave, simple operation, good synchronizing performance and reliable operation;
(5) Adopting SCR or LC constant-current charging automatic control technology, which is high automation and strong anti-interference ability.
(6) Chopped wave delay is adopt the delay mode of electronic delay adjustable circuit L-C.

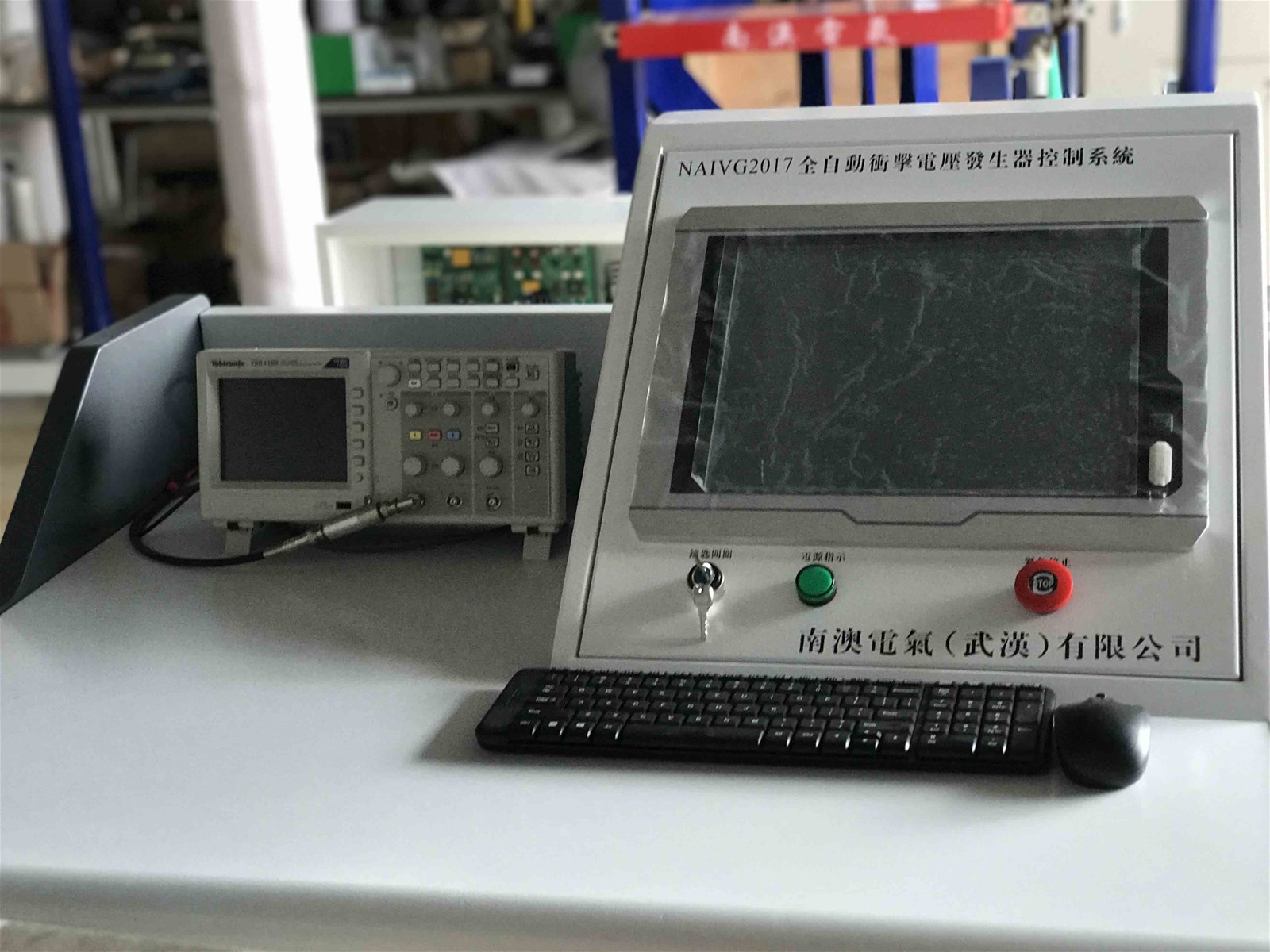

(7) Computer controlled to measure (fiber) system.
NACJ 2400kV Impulse Voltage Generator
