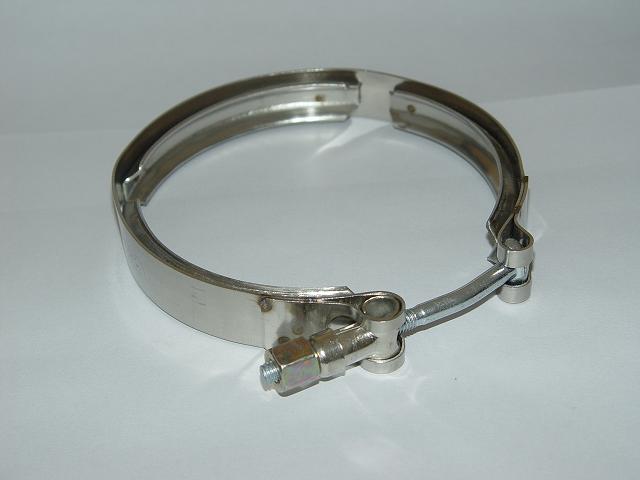

V-BAND CLAMP

Payment Terms:	L/C, T/T

Inquiry Now

Specifications

V-Band Clamp

Usage range mm	Band Width mm	Thickness mm	Qty/case Pcs
49-54	19	0.65	200
52-57	19	0.65	200
59-64	19	0.65	200
65-70	19	0.65	200
71-76	19	0.65	200
75-80	19	0.65	200
82-87	19	0.65	200
87-92	19	0.65	200
91-96	19	0.65	200
104-109	19	0.65	200
111-115	19	0.65	200
118-123	19	0.65	200
125-130	19	0.65	200

Technical Details:
The material of all our products can be choosed from W1 to W5 according to your
requirements. For common use, W2 is OK. If you need improved corrosion resistance,
we recommend W4, and for environments with high corrosion, W5 will be perfect. You
can find more detailed informations and factors about the different material from the table below.
Material Combinations and Corrosion Resistances
Material	Screw	Housing	Band	Application	Corrosion Resistance In Salt Spray
W1	Zinc Plated	Zinc Plated	Zinc Plated	Household appliances, indoor plumbing work	Min. 44 hours
W2	Zinc Plated	DIN 1.4016 AISI 430		Cars, lorries, mechanical engineering with low requirements in terms of corrosion resistance	Min. 72 hours
W3	DIN 1.4016 AISI 430			Automotive sector	Min. 200 hours
W4	DIN 1.4301 AISI 304			For critical connections in cars such as petrol pipes, top grade mechanical engineering, agricultural machinery, motorbikes, etc.	Min. 240 hours
W5	DIN 1.4401 AISI 316			In shipbuilding, defence technology, the foodstuffs industry, sewage treatment works, the chemical industry and mechanical engineering on top requirements.	Min. 400 hours
