Shenzhen Full-Fusion Electrics Technology Co., Ltd.
China Manufacturer with main products: IC Test Sockets, Burn-In Socket, Connector, Switch, Potentiometer |
Home
>Products Catalog > IC SOCKETS > Yamaichi IC357-2084-019P-2 QFP208PIN 0.5MMPITCH IC TEST BURN IN SOCKETS

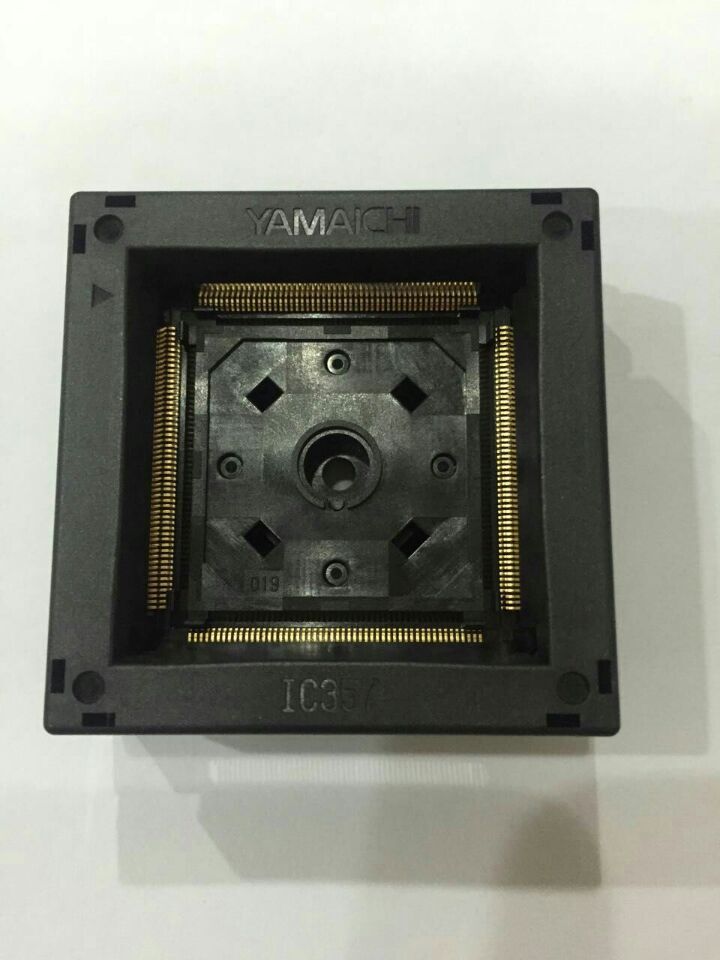

Yamaichi IC357-2084-019P-2 QFP208PIN 0.5MMPITCH IC TEST BURN IN SOCKETS
| FOB Price: | 104.00 - 105.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Day |
| Shipping: | 2-3days |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Japan |
| Packaging Details: | 12pcs for one box |
Quick Details
- Application: PCB
- Type: QFP SOCKET
- Model Number: IC357-2084-019P-2
- Brand Name: YAMAICHI
- COLOR: BLACK
Specifications
Yamaichi IC357-2084-019P-2 QFP208PIN 0.5MMPITCH IC TEST BURN IN SOCKETS
SPECIFICATION
Insulation resistance:1,000m ohm or more at 100VDC
Dielectric withstanding voltage: 100VDC for one minute
Contact resistance: 100m ohm or less at 20mv
Operation temperature: -40deg.c+150deg.c
Contact force: 0.4N-0.5N per pin
Life span: 10000 times
Operation force: 29.4N±5.0N
All of this below sockets are in stock ,please let me know if you are interested ,thank you.
YAMAICHI IC354-0482-031P1
YAMAICHI IC354-0562-010
YAMAICHI IC357-0804-003P
YAMAICHI IC357-1004-002P
YAMAICHI IC357-1004-014P-1-2-M
YAMAICHI IC357-2084-019P-2
YAMAICHI IC369-0542-007
YAMAICHI IC118-1601-G4
YAMAICHI IC118-2002-G4
YAMAICHI IC118-2403-G4
YAMAICHI IC118-2804-G4
YAMAICHI IC118-4006-G4
YAMAICHI IC46-2410-G4
YAMAICHI IC46-3010-G4
YAMAICHI IC39-2304-G4
YAMAICHI IC39-1206-G4
YAMAICHI IC39-1408MF-G4
YAMAICHI IC39-1602-G4
YAMAICHI IC39-1505MF-G4
YAMAICHI IC118-1601-G4
YAMAICHI IC118-2403-G4
YAMAICHI IC118-4006-G4
shirly
sales manager
full-fusion technology limited
