Xinsu Global Electronic Co.,Limited
China Manufacturer with main products: Power Adapter, Switcher Power Supply, Battery Charger, Open Frame Power Supply |
Home
>Products Catalog > battery charger > 14.6V1.5A lifePO4 battery charger for 12V LiFePO4 battery

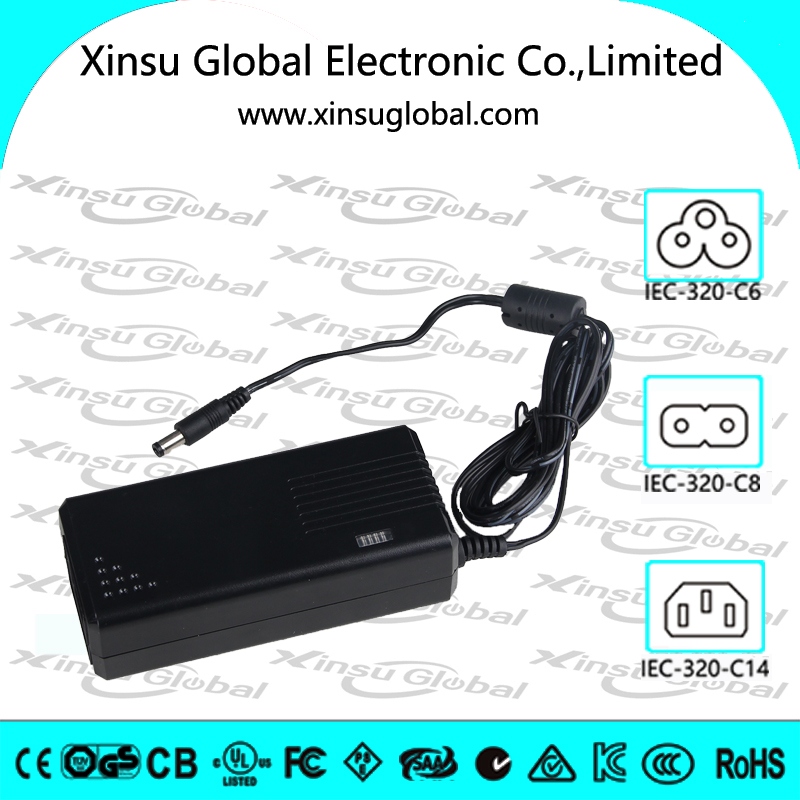

14.6V1.5A lifePO4 battery charger for 12V LiFePO4 battery
| Supply Ability: | 6,000,000 Piece/Pieces per Year |
|---|---|
| Shipping: | Port Shen,lead time15-20days |
| Payment Terms: | T/T, Western Union, Other, paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | White Box,100pcs/CTN/15KG |
Quick Details
- Type: Electric
- Use: 4cell lifePO4 batteryVideoLightingequipment
- Model Number: XSG1461500JP
- Brand Name: XinsuGlobal
- Output Connector: Customized
- Charge Mode: CC~CV
- LED: Charging status: Red/Charging;Green/Finished
- Lead Time: Sample:5days,Mass production:15-20days
Specifications
14.6V1.5A lifePO4 battery charger
Product Features:
|
Input |
100-240VAC,50/60HZ |
|
Input connector |
IEC-320-C6;IEC-320-C8 |
|
Output |
14.6Vdc,1.5A |
|
Output Connector |
Customized |
|
Efficiency |
≥85.848% |
|
No Load Power Consumption |
≤0.1W |
|
Protection Characteristic |
Polarity protection,OVP;OCP;SCP; |
|
Charge Mode |
CC~CV |
|
LED |
Charging status: Red/Charging;Green/Finished |
|
HIPOT |
3KVAC,5mA,60s |
|
MTBF |
50,000HRS |
|
Operating Temperature |
-20℃~ +45℃ |
|
Storage Temperature |
-30℃~ +70℃ |
|
Dimension |
96mm*46mm*33mm |
|
Net Weight |
0.15KG/PC |
|
Package |
White Box,100pcs/CTN/15KG |
|
MOQ |
500pcs |
|
Lead Time |
Sample:5days,Mass production:15-20days |
|
Safety Standards |
UL/J/EN/IEC60950,CSAC22.2,AS/NZS60950, |
|
Certifications |
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,SAA,C-Tick |
|
Energy Consumption |
DOE:Ⅵ;Erp;Nrcan;MEPS |
|
Environmental Protection |
RoHS,REACH |
|
Applications |
4cell lifePO4 battery,Video,Lighting,equipment, |
Remarks:
- Warranty Period: 24 months
- Trade Currency :RMB,USD,HKD
- Payment Terms: Telegraphic Transfer,Paypal,Western Union
- Delivery Methods:Shipping,Air and Express Supported(Free in Guangdong Province)
Series Params:
|
Model |
Input |
Frequence |
Output |
Plug type |
||
|
Vac |
HZ |
Vdc |
Amp |
Watt Max |
||
|
XSGxxxyyyyzz |
100~240 |
50/60 |
3.6~58.8 |
0.3~5.0 |
36 |
Desktop |
"XSG" stands for Xinsu Global Electronic Co.,Limited
Variable " xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).
Variable " yyyy" = 0300-5000,can be 0300-5000 to denote different output current,(300mA~5000mA).
Class II Variable " zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for Japan,
Blank Or WW for worldwide etc;
