A-Ok Trading (Ningbo) Co., Ltd.
China Manufacturer with main products: Mobility Scooter, Electric Scooter, Electric Bicycle, Electric Tricycle, Disabled Scooter, Electric Mobility, Children Bike, Children Car |

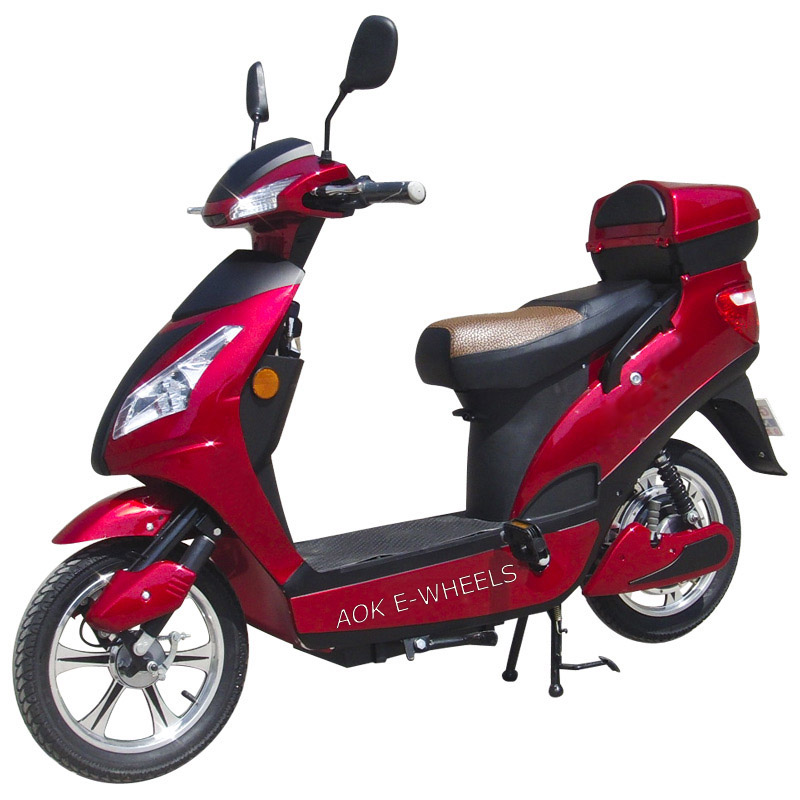

250W/350W/500W Motor Moped with Mirrior and Rear Box (ES-009)
| FOB Price: | 313.00 - 344.30 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Shipping: | Lead time:15 working days for samples, 20~25 days for bulk. |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | AOK E-WHEELS |
Quick Details
- Model Number: ES-009
- Brand Name: AOK E-WHEELS
- Net Weight: 56KGS
- Gloss Weight: 60KGS
- Rim Material: Aluminum Alloy
- Fork Material: hydraulic pressure
- Frame Material: Steel
- Wheel Size: 16"
- Front Fork: Hydraulic Pressure
- PAS: with Pedal
- N.W/G.W: 56kg/60kg(48V 12ah); 66kg/70kg(48V 20ah)
- Charging Time: 6-8h
- Running Distance: 40km/50km/70km
- Brake: Front Drum Brake/Rear Expanding Brake
- Voltage of Battery: 36V/48V
- Power: 250W/350W/500W
- Maximum Loading Capacity: 120kg
- Throttle: Twist intelligent speed control
Specifications
250W/350W/500W Motor Moped with Mirrior and Rear Box (ES-009)
1.Motor: brushless hub motor 250W / 350W /500W
2.Battery: 36V12AH/48V12Ah/20Ah sealed lead-acid battery
All battery with electric protection circuit
3.Controller: Brushless controller
4.Tyres: 16"x2.5
5.Max load: 120KGS
6.Max speed: 32km/h(USA&Canada)
7.Range: 40km(36V 12AH); 50KM(48V 12AH); 70km (48V 20AH)
5.Charger: 110V60HZ
6.Charging time: around 8 hours
7.Front brake: drum brake
8.Rear brake: Expanding brake
9.Brake lever: cut-off when braking
10Lamp: common bulb or LED
11.Dashboard: common meter or LCD
12.Front fork: hydraulic pressure
13.PAS: with pedal
14.Throttle: Twist intelligent speed control
15.N.W/G.W: 56kg/60kg(48V 12AH); 66kg/70kg(48V 20AH)
Electronic specification:
| Motor | brushless hub motor 250W / 350W /500W |
| Battery |
36V12AH/48V12Ah/20Ah sealed lead-acid battery All battery with electric protection circuit |
| Dashboard | common meter or LCD |
| Controller | Brushless controller |
| Charger | 220V50HZ |
| Charging time | around 8 hours |
| Lamp | common bulb or LED |
Performance & Main components:
| Max speed | 25km/h ;32km/h |
| Range | 40km(36V12AH);50KM(48V12AH);70km (48V20AH) |
| Max load | 120KGS |
| Tyres | 16"x2.5 |
| Front fork | hydraulic pressure |
| Front brake | drum brake |
| Rear brake | expanding brake |
| Brake lever | cut-off when braking |
| PAS | with pedal |
| Throttle | Twist intelligent speed control |
Packaging:
| Unit packaging | Each in Color Box |
| Packing | Each in a carton box |
| N.W/G.W |
56kgs/60kgs(48V12AH); 66kgs/70kgs(48V20AH) |
| Qty / Export carton | 1 pc/ctn |
| Export carton dimension | 163.3×36.7×99.2cm |
| 1x20'footer FCL quantity | 47PCS |
| 1x40'footer FCL quantity | 100PCS |
| 1X40'HQ | 100PCS |
Business Terms:
1.The price above are based on MOQ.
2.Lead time:7 days for sample order.25 days for one container.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Warranty:
8 months for battery;
1 year for motor;
1 year for controller;
1 year for charger.
(The warranty is based on broken not made by human being.)
If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
