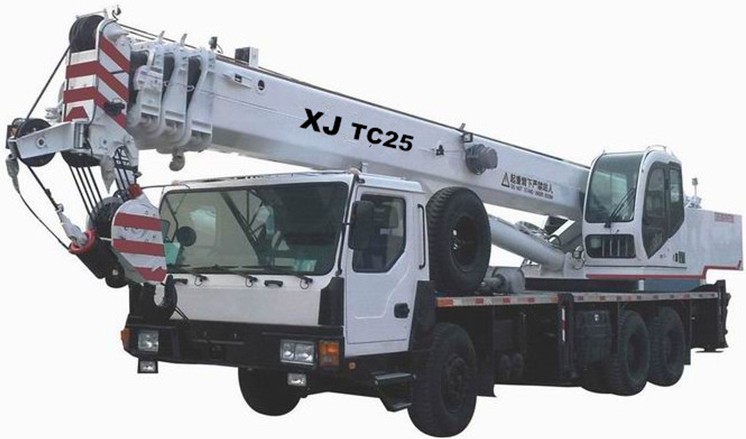

truck crane 25ton

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Nude

Quick Details

(1) Four-section hexagon large curve boom, the telescopic system adopt single cylinder and rope guiding devices,

so ensure the super lifting ability.

(2) Engine adopts Weichai brand, but Cummins brand can be optional

(3) Transmission adopts Fast brand

(4) Full-dimensional streamline driver's cab and newly designed operator's cab, with wide vision and the

equipment of instrument panel, CD device, A/C, etc, providing high comfortable efficiently and reduce the

weariness for continuous driving.

(5) Adopt the famous brand winch system to controlling the main and auxiliary hoisting system , guarantee the

high lifting efficiently and stable work performance.

(6) Equipped with the LMI controlling system, height limiter, safety valves, lights, etc.

(7) Adopt the rod type operation system.

ITEM	UNIT	DATA
Dimension
Overall dimension (LWH)	mm	1323025003450
Outrigger longitudinal span	mm	5310
Outrigger transversal span	mm	5900
Weight
Total weight in travelling	kg	28900
Axle load	kg	Front :6600/Rear:22300
Standard Engine (Weichai)
Engine model		WP10.270N
Engine rated power	HP/(r/min)	270/2100
Engine rated torque	N.m/(r/min)	1100/1200~1600
Optional Engine (Cummins)
Engine model		ISLE290 30
Engine rated power	HP/(r/min)	290/2500
Engine rated torque	N.m/(r/min)	1050/1000~1900
Working performance specifications
Max. rated lifting capacity	kg	25000
Lifting moment for basic boom	KN.m	784
Boom lifting height	m	32
Jib lifting height	m	40
Single line speed	m/min	100
Slewing speed	r/min	2
Travelling specifications
Max. travelling speed	Km/h	70
Max. grade ability	%	20
Min. turning radius	m	10.5
Min. ground clearance	mm	320
Approach angle	°	20
Departure angle	°	11
