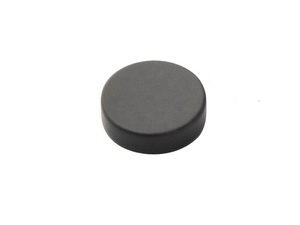

Disc sintered ferrite magnet for Magnetic pillow

FOB Price:	0.11 - 0.25 USD/Piece
Supply Ability:	20,000 Ton/Tons per Year
Shipping:	Shanghai
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	standard export packing by air or by sea

Quick Details

Application: Industrial Magnet
Shape: disc,round,cylinder
Composite: Ferrite Magnet
Type: Permanent
Model Number: Y30-Y40
Brand Name: MAS MAGNETICS
Br(mT): 200~450
HcB(KA/m): 125~342
HcJ(KA/m): 140~410
BH(max)MGOe: 0.8~4.8

Specifications

Sintered Ferrite Magnet

Brief

Sintered Ferrite is sintering magnetic materials. Main Components are SrO or BaO and Fe2o3, According to different processing
technology , it can be divided into isotropic and anisotropic. Isotropic magnet has lower property, but it can be magnetized
through to every side of magnet; anisotropic magnet has higher property, but they only can magnetize through predesigned
magnet size.

Applicant

Our magnets are mainly used for loud speaker, microwave oven, D C motor, instrument and apparatus, mechanical equipment ,
art work and toys so on.

Characteristics

Characteristic: High working temperature

Strong ability of resistance to demagnetization ,

Not easy to be oxidized

Sintered Ferrite Magnet Performance and Grade

Grade	(Br)		(HcB)		(HcJ)		(BH)max
Grade	mT	KGauss	KA/m	KOe	KA/m	KOe	KJ/m3	MGOe
Y10T	200~235	2.0~2.35	125-160	1.57-2.01	210-280	2.64-3.51	6.5-9.5	0.8-1.2
Y22H	310~360	3.10~3.60	220-250	2.76-3.14	280-320	3.51-4.02	20.0-24.0	2.5-3.0
Y25	360~400	3.60~4.00	135-170	1.70-2.14	140-200	1.76-2.51	22.5-28.0	2.8-3.5
Y26H-1	360~390	3.60~3.90	200-250	2.51-3.14	225-255	2.83-3.20	23.0-28.0	2.9-3.5
Y26H-2	360~380	3.60~3.80	263-288	3.30-3.62	318-350	3.99-4.40	24.0-28.0	3.0-3.5
Y27H	350~380	3.50~3.80	225-240	2.83-3.01	235-260	2.95-3.27	25.0-29.0	3.1-3.6
Y28	370~400	3.70~4.00	175-210	2.20-3.64	180-220	2.26-2.76	26.0-30.0	3.3-3.8
Y28H-1	380~400	3.80~4.00	240-260	3.01-3.27	250-280	3.14-3.52	27.0-30.0	3.4-3.8
Y28H-2	360~380	3.60~3.80	271-295	3.40-3.70	382-405	4.80-5.08	26.0-30.0	3.3-3.8
Y30H-1	380~400	3.80~4.00	230-275	2.89-3.46	235-290	2.95-3.64	27.0-32.5	3.4-4.1
Y30H-2	395~415	3.95~4.15	275-300	3.45-3.77	310-335	3.89-4.20	27.0-32.0	3.4-4.0
Y32	400~420	4.00~4.20	160-190	2.01-2.39	165-195	2.07-2.45	30.0-33.5	3.8-4.2
Y32H-1	400~420	4.00~4.20	190-230	2.39-2.89	230-250	2.89-3.14	31.5-35.0	3.9-4.4
Y32H-2	400~440	4.00~4.40	224-240	2.81-3.01	230-250	2.89-3.14	31.0-34.0	3.9-4.3
Y33	410~430	4.10~4.30	220-250	2.76-3.14	225-255	2.83-3.20	31.5-35.0	3.9-4.4
Y33H	410~430	4.10~4.30	250-270	3.14-3.39	250-275	3.14-3.45	31.5-35.0	3.9-4.4
Y34	420~440	4.20~4.40	200-230	2.51-2.89	205-235	2.57-2.95	32.5-36.0	4.1-4.4
Y35	430~450	4.30~4.50	215-239	2.70-3.00	217-241	2.73-3.03	33.1-38.2	4.1-4.8
Y36	430~450	4.30~4.50	247-271	3.10-3.40	250-274	3.14-3.44	35.1-38.3	4.4-4.8
Y38	440~460	4.40~4.60	285-305	3.58-3.83	294-310	3.69-3.89	36.6-40.6	4.6-5.1
Y40	440~460	4.40~4.60	330-354	4.15-4.45	340-360	4.27-4.52	37.6-41.8	4.7-5.2
