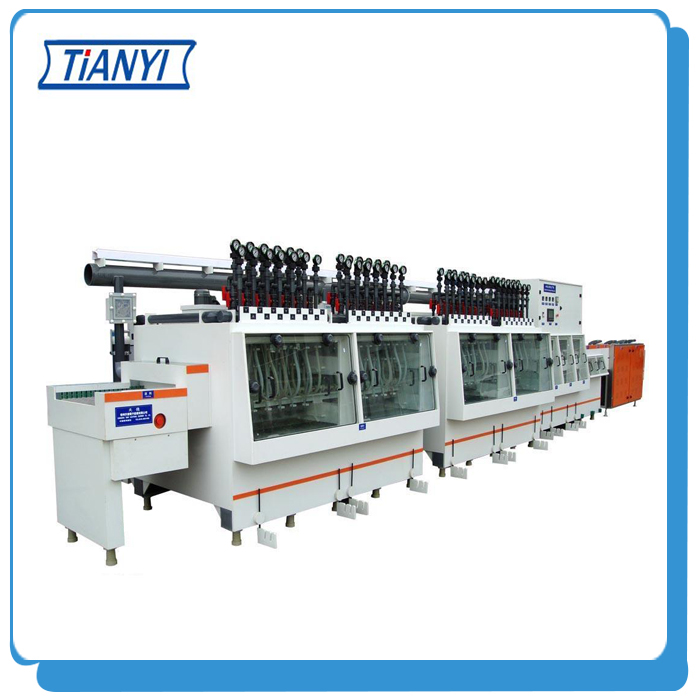

TY-Four-meter Developing Machine

In Stock

Export Markets:

Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe

Place of Origin:

Jiangsu in China

Packaging Details:

Wooden Box

Quick Details

After-sales Service Provided: Overseas service center available

Model Number: TY-CBE-40

Brand Name: Tian Yi

Packaging Details: Wooden Box

Delivery Detail: 45 days per set

Specifications

Quick Details

Packaging & Delivery

Packaging Details:	Wooden Box
Delivery Detail:	45 days per set

TY-Four-meter Developing Machine

Process flow:

Feeding → Developing 1 → Developing 2 → Pump washing 1/2/3/4 → DI Water washing → Blot up → Cold wind drying → Hot wind drying → Discharge

Features:

1. This machine is used for the developing of precision image.

2. Each spray pipe has its own pressure adjustments and special nozzle layout, which can ensure the precision graphics and fine lines.

3. The filtering device can avoid the defects because of the surface residual fragments.

4. The horizontal swing spray system used with special nozzle is featured with even spray and stable water flow to reach perfect developing effect.

Main technical parameter:

1	Size of Machine	L10745×W1800×H1980mm	2	Working Height	900mm
3	Working Width	640mm	4	Wheelbase	35mm
5	Running Speed	0.1-5m/min	6	Power voltage	Three-Phase Four-Wire 380 V 50 HZ
7	Total power of the machine	75KW	8	Size of minimal board	80mm*60mm
9	Thickness of outputting board	0.075-2.5mm	10	Running water consuming	20-32L/min
