Cocreator (Tianjin) Machinery Technology Co., Ltd.
China Manufacturer with main products: Cut to Lenghth Line, Slitting Line, Flying Shear Cut to Length Line, Rotary Shear Cut to Lenght Line, Flat Bar Rolling, Leveling, Laser... |
Slitting Line
| FOB Price: | 100,000.00 - 150,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Shipping: | 60 days by sea |
| Payment Terms: | L/C, D/P, T/T |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Africa, Mid East |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | seaworthy or customized |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: CE ISO
- Weight: as Model No.
- Dimension(L*W*H): as Model No.
- Rated Power: 50KW
- Voltage: 220V or customized
- Model Number: ESL
- Brand Name: Cocreator
- Condition: New
- Thickness of Coil: 0.2-16mm
- Width of Coil: 500-2000mm
- Speed of Decoiling Max.: 60m/min
- Decoiling Weight: 7-30t
Specifications

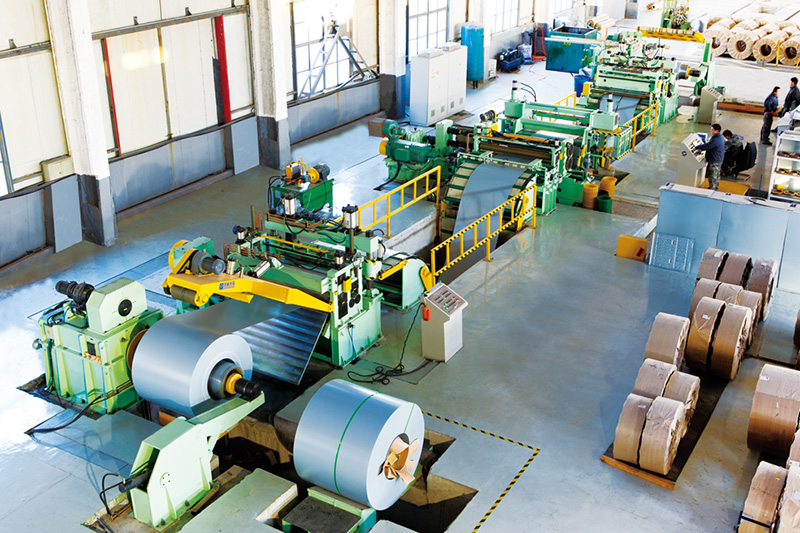

Slitting Line
*Product Description:
It can be used to cut into desirable width of rolling material through uncoiling, slitting, rewinding process. Applicable to process for all types of metal materials special in cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and coated material.
For the users who require high quality product , we would like to recommend EPC automatic edge or in a material, which is convenient for feeding, ensuring improve work efficiency, improving cutting accuracy meanwhile protecting sheet. EPC can also choose automatic edge control, to ensure orderly winding degree, especially for wide material winding.
Production line mainly consists of feeding car, uncoiler, leveler traction, shearing, slitting machine, scrap winder, tension mechanism, winders, unloading equipment and other components.
1. Highly degree of automation, simple and reliable.
2. Slitting machine interactive transposition, highly working efficiency.
3. Fast production line speed, self-matching line speed.
*Specifications Table:
|
Model No. |
Thickness of Coil |
Width of Coil |
No. of Slitting |
Slitting Speed |
Decoiling Weight |
Remark |
|
ESL-0.5x1300 |
0.15-0.5 |
500-1300 |
24 |
50-150 |
7 |
Technical parameters, device configuration according to customer needs to determine |
|
ESL-2x1300 |
0.3-2 |
500-1300 |
12-30 |
50-200 |
7/15 |
|
|
ESL-2x1600 |
0.3-2 |
500-1600 |
12-30 |
50-200 |
7/15 |
|
|
ESL-3x1600 |
0.3-3 |
500-1600 |
8-30 |
50-180 |
15 |
|
|
ESL-3x1800 |
0.3-3 |
900-1800 |
8-30 |
50-180 |
20 |
|
|
ESL-4x1600 |
1-4 |
900-1600 |
6-30 |
50-120 |
20 |
|
|
ESL-6x1600 |
1-6 |
900-1600 |
6-30 |
30-80 |
30 |
|
|
ESL-12x1600 |
2-12 |
900-1600 |
5-30 |
20-50 |
30 |
