Home  >Products Catalog > Lamination machines > Improved automatic laminating machine Model YFMA-920

Improved automatic laminating machine Model YFMA-920 SafeBuy Supplier Member

Shipping: 30% advance payment be paid by TT before shipment, balance payment be paid before shipment by TT.
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Standard export package

Quick Details

  • Type: Laminating Machine
  • Certification: CE
  • Weight: Depends on machine size
  • Dimension(L*W*H): Depends on machine size
  • Model Number: YFMA
  • Voltage: 380V/50HZ/3phase (the voltage can change with surcharge)
  • Driven Type: Hydraulic
  • Automatic Grade: Automatic
  • Packaging Material: Wood,Plywood
  • Packaging Type: Cartons,Film,Pallet
  • Application: Machinery & Hardware
  • Condition: New
  • PLC control (HMI): automatic paper feeder
  • automatic separating: vibration collecting table
  • thermal oil circulation system: air expansion shaft
  • compact structure: stable running
  • automatic operation: small occupation area

Specifications

YFMA series is a mini type automatic laminating machine we develop according to market demand. It is with compact structure ,simple operation, stable system. It has multiple safety devices for operator. It is widely used for thermal laminating film, non-glue film and the laminating of presswork.


YFMA series is used for laminating thermal film and paper sheets. It is equipped with automatic feeder and automatic separating device, which are steady and highly active. The machine is also equipped famous brand parts such as SCHNEIDER in order to make sure it is steadier and safer.


With heating oil circulation system to guarantee the laminating under thermostatic. In electrical system, there is PLC controller which makes the high precision of paper feeding smooth running long service life and easy maintenance. It is suitable for thermal film, especially for certificate cards book cover packing box and food box, books, advertising products, window boxes, etc.

Structure and working principle:

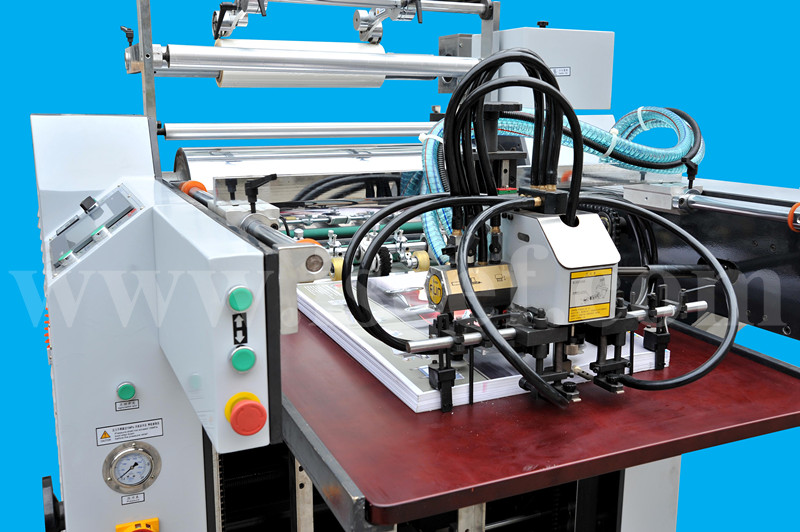

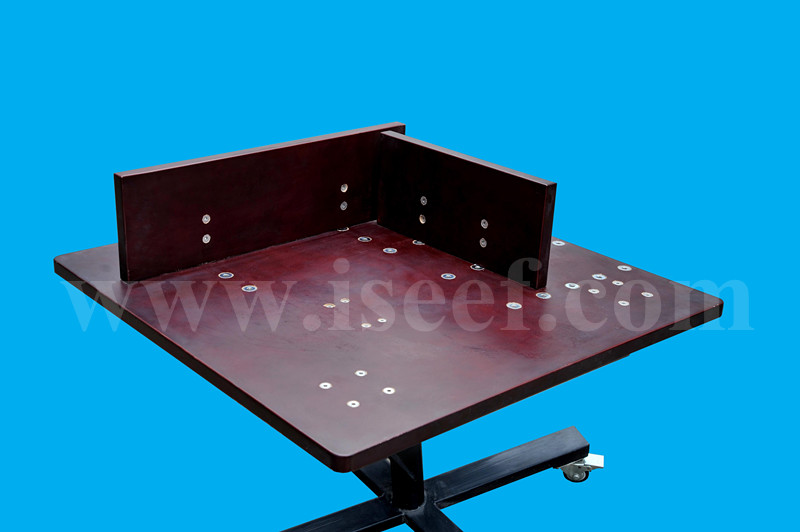

Paper sheets fed by automatic feeder are transferred to the front layor the lamination with film. The laminated paper sheets go through anti-curvature device, and enter separating system for paper separated. The separated paper sheets are sent to vibrating receiving table to pile up.



Model

YFMA-520

YFMA-720

YFMA-920

Max laminating size(W*L)

480*760mm

680*780mm

880*940mm

Min laminating size(W*L)

210*290mm

210*290mm

260*300mm

Laminating Speed

0-35 m/min

0-35 m/min

0-35 m/min

Paper thickness

105-500gsm

105-500gsm

105-500gsm

Laminating Temperature

≤130

≤130

≤130

Power

15 kw

15kw

16kw

Total Weight

1000kgs

1200kgs

1400kgs

Overall Dimensions(L*W*H)

3250 *1300 *1750 mm

3250*1500*1750 mm

3550*1700*1750 mm
