Acore Filtration Co., Ltd.
China Manufacturer with main products: Oil Filtration Machine, Transformer Oil Filtration Machine, Oil Treatment Plant, Transformer Oil Purification System, Vacuum Oil Purifier,... |

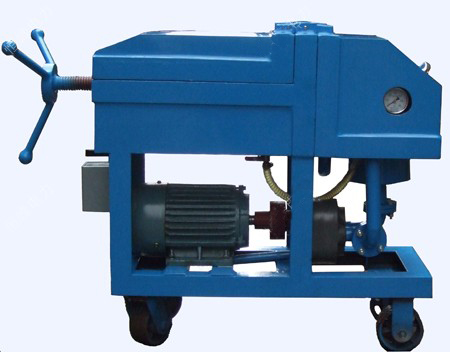

Plate Press Oil Filter Machine
| FOB Price: | 1,000.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 YEAR
- Certification: CE
- Dimension(L*W*H): option
- Weight: 100-500kg
- Power(W): 10-100kw
- Model Number: pfc
- Brand Name: Acore
- Structure: Cartridge
- Type: Press Filter
- Condition: New
Specifications
Application: Model PF-30 PF-50 PF-100 PF-125 PF-150 PF-200 PF-300 Capacity( L/min) Working pressure
(Mpa) 0～0.4 Filtering precision ≤ 1 micron Pressure type Manual type Plate size (mm) 200*200mm 300*300 Filter paper size
(mm) 200*200mm 300*300mm Filter ring
Quantity 6 8 10 12 15 20 26 Filter plate
Quantity 7 9 11 13 16 21 27 Motor Power (KW) 1.1 1.5 2.2 3 4 5.5 1.1 Speed (r/min) 1400 1400 1400 1400 1400 1400 1400 Inlet caliber 1 1
1/4 2
1/2 Outlet caliber 3/4 1
1/4 2
1/2 Dimension 800*300*600 800*400*800 1000*420*900 1000*450*950 Weight 150 180 250 280 300 320 340
PF-Series plate pressure oil filter machine is designed for power plants,
Industrial and mining substations, lubricants warehouse, tractor station,
Petroleum, chemical, cement, metallurgy etc. It can purify transformer oil,
Turbine oil, hydraulic oils, gear oils, lubricating oil and remove water,
Mechanical impurities. PR plate pressure oil purifier is consisted of filter
Bed, plates, oil pump, motor and filtering papers. the filter bed and plates
Consist of a filter house, between the plates, the papers as filtering media.
It also can purify fuel oil, cooking oil by using special materials and motor. PF-series
Plate press oil filter machine has a simple structure, convenient filter replacement, high
Filtration precision, easy operation, low cost.
Technical Specification
