PLT-800 Octocopter Unmanned Aircraft

Supply Ability:	500 Set/Sets per Year
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China

Quick Details

Model Number: PLT-800
Year Built: 2008
Condition: New
Type: Gyroplane

Specifications

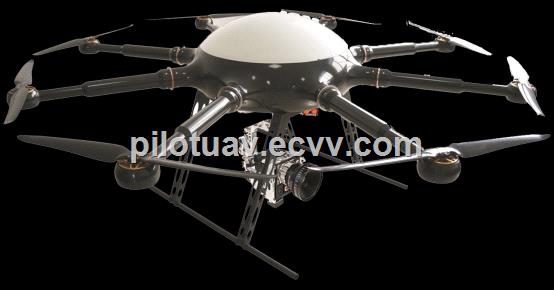

PLT-800 Octocopter Unmanned Aircraft

The fuselage of PLT-800 aircraft is made of full carbon fiber.it has the function of high strength,light weight,attractive appearance,strong maneuverability,easy and flexible manipulation,strong loading ability,convenient and efficient to carry.It is widely used in the industry and fields of aerial video,aerial reconnaissance,anti-terrorist,obtain the evidence,geological exploration,remote sensing surveying and mapping,

communication relay,environment protection,meteorological sounding,disaster monitoring,aerial surveying and public security fire-fighting.

The parameter of the camera

Size	205190100mm	Weight	1200g
Sensor	CMOS	Pixel	2010 ten thousand pixels
Sensor size	23.2*15.4mm	Operating Voltage	7.2V
Pixel Size	4.2μ	Lens layout	Orthographic:36mm Len+4 tilt lenses 50mm
Camera distortion correction	Corrected	Camera tilt angle	38°
Adjust mode	Support APP,all settings are adjusted via wireless terminal	Shutter trigger	Electronic micro delay,5 camera synchronous trigger

Size	225225115mm	Weight	2400g
Sensor	CMOS	Pixel	3640 ten thousand pixels
Sensor size	36*24mm	Operating Voltage	7.2V
Pixel Size	4.8μ	Lens layout	Orthographic:35mm Len+4 tilt lenses 50mm
Camera distortion correction	Corrected	Camera tilt angle	38°~40°
Adjust mode	Support APP,all settings are adjusted via wireless terminal	Shutter trigger	Electronic micro delay,5 camera synchronous trigger

1.Almost encompassing all load application

According to the customer requirements,to change the payload,you can change the equipped with dynamical system and voltage of the battery.The payload is 3KG~10KG,the maximum effective load can reach 15KG.Its application range reaches domestic top-ranked level.PLT-800 drone is widely used in the industry and fields of aerial video,aerial reconnaissance,anti-terrorist,obtain the evidence,geological exploration,remote sensing surveying and mapping,communication relay,

aerial surveying and public security fire-fighting.

2.Exquisite carbon fiber processing technology

The carbon fiber technology of the full carbon fiber is different from most of the process,most of the used materials are imported.Each component is handcrafted,its advantage is to ensure the maximum strength and attractive appearance,while lighter weight than most other processes.The length of PLT-800 drone is 2.72 meters,the weight of the flight drone is only 6.5kg.

3.Efficient and stable power system

28.6-inch full carbon fiber hollow paddle,customizable mute efficient brushless motor.The efficiency reaches the top level of domestic UAV power system.Each paddle and motor are elaborately adjusted and tested,to give you a safe,reliable and comfortable flight status.

4.Reliable unmanned flight controller

PLT-800 unmanned flight controller was developed after a lot of practice flying,the security performance is very reliable.The GPS satellite navigation and fast navigation speed reflect its powerful function.The quantity of the stars can be searched more than 18 in open area. The controller supports the conventional functions such as OSD,brushless PTZ,ground station etc.Moreover,the aircraft is equipped with black box,multi-functional.

5.Parameter of the drone

Technical parameter	Particulars	Platform parameters	Particulars
Max take-off weight	30KG	Dimension(mm)	Length 2720Width 2720Height 800
Standard Load	8KG	Wheel base(mm)	1985
Max Load	15KG	Package Size(mm)	950950800
Cruising Speed	3 ~ 8m/s Adjustable	Rotor-wing Size	28.6 inches full carbon fiber hollow paddle
Maximum wind resistance	10m/s	Motor	LY8108-110KV-175KVCustomizable exterior rotor brushless motor LY8115-100KV-150KVCustomizable exterior rotor brushless motor
Altitude ceiling	5000Meter	Arm structure	Detachable
Flight radius	5KM	Power battery	6S1P * 4 * 22000mAH
Communication distance	5KM	Swatches	European standard swatches(customization)
Climbing rate	5m/s
Idling loiter time	40 ~ 70 Minutes
Take-off and landing	Vertical take-off and landing
Operating temperature	-20°~ +50°
