Hebei Secure-Net Fence Facility Co., Ltd.
China Manufacturer with main products: Whatsapp +15632889931, Marrisa, Reinforcing Mesh Welding Machine, Automatic Building Welder, Wire Mesh Machine, Fence Panel Welding Machine,... |
Home
>Products Catalog > Gabion box machine/hexagonal wire mesh machine > automatic Heavy Hexagonal Wire Mesh Netting Machine Max Mesh Weaving Width Heavy Duty gabion machine
automatic Heavy Hexagonal Wire Mesh Netting Machine Max Mesh Weaving Width Heavy Duty gabion machine
| FOB Price: | 30,000.00 - 35,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 25days after received the deposit |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden pallet and plastic package in the container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO9001:2008
- Weight: 17MT
- Dimension(L*W*H): 7200*1400*2300mm
- Model Number: SK-GA-4300
- Brand Name: SECURE-NET
- Production Capacity: 165*4(l*w) (660 square meters per hour)
- Application: . used in petroleum, construction, farming, chemical industry, heatin
- Type: Projectile Loom
- Condition: New
- First kind mesh size: 60x80
- Second kind mesh size: 80x100
- Third kind mesh size: 100x120
- Forth kind mesh size: 120x150
- Max width: 2300/3300/4300mm
- Wire diameter: 1.6-2.8/3.0/3.2mm
- Twisted number: 3/5
- Main Drive Shaft Speed: 20/25
- Motor Capacity: 11/15/22
- Theoretical Speed: 165/195/225/255
Specifications
Gabion machine wire mesh rock wall making machine
Product Description
Adavantage
1. PLC automatic control
2. Smooth operation, low noise, and high efficiency.
3. The machine includes five series with 15 moulds and the max. Width can reaches 4.3m.
Description

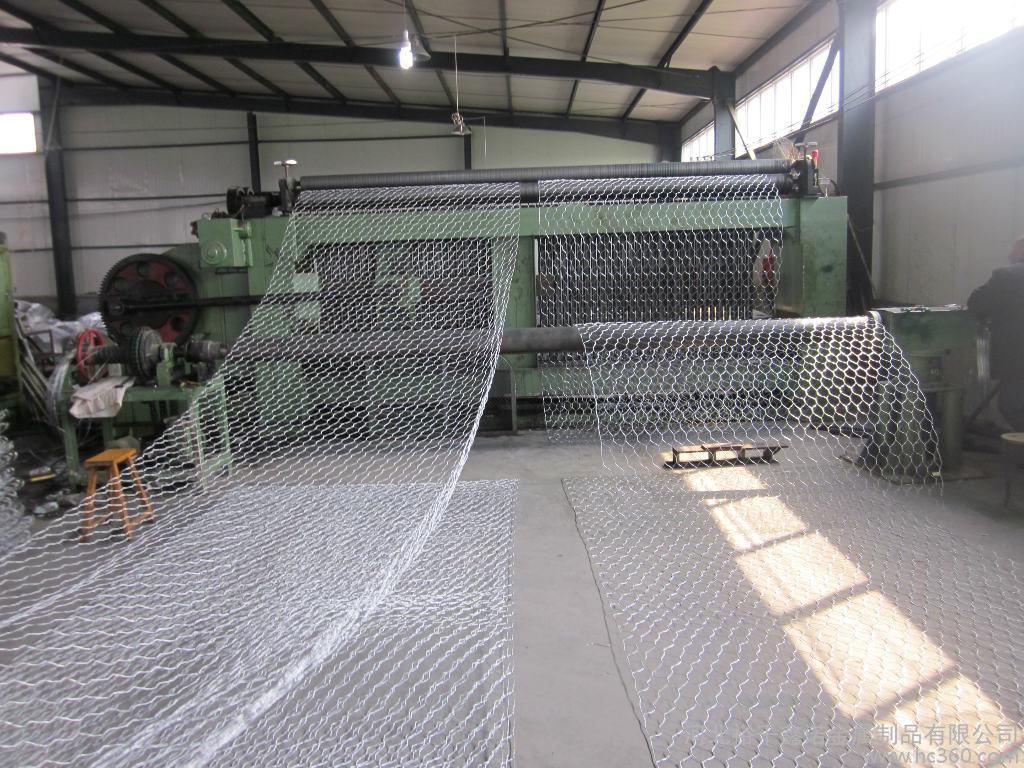

1. Gabion mesh machine (heavy duty hexagonal wire mesh machine) produces hexagonal wire mesh. 2. Our " gabion mesh machine adopts merits of products a home and abroad.
3. Specific twists type of gabion mesh machine can be customized, for example, twists selection are double twists (3 cross), three twist (5 cross), or double twists sharing with three twists (3 cross sharing with 5 cross).
Accessories
1. Spiral coil machine
2. Wire straightening machine
3. Winding mesh machine.
Technical parameter
|
Model |
Mesh Size |
Max. Width |
Wire Diameter |
Twisted number
|
Main Drive Shaft Speed |
Motor Capacity |
Theoretical Speed |
|
mm |
mm |
mm |
r/min |
KW |
m/h |
||
|
LNWL23-60-2 |
60×80 |
2300 |
1.6-3.0 |
3 |
25
|
11
|
165 |
|
LNWL23-80-2 |
80×100 |
1.6-3.0 |
195 |
||||
|
LNWL23-100-2 |
100×120 |
1.6-3.5 |
225 |
||||
|
LNWL23-1200-2 |
120×150 |
1.6-3.2 |
20 |
255 |
|||
|
LNWL33-60-2 |
60×80 |
3300 |
1.6-2.8 |
25 |
15 |
165 |
|
|
LNWL33-80-2 |
80×100 |
1.6-3.0 |
195 |
||||
|
LNWL33-100-2 |
100×120 |
1.6-3.2 |
225 |
||||
|
LNWL33-120-2 |
120×150 |
1.6-3.5 |
20 |
255 |
|||
|
LNWL43-60-2 |
60×80 |
4300 |
1.6-2.8 |
25 |
22 |
165 |
|
|
LNWL43-80-2 |
80×100 |
1.6-3.0 |
195 |
||||
|
LNWL43-100-2 |
100×120 |
1.6-3.0 |
225 |
||||
|
LNWL43-120-2 |
120×150 |
1.6-3.2 |
20 |
255 |
|||
|
LNWL43-60-3 |
60×80 |
4300 |
1.6-2.8 |
5 |
25 |
22 |
165 |
|
LNWL43-80-3 |
80×100 |
1.6-3.0 |
195 |
||||
|
LNWL43-100-3 |
100×120 |
1.6-3.0 |
225 |
||||
|
LNWL43-120-3 |
120×150 |
1.6-3.2 |
20 |
255 |
Application
1. used in petroleum, construction, farming, chemical industry, heating pipes and other pipe parcel wire mesh;
2. used for fences of residential and landscape protection, etc.

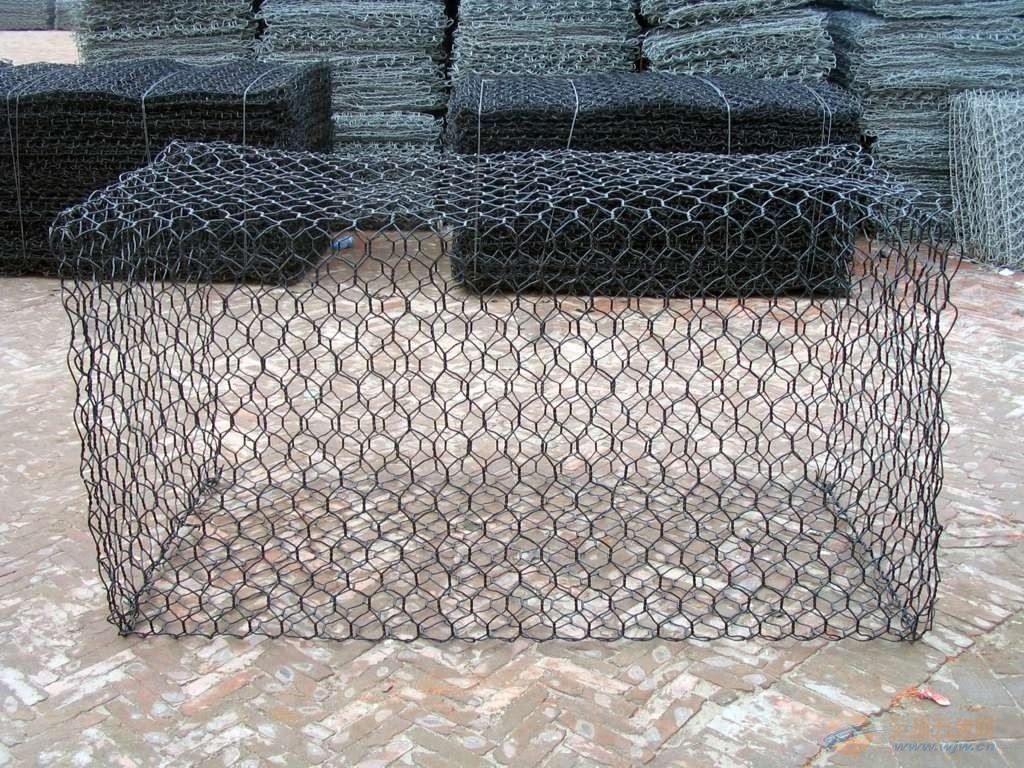

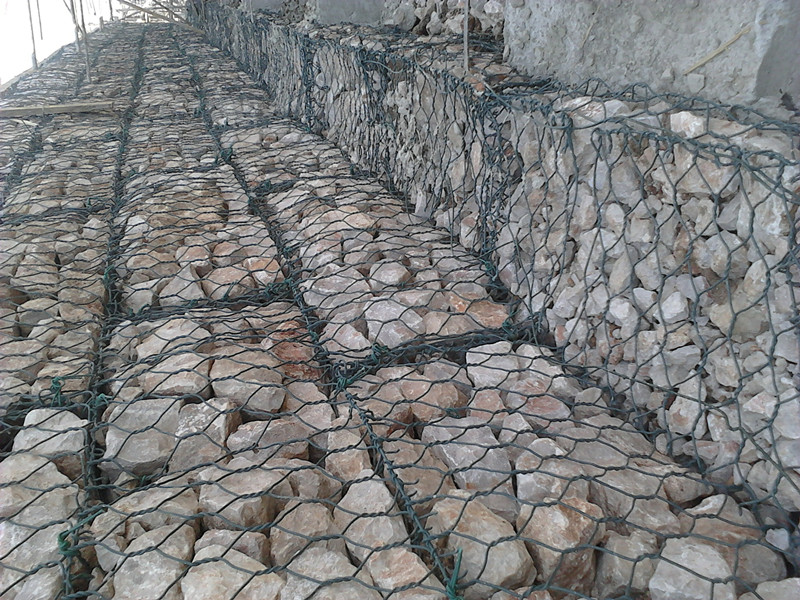

3. used to make stone wire mesh cages to protect seawall, hillside, road, bridge, reservoirs, and other civil engineering.
Our Services
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port).
2. Customized machine.
3. OEM support.
4. Fast delivery.
5. Moderate price.
6. Door to Door service or 24-hour email service.
