l212 Kudo Dual 12 Inch 3 Way La Line Array for Large-Scale Outdoor Performance SafeBuy Supplier Member

FOB Price: 100.00 - 1,000.00 USD/Piece
Supply Ability: 1,000 Piece/Pieces per Month
Shipping: by sea shipping or air shipping
Payment Terms: T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: high quality carton box or flightcase

Quick Details

  • Model Number: LA-28
  • Brand Name: T.I Reward

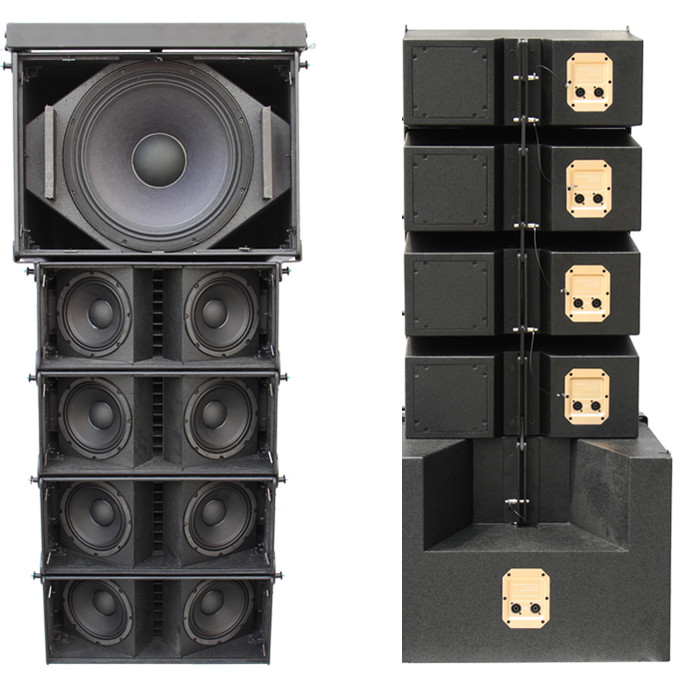

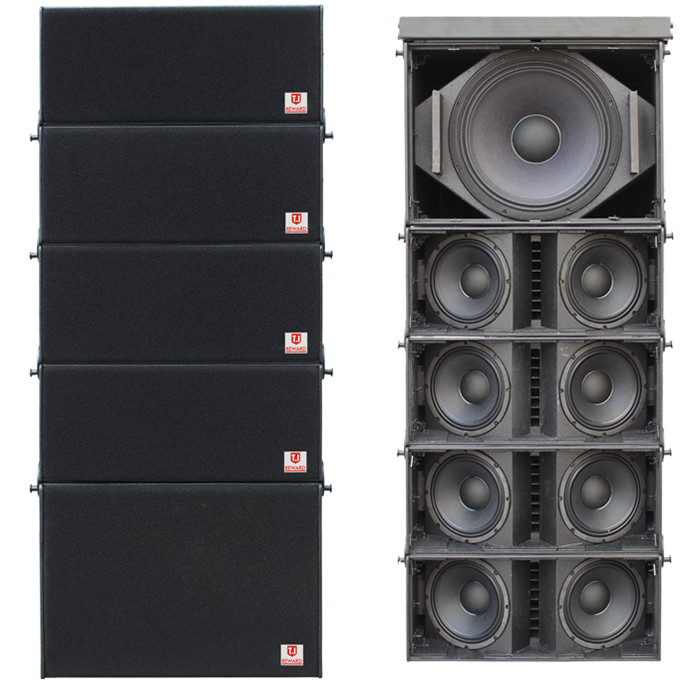

L212 kudo dual 12 inch 3 way la line array for largescale outdoor performance

LA-28 is a two-way line array module with high efficiency which specially designed for medium and small-scale performance.

Two 8" neodymium magnet LF loudspeakers with 3" voice coil.

The modules are designed to be used in multiples with a minimal configuration of three. Up to 20 units can be arrayed to achieve extreme high levels needed for larger venues.

L212 kudo dual 12 inch 3 way la line array for largescale outdoor performance

L212 kudo dual 12 inch 3 way la line array for largescale outdoor performance

- Medium scale venues (concert hall, auditorium, theatre, clubs), touring show, rental market

- Drivers: 2x8" LF; 1x3" HF

Frequency Response 70Hz20kHz ± 3dB

Power handling LF 500W (RMS) 1000W (PEAK)

HF 100W (RMS) 200W (PEAK)

Sensitivity LF 97dB(1W@1M)

HF 108dB(1W@1M)

Max@S. P. L. LF 124dB(PEAK/1M)

HF 128dB(PEAK/1M)

LF section 2×8"(210mm) woofer

Nominal impedance 8ohm

HF section 3"compression driver

Nominal impedance 8ohm

Dispersion 110°H×10°V

Speaker cables LF 1(+)1(-) HF 2(+)2(-)

Input connectors 2×NL4MP speakon

Dimensions 580×260×430mm(W×H×D)

Package dimensions 650×330×500mm/0.11cbm

Enclosure Plywood

Net weight 23kg

Gross weight 26kg Company introduction

T. I Reward Audio CO., LTD is a global designer, manufacturer and distributor of high quality pro audio equipment, our production line including indoor outdoor line array speaker, pa speaker, pro subwoofer, monitor speaker, power amplifier, processor and wireless microphones. OEM and customized service is well provided for our customers.

T. I Reward Audio with the highest lever and most luxury raw material in the world, and offer to clients with the normal Chinese price.

PA Audio Amplifier Box Speaker Amplifier
1. Pure Iron System, it's the main part of the speaker driver units, such as pure iron, titanium, using electrical pure iron, high permeability, is the industry's most extravagant speaker material, compared to the speaker than ordinary iron sheet used 80 times to 100 times, particularly low temperature, characterized by a continuous sound particularly good, there is no magnetic circuit eddy current status, linear supple, not in haste.

2. Conical Wood horn, wood horn made from a more high-quality Russian birch plywood in high temperature and pressure, and unit-specific parameters of our own research and development agreement, wooden horn production cost is 5 times that of conventional plastic horn, professional PA system HI FI level production, is characterized by not with vibration woofer cavity interference sound particularly clear, detailed, this wooden horn sound reduction is particularly high.
PA Audio Amplifier Box Speaker Amplifier

3. Speaker research and production, our company has independent R & D capability of the speaker, from raw material procurement until the operating instructions issued to the final speaker line QA QC made by our technical team tracking execution. With the development and production of world-class speaker level.

For example, we strictly control the voice coil wire purity level, especially in the voice coil made of glue when we certified by the EU more than 220 degrees Celsius, 100 hours of power test, can provide relevant information parameters. Our usual cone of high- quality British UKN cone, he can better restore and release sound. We use a magnet Y35 quality international standards. T Washer We use top electrical iron, 900 degrees C after 8 hours-temperature annealing processing, so that the carbon content close to zero. Our Speaker Box frame belongs to our specially treated surface temperature electrostatic spray, and balanced treatment, such as selvedge position plucked location, location washer, we use CNC lathe finishing to ensure that the speaker is not at work There is an equilibrium problem. We open with a mold clamping, so that the speaker does not work exist selvage shedding problem.

PA Audio Amplifier Box Speaker Amplifier

We focus on new audio technology, fashion appearance, market flexible structure research. Our PA products in pursuit of high technology, fashion, plasticity characteristics.

Over 20 years of technical experience of our sound engineers are the foremost guarantee to all of our operation. Our electro-acoustic professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs had built up solid foundation to our quality as well as to our success in the industry.

T. I Reward audio products ideal for rental market, installation market for events, multimedia, musicals, concert halls, theatres, church and other application …We never stop the music. We can easily meet all requirements for clients in quality, price and box design. Browse & our products & contact us for professional help and advice .
