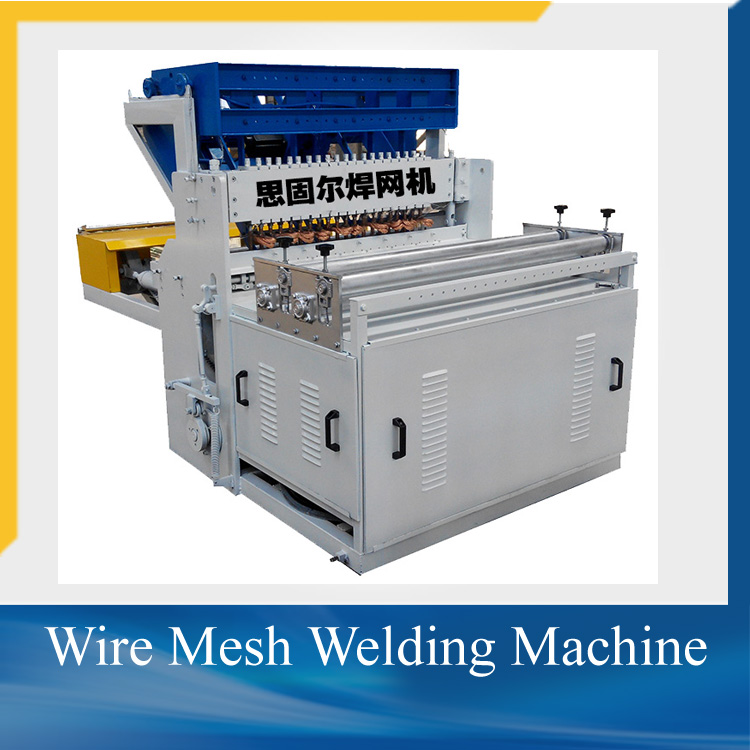

Mesh Welding Machine for Roll and Panels

FOB Price:	15,000.00 - 35,000.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	25days after receive the advance payment
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Main machine is in platic bags and control box use wooden boxes

Quick Details

Type: Other
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Usage: Wire Mesh panel for highway,railway,garden,airpot and prisons etc.
Weight: 3.5tons
Dimensions: 2.8x3.2x1.8
Rated Capacity: 100KVAx6
Voltage: 380v
Model Number: SK-ME-2500
Brand Name: SECURE-NET
Welding diameter: 2.5-5.0MM
Hole size: 50-200mm
Welding width: 2500mm
Welding spot: 51
welding speed: 45times/min
machine size: 2.8x3.2x1.8m
machine weight: 3000kgs
cross wire type: straight&cut wire
line wire type: coil wire
motor: 4kw

Specifications

Welded roll wire mesh making machine

1. This machine adopts electrical synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate, it is stable, firm welded spot is firm and without weled tracks.
2. Cross wires is pre-straight and pre-cut wire.
3. Line wire are fed from coils.
4. . Elastic tension link pushing system, the mesh hole and mesh aperture can adjust randomly.
5. This operation is accurate, it has stable function, firm welded point and without welded tracks, not only welding speed is fast but also it is easy to to learn and operate.

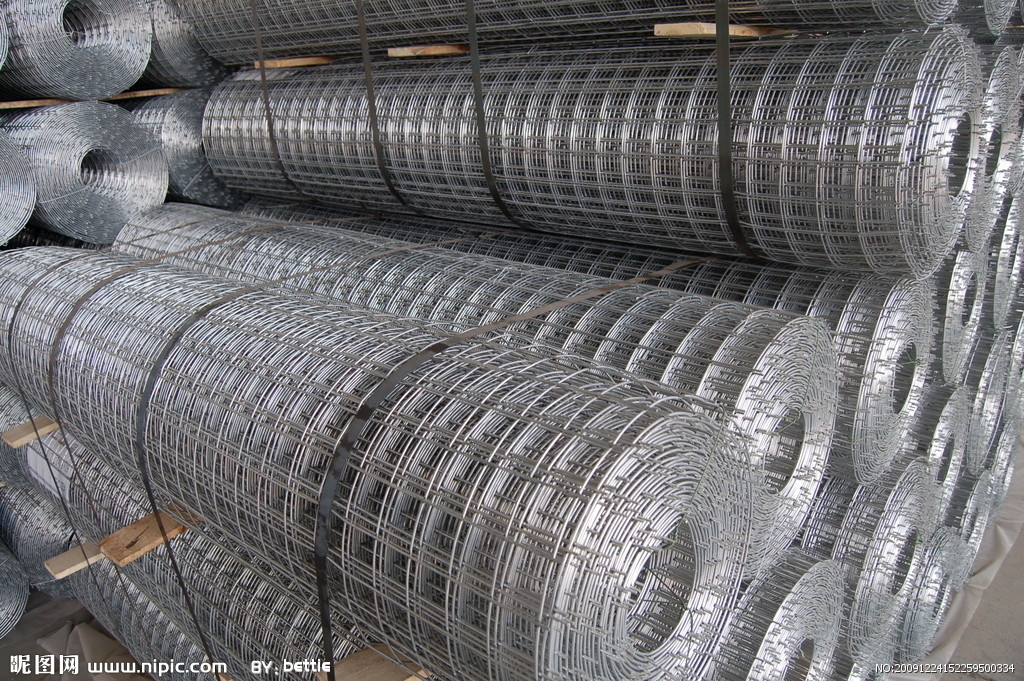

6. The finished product can be in coil or in panel.

Welding Wire Dia.	2.5-5.0mm	Line Wire Type	Wire Coiling
Welding Aperture	50x50-200x200mm	Cross Wire Type	Straight Cut Wire
Welding Width	2500mm	Power Supply	AC380V 50HZ
Welding Speed	45 times/min	Rated Power	KVA
Welding Spot	48	Machine Weight	3.5T
Maximum Size	2.8x3.2x1.8m	Used	Building Wire Mesh
