Metal Floor Deck Roll Forming Machine For Closed Type
| FOB Price: | 60,000.00 - 65,000.00 USD/Set |
|---|---|
| Supply Ability: | 60 Set/Sets per Quarter |
| Shipping: | Shanghai Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Nude Packaging |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: Customized
- Brand Name: Believe Industry
Specifications
Description:

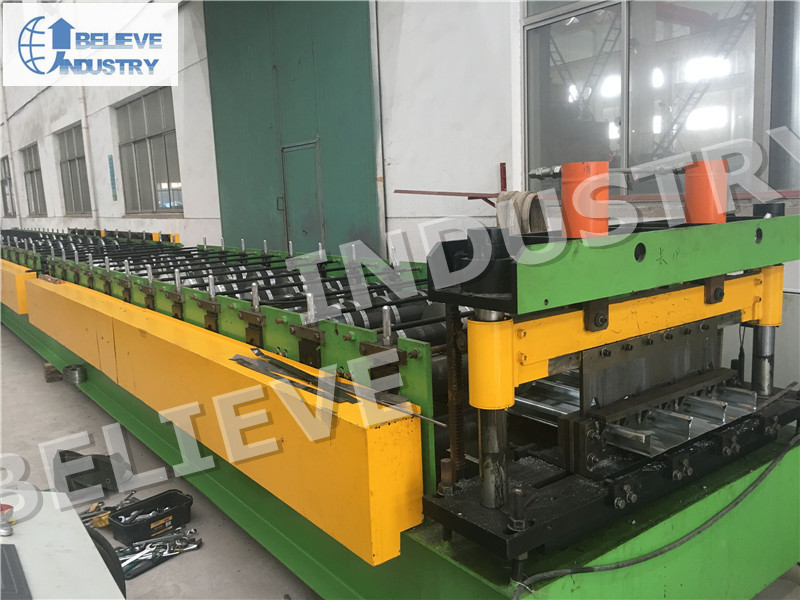

This roll forming machine for closed type metal floor deck are used to producing floor decking plates. We manufacture machines according to the specific requirements by our customers. Also we design new profile drawings according to specific products. This machine consists of decoiler, feeding and guilding device, roll forming parts, cutting device, hydraulic station, electric control system and collecting table, etc. Controlled by PLC, it is easy to be operated and maintained by workers. And all famous brand electric control parts ensures the perfect and stable performance of the machine.
Main Specifications:
? Coil Material Information
1. Thickness: 0.8-1.2mmmm
2. Feeding Width: Custom-made
3. Yield Strength: G550Mpa
4. Applicable Material: Galvanized Steel, Color Steel, Stainless Steel
? 5T Hydraulic Uncoiler
1. Maximum Capacity: 5T
2. Coil Width: Maximum 1500mm
3. Uncoiler I.D.: 580mm
4. Uncoiler O.D.: 1350mm
? Roll Forming Machine:
1. Forming Station: 24-32 Stations
2. Roller Material: GCr15 Steel, HRC 58-62
3. Diameter of Shaft: 120mm
4. Shaft Material: High Grade 45# Steel
5. Drive Type: Chain Wheel Drive
6. Main Power: 11KW*2
7. Forming Speed: 12-18m/min
? Cutting Device:
1. Cutting Type: Hydraulic Cutting
2. Material of Cutting Blade: Cr12MOV
3. Cutting Tolerance: 10m+/-0.5mm
? Electrical Control System:
1. PLC: Panasonic Brand
2. Encoder: Ormon Brand
3. Frequency Converter: Yaskawa Brand
4. Touch Screen: MCGS
5. Operation Type: Touch Screen and Button
? Product Collecting Table:
1. Type: Simple non-powered
2. Function: To support finished products
