Thermal conductive insulating electronic ceramic substrate sheet
| FOB Price: | 0.03 - 3.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Week |
| Shipping: | 20~25days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | OPP bag /Carton |
Quick Details
- Rated Voltage: 200v
- Application: High Temperature
- Material: Composite Polymer
- Type: Insulation Sheet
- Model Number: TO-220/TO-3P/TO-264/TO-247
- Brand Name: JRFT
- Thermal conductivity: 20W/m.k
Specifications
Thermal conductive insulating electronic ceramic substrate sheet

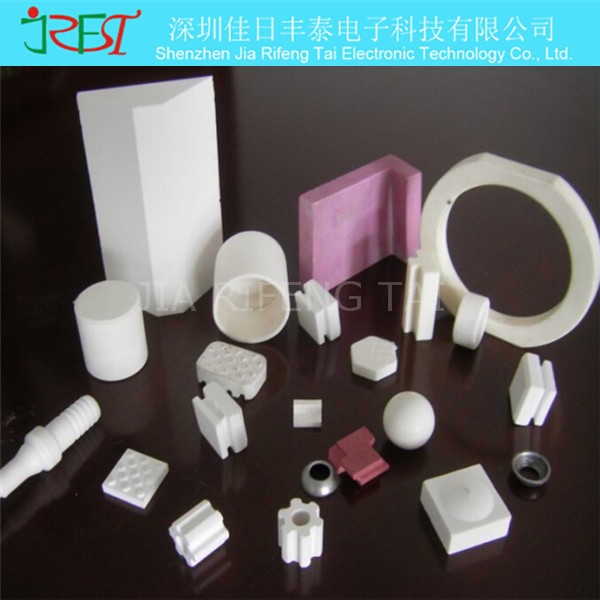

Alumina ceramic is Al2O3 as main raw material, in the rare metal oxide as flux, special ceramic sheets after one thousand degrees high temperature roasting into.
Alumina ceramic Al2O3 content is high, the structure is relatively compact, with special properties, it is known as the special ceramics. The Al2O3 ceramic materials are densely arranged six party structure for oxygen ion and aluminum ion, filled in 2/3 with eight sides in the gap, which is the same with natural corundum stable alpha Al2O3 structure, so the ceramics with high melting point, high hardness, good wear - resistance.
Feature:
1.Light weight
2.High hardness
3.Wide scope of application
4.Extremely abrasive resistance performance
Performance
Physical properties: high insulation resistance, breakdown, high temperature resistance, abrasion resistance, high strength (three meters altitude fall not broken)
Fire rating: USA military standard MIL-F-51058 (the highest level)
Typical application: strong current, voltage, strong high temperature parts, IC MOS, IGBT power tube heat pipe insulation
Certification: natural organic matter, the European Union, exempt products without certification materials
Thermal conductivity: high temperature: 1600 degrees below the ideal heat insulating material of high voltage and high frequency equipment
Application
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength
Product specifications:
Regular size and models :
TO-220, 1mm*13mm*19mm
TO - 3P, 1mm*20mm*25mm
TO-264, 1mm*22mm*28mm
TO-247, 0.635mm*17mm*22mm
Other non-standard products , please contact us to provide drawings of your products.
Zirconia /alumina / aluminum nitride can be customized !
