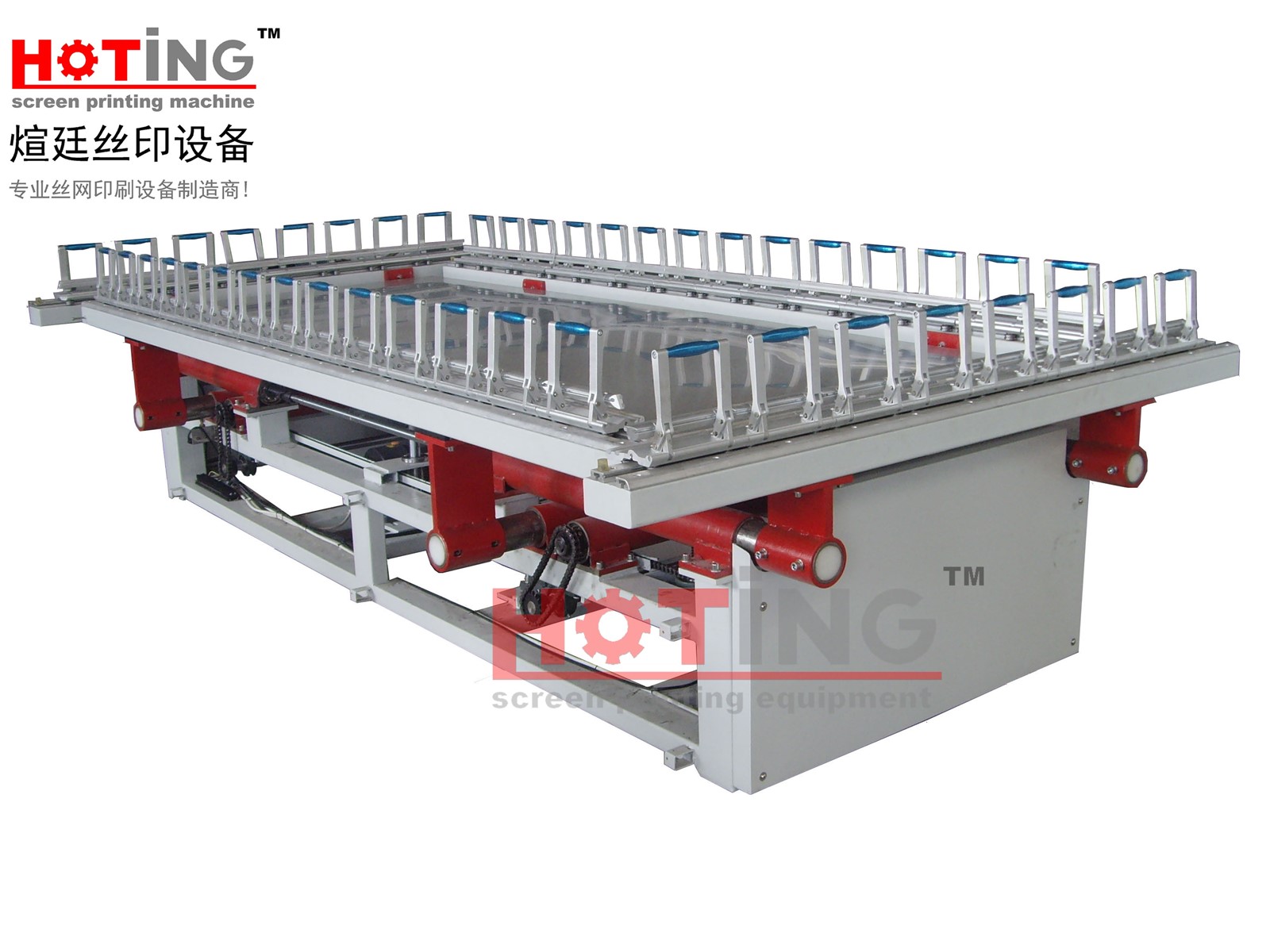

Electrical high precision screen stretching machine

FOB Price:	5,000.00 - 15,000.00 USD/Unit
Supply Ability:	10 Unit/Units per Month
Shipping:	FOB Shanghai by sea shipping at 15days delivery time
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Pallet and wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 2 year
Certification: ISO9001, SGS
Power(W): 4KW
Voltage: 380(220)V X 3p
Model Number: TEM-1030
Brand Name: Hoting
Automatic Grade: Semi-Automatic
Type: Plate stretching
Condition: New

Specifications

Application Scope:

This product is suitable for different sizes of screen stretching, can stretch one or more straight and inclined screens, no need to setting work platforms, operating convenient and flexible. Adapt to different requirements of material mesh tension, tension stepless adjustable, particularly suitable for high-precision and high tension screen plate making.

Features:
1. The apparatus body 6.0MM steel using a hot plate bending shape, so that machine appliance operating performance of high strength, not easily deformed bend, to withstand high stretching force, up to 45N tension and no deformation.
2. The use of high-strength screw heat treatment, gear, rack rails make the traveling guide, changed the traditional chain drive way, with imported motor, more stable operation; safety switch, safe and reliable.
3. Use a single clamp balanced layering one fixture to avoid the key issues that arise when a lot of stretching (such as: mesh gap, tarpaulin mesh not fix folders, when stretching force, clamps with variation error, etc.).
4. The device clamps pressing force of 3 times or more than the conventional clamps, each clamp pressure can reach 650kg / cm2 pressure ( as normal is 200kg) and can be easily adjusted.
5. The machine is equipped with four sides independent gear motors, electric control, symmetric stretch, using the speed regulator, the machine speed can be easily adjusted.
6. The device with rotary and touch switch, easy and convenient manipulation, even a novice can manipulate quickly. Digital control throughout the stretching process, effectively guarantee the stability of stretching tension.
7. Attached with gauze roll with retractable mounting bracket, no need precut stretching mesh, saving time and labor, one time can simultaneously take control multiple stencils.

Parameters:

Model		TEM-1020	TEM-1030
Working table size		1000 X 2000mm	1000 X 3000mm
Maximum screen size		1000 X 1000mm X 2EA	1000 X 1000mm X 3EA
Power	X	1 / 2Hp X 1 / 30
	Y	1 / 2Hp X 1 / 30
	UP, Down	1 / 2Hp X 1 / 30
Tension Length	X	0 - 1000mm
	Y	0 - 500mm
	UP, Down	0 - 120mm
Power supply		380(220)V X 3p X 4kW
★ Customized model and size can be made for requirement.
