Shanghai Hoting Screen Printing Equipment Co., Ltd.
China Manufacturer with main products: Screen Printing Machine, Screen Printer, Screen Coating Machine, Emulsion Coating Machine, Screen Stretching Machine, Exposure Unit, Screen... |

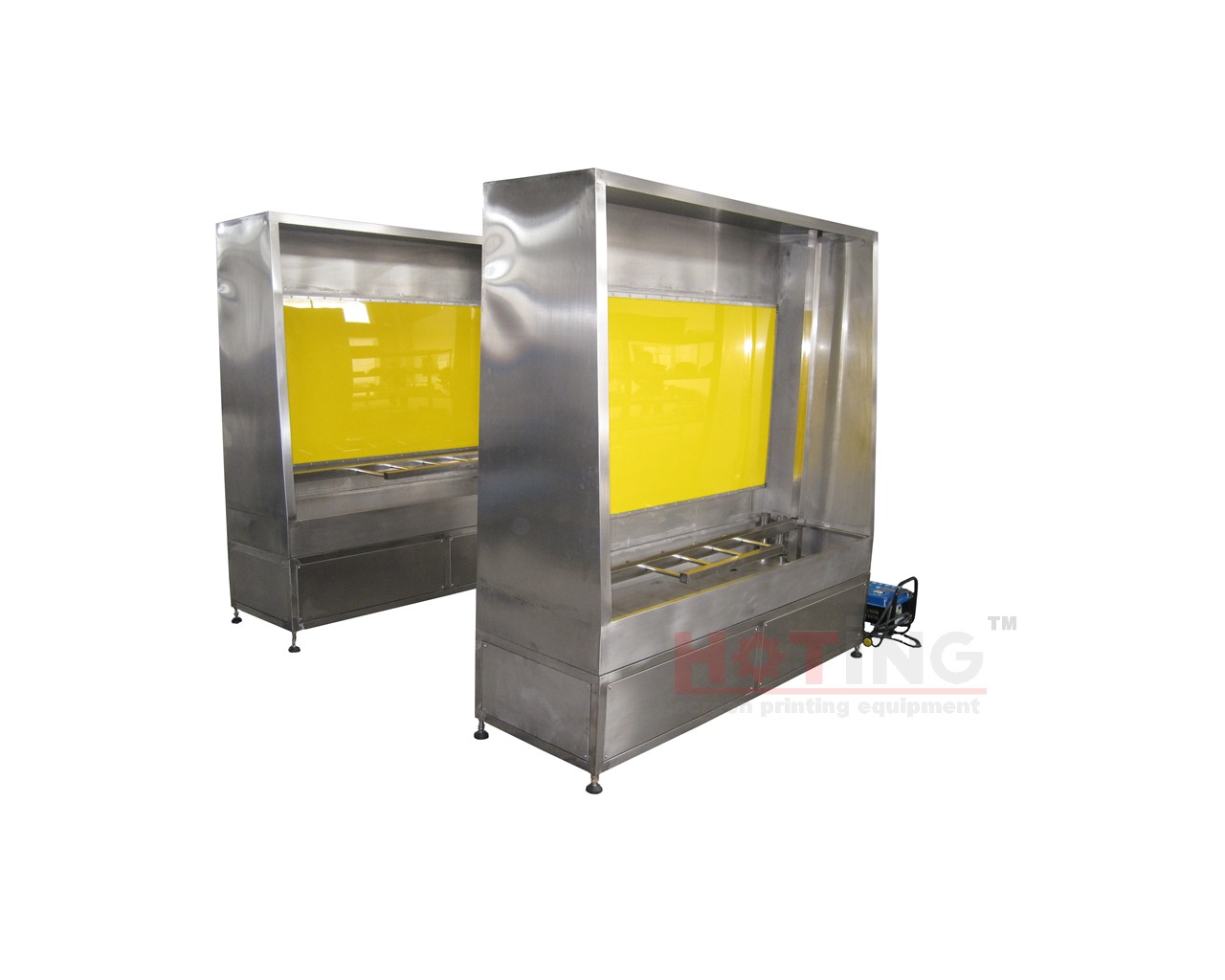

Manual screen washout booth with back light
| FOB Price: | 1,200.00 - 2,500.00 USD/Unit |
|---|---|
| Supply Ability: | 30 Unit/Units per Month |
| Shipping: | FOB Shanghai by sea shipping at 15days delivery time |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Pallet and wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2 year
- Certification: ISO9001, SGS
- Weight: 180KG
- Dimension(L*W*H): 1500 X 800 X 1870mm
- Power(W): 1KW
- Voltage: 110,220,380V X 1p
- Model Number: WM-1010
- Brand Name: Hoting
- Automatic Grade: Manually
- Type: screen washer
- Condition: New
Specifications
Application scope:
This series suitable for screen emulsion washing and developing
Specification:
1. 304 stainless steel make the machine anti dust and anti corrosion
2. Back light system provides enough light to check if the washout effect is good on the screen
3. High pressure pump and spray gun is matched with this machine
4. Assembled water tank at its bottom
5. Easy to move and operation
Parameter:
|
Model |
WM-1010 |
|
Max frame size |
1100 X 1100mm |
|
Water pump |
1 Hp High Pressure |
|
Power |
220(380)V X 1p X 1kW |
|
Dimension(W X D X H) |
1500 X 800 X 1870mm |
|
★ Special specification can be made for requirement |
|
