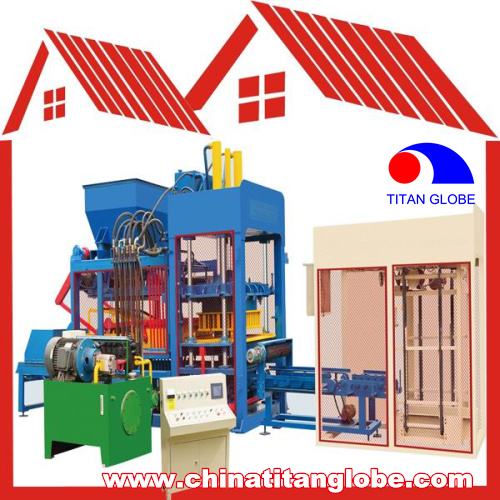

QTJ10-15 Full Automatic Brick Making Machinery

Specifications

QT10-15 Full Automatic China Concrete Block Making Machine / Brick Molding Machine Brickyard

I. For this machine, PLC intelligent control system imported is used, the hydraulic elements from German and Taiwan are adopted and its technical parameters can be adjusted at any time. This machine has the functions of fault alarming and fault position displaying. And it is easy to learn how to operate and maintain.
II. This machine can quickly make 360 degree rotation. When a wrong operating happens, it can exactly show the user what fault happens and how to deal with. With forced material distributing, low-frequency material feeding and high-frequency vibrating, the problem in material distributing has been thoroughly solved for this machine. With this machine, all kinds of products can be produced with ideal forming results and high density and strength.

III. The body of the machine is made of heavy-duty steel structure with split style in design so that the service life can be prolonged and operating performance stable and reliable; Its intermediate small hydraulic cylinder can make the upper pressing mould head rising up in high speed and its big hydraulic cylinders on the both sides can increase the pressure force so that the forming speed for the products is quicker and the pressure better.
IV. Only by changing its forming moulds, baking-free hollow blocks, road shoulder bricks, revetment bricks, river way bank antiskid bricks and Square bricks can be produced. So, it is a multi-purpose machine.
V. It is equipped with specialized stacker. So, automatic production of large mass quantity can be achieved easily.

1.Main Technical  Parameters

Production Quantity: 390X190X190mm    10 PCS/Mould

                                  240X115X90mm      24 PCS/Mould

                                  240X115X52mm      51PCS/Mould

Host Machine Power:48Kw

Forming Cycle:15-20S

Total Weight:11T

Shift Capacity:18000PCS Hollow Bricks,42000PCS Standard Bricks,110000PCS Cellular Bricks

Overall Size:8800X2480X2980mm

Carriage Size:1140X860X35mm

Executive Standards:GB/T8533-2008

Raw Materials:Concrete,Crushed Stone,Snad,Cement,Dust And Coal Fly Ash,Cinder,Slag,Gangue,Gravel,Perlite And Other Industrial Wastes.

2. Features Of QT10-15 Full Automatic China Concrete Block Making Machine / Brick Molding Machine Brickyard

1). PLC automatic control system, which includes safety logic control and fault diagnosis system

2). Excellent control system--Extensive imported original parts and hydraulic components with high dynamic performance proportional valve to control the key part of the action accurately.

3). Four-oriented approach-- guarantees the accurate movement of the pressure head and the mold
4). Consistency--The technic of the integral use of brick making machine , electric and fluid realize the consistency of every cycle.
5). High efficiency--- Table and mold vibration, hydraulic compression and travel-oriented feeding device shorten cycle times and improve production.
6). Multi usage—different kinds of bricks can be produced through replacing mold, such as hollow brocks,curbs, brick pavers and planting grass brick,slop brick and so on.
7). Color road bricks-- can be produced with fabric devices by  refractory brick machine.

3.Other Informations Of QT10-15 Full Automatic China Concrete Block Making Machine / Brick Molding Machine Brickyard

1). Area: Workshop Area: 150-200m2, All Factory Area 2000m2, Bigger Is Better.

2). Workers :3-4

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About  Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:90-100T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.
