Vickol Group Limited
China Manufacturer with main products: Peristaltic Pump, Lab Syringe Pump, Filling System, Pump Oem, Pump Head, Fraction Collector, PH Meter |

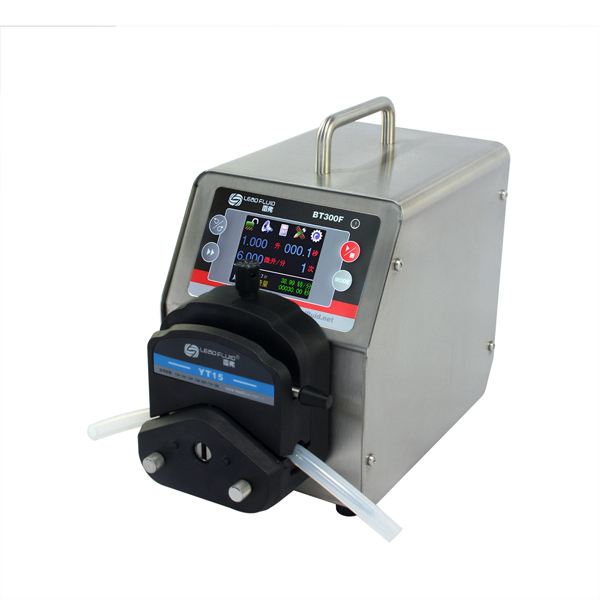

intelligent dispensing peristaltic pump (flow rate: 0.06-1340ml/min)
| FOB Price: | 700.00 - 1,000.00 USD/Set |
|---|---|
| Shipping: | within 3days after get payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | paper case |
Quick Details
- Application: Metering
- Pressure: Low Pressure
- Standard or Nonstandard: Standard
- Power: Electric
- Usage: Water
- Structure: Gear Pump
- Theory: Rotary Pump
- Model Number: BT300F
- Brand Name: LEADFLUID
Specifications
Product introduction
BT300F Intelligent dispensing peristaltic pump flow range:0.006-1340ml/min.It adopts color LCD touch screen with intuitive and clear displaying interface, easy to operate. Mainly used for accurate measurement and distribution of fluid. If need high accuracy when dispensing, volume dispensing mode is available; if need high producing efficiency, time dispensing mode is more convenient; if want to separate fluid to number of equal parts, copy dispensing mode would be best. When working on flow mode, it is as same as intelligent flow peristaltic pump. The pump adopts intelligent temperature-control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
|
? Function and Feature |
? Technical parameters
? Technical parameters: BT300F
? Flow range(mL/min): 0.006-1340
? Speed range(rpm): 0.1-350
? Speed resolution(rpm): 0.1
? Flow accuracy: <0.5%
? Power supply: AC220V ± 10% 50Hz/60Hz (standard ) ;
AC110± 10% 50Hz/60Hz (optional)
? Power consumption: <50W
? External control: Input level 5V,12V(standard),24V(optional)
External control analog 0-5v(standard),0-10v,4-20mA(optional)
? Communication interface: RS485 communication interface, MODBUS protocol is available.
? Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
? IP grade: IP31
? Dimensions(LxWxH): 223x150x195(mm)
? Weight: 4.9kg
