Hollow Brick Making Machine

FOB Price:	5,000.00 - 100,000.00 USD/Set
Supply Ability:	3,000 Set/Sets per Year
Shipping:	Qingdao Port,China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Normal Exporting Packages

Quick Details

After-sales Service Provided: No overseas service provided
Warranty: One Year
Certification: BV,ISO
Dimension(L*W*H): 3200X1900X2300mm
Power: 16.8Kw
Voltage: 380V/220V
Model Number: QTJ4-30B
Brand Name: Titan Globe
Capacity: 30Sets/Month
Automatic: Semi-Automatic
Method: Hydraulic Pressure
Processing: Brick Molding Machine
Brick Raw Material: Concrete,Cement,Fly Ash,Sand etc
Type: Hollow Block Making Machine
Condition: New
Color: Optional

Specifications

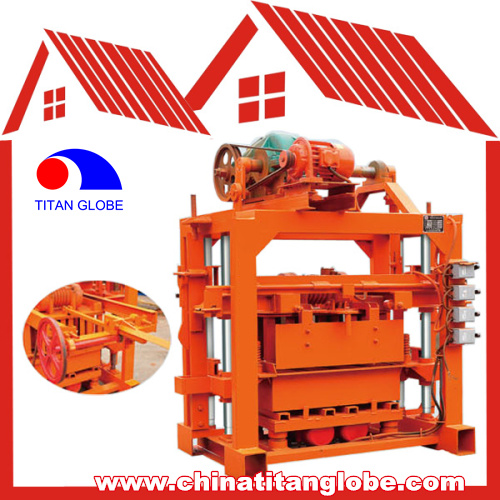

QTJ4-30B Semi-Automatic Burning-Free Hollow Brick Making Machine

QTJ4-30B block machine is one kind of semi-automatic block forming machine, which is developed and refined on the basis of Model 25 Automatic Block Forming Machine. On this machine, the directional, vertical vibrating device is adopted. So, it is quick in block forming and simple in operating, and the products made by it are perfect in density and excellent in strength.

1.Main Technical Parameters

Production Quantity:390X190X190mm 4 PCS/Mould

390X240X190mm 3 PCS/Mould

225X115X53mm 26PCS/Mould

Host Machine Power:13Kw

Forming Cycle:30-35S

Total Weight:3.0T

Shift Capacity:3000PCS Hollow Bricks,18000PCS Standard Bricks

Overall Size:3600X1700X2650mm

Carriage Size:850X550X30mm

Executive Standards:GB/T8533-2008

Raw Materials:Concrete,Crushed Stone,Snad,Cement,Dust And Coal Fly Ash,Cinder,Slag,Gangue,Gravel,Perlite And Other Industrial Wastes.

2. Features Of QTJ4-30B Semi-Automatic Burning-Free Hollow Brick Making Machine

1).QTJ4-30B Block Forming Machine is a modified model through several times of renovation,for example,changing double shafts into four shafts and being coated with hard cadmium,So,it is good in stability and perfect in wearing capacity.

2).For a larger vibrating box is adopted for it,the blocks producd with vertical vibration are with good compressive stress and high dnsity.

3.Working Pressure Of QTJ4-30B Semi-Automatic Burning-Free Hollow Brick Making Machine

Working Air Pressure Can Be 300Mpa,Forming Pressure Can Be 130T,Vibraton Frequency Is 2880Hz,Maximum Pressure Is 120Kn.

4.Other Informations Of QTJ4-30B Semi-Automatic Burning-Free Hollow Brick Making Machine

1). Area: Workshop Area: 50-60m2, All Factory Area 1000m2, Bigger Is Better.

2). Workers :2-3

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:50-60T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.
