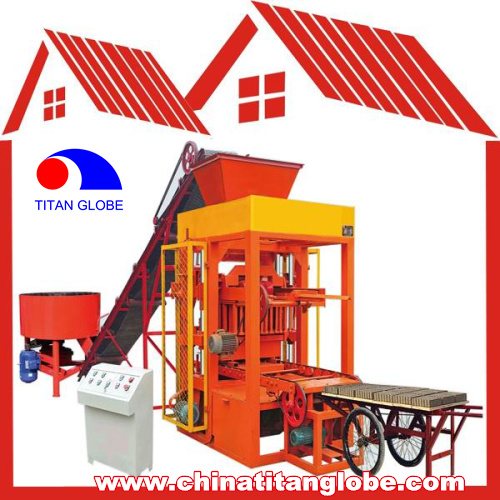

Cement Block Machine Price QTJ4-30C Concrete Block Making Machine

FOB Price:	5,000.00 - 100,000.00 USD/Set
Supply Ability:	3,000 Set/Sets per Year
Shipping:	Qingdao Port,China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Normal Exporting Packages

Quick Details

After-sales Service Provided: No overseas service provided
Warranty: One Year
Certification: BV,ISO
Dimension(L*W*H): 3200X1900X2300mm
Power: 16.8Kw
Voltage: 380V/220V
Model Number: QTJ4-30C
Brand Name: Titan Globe
Capacity: 30Sets/Month
Automatic: Semi-Automatic
Method: Hydraulic Pressure
Processing: Brick Molding Machine
Brick Raw Material: Concrete,Cement,Fly Ash,Sand etc
Type: Hollow Block Making Machine
Condition: New
Color: Optional

Specifications

China Cement Block Machine Price QTJ4-30C Concrete Block Making Machine

QTJ4-30B block machine is one kind of semi-automatic block forming machine, which is developed and refined on the basis of Model 25 Automatic Block Forming Machine. On this machine, the directional, vertical vibrating device is adopted. So, it is quick in block forming and simple in operating, and the products made by it are perfect in density and excellent in strength.

1.Main Technical Parameters

Production Quantity:390X190X190mm 4 PCS/Mould

390X240X190mm 3 PCS/Mould

225X115X53mm 26PCS/Mould

Host Machine Power:13.5Kw

Forming Cycle:30S

Total Weight:3.0T

Shift Capacity:2000-3000PCS Hollow Bricks,20000PCS Standard Bricks

Overall Size:3600X1730X2580mm

Carriage Size:850X550X30mm

Executive Standards:GB/T8533-2008

Raw Materials:Concrete,Crushed Stone,Snad,Cement,Dust And Coal Fly Ash,Cinder,Slag,Gangue,Gravel,Perlite And Other Industrial Wastes.

2. Features Of China Cement Block Machine Price QTJ4-30C Concrete Block Making Machine

1).QTJ4-30C Fixed Pneumatic Duble Function Block Forming Machine for Hollow Block and Baking-Free Brick is one kind of semi-automatic mode, which is developped by our factory on the basis of absorbing the advantages of medium and small sized block forming machines in the past. For this machine, one modification is made on the basis of QTJ4-30B so that it is more firm in structure and more precise in positioning of mould and pressing die head.

2).Also, for this machine, the directional and vertical vibrationg by bottom mould and pressing and vibrating by upper die are adopted. So, the blocks produced with this machine are even in density and high in strength. For its material distributing system, it is modified into the pneumatic. For its pneumatic Pushing-Pulling mould mounting system, many digital travel limit switches are set up. The productivity is largely increased. (For this model, PC device can be equipped for full automatic block production)

3.Other Informations Of China Cement Block Machine Price QT4-30C Concrete Block Making Machine

1). Area: Workshop Area: 50-60m2, All Factory Area 1000m2, Bigger Is Better.

2). Workers :2-3

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:50-60T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.
