Home  >Products Catalog > Addressable Fire Alarm Control system > TC5102 Intelligent Rate of Rise & Fixed Temperature Heat Detector Heat Alarm Sensor

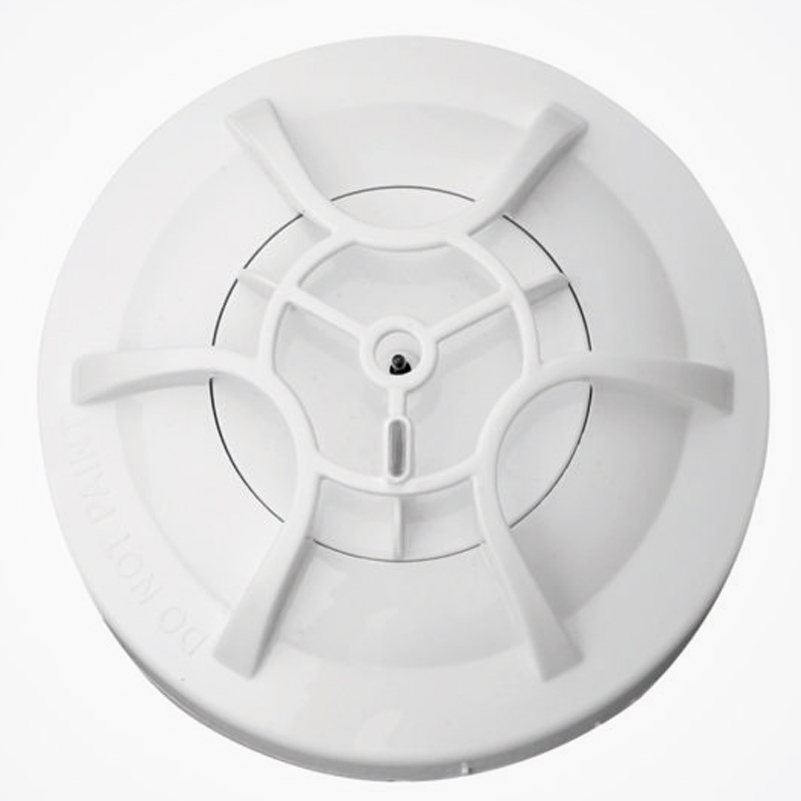

TC5102 Intelligent Rate of Rise & Fixed Temperature Heat Detector Heat Alarm Sensor

Supply Ability: 100,000 Piece(s) per Month
Shipping: FOBshenzhen
Payment Terms: T/T, Western Union, PayPal
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shenzhen in China
Packaging Details: netural packing

Quick Details

  • Brand Name: zc
  • Product name: Intelligent Heat Detector
  • Model Number: TC5102
  • Operating voltage: Signal bus voltage: loop 24V (16V~28V)
  • Programming method: Electronically programming
  • Monitoring area: Thespace height is lower than 8m: 20-30m2.
  • Wiring: Non-polarized signal 2-wire
  • Material and color: ABS; milky white
  • Ingress protection rating: IP33

Specifications

Skype firealarm87  /wechat 15220176087

1.
TC5102 Intelligent Rate of Rise & Fixed Temperature Heat Detector

Advanced Single-chip microcomputer technology

Non-polarized Two-wire

Electronically Addressed in field

Indoor garage, Kitchen, boiler room, generator room, drying room and other places

Technical Specifications

Operating voltage:

Loop 24V(16V28V)

Operating Current:

Standby current: 0.3mA

Alarm current: 0.8mA

Operating Environment:

Temperature: -10C+50C

Relative Humidity: 95%, non-condensing

Indicator: Red

Flashes when polling

Illuminates in alarm

Ingress Protection rating: IP33

Material and Color of enclosure: ABS; Milky white

Programming Method: Electronically programming

Code range: One Address is within 1255

Weight: about 110g

Mounting hole Distance: 60mm

Dimension: Diameter 100mm, Height 50mm (with base)
TC5102 Intelligent Rate of Rise Fixed Temperature Heat Detector Heat Alarm Sensor
