Hebei Weijia FRP Co., Ltd.
China Manufacturer with main products: FRP Pipe, FRP Tank, FRP Vessel, FRP Grating, Cable Tray, Molding Grids, Pull Extrusion Profile, Packed Tower |
10th
FRP Pipe Fitting Winding Machines
| FOB Price: | 5,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 3 Set/Sets per Month |
| Shipping: | by sea, 30-35 days after money collect |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | in pallets, or in bulk to container loads |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1
- Certification: ISO9001-2008
- Weight: 5000kgs
- Dimension(L*W*H): 6mx3mx5m
- Power(W): 1000W
- Voltage: 380V
- Model Number: WJ011
- Brand Name: WJ
- Production Capacity: 10,000
- Application: Drain Pipe
- Pipe Material: fiberglass reinforced plastic
- Type: Pipe Production Line
- Condition: New
- Low energy consumption: high productivity
- low maintenance and lower production cost: Easy and convenient operation - just input the data to the PC control system
- Good lamination design for quality products with excellent corrosion resistance: axial strength and anti-leakage property
Specifications

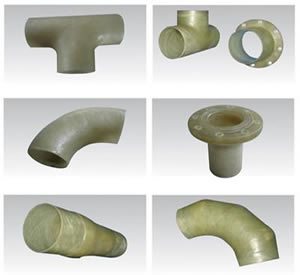

Pipe fitting winding machine is generally used for mass production of various composite fittings such as epoxy resin high pressure elbow and polyester resin elbow. These fittings are generally used to join straight composite pipes together in various projects.

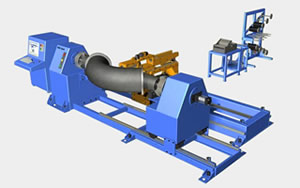

Pipe fitting winding machine adopts six servo motors and has 4-axis including spindle-mandrel rotating axis, horizontal carriage moving axis, cross-feed axis and eye rotating axis. This 4-axis system, controlled by CNC motion controller, is mainly used to complete the winding task of pipe fittings.
Highlight:
Various pipe fittings can be produced by this machine
- Adopting .
- Stable performance.
- High winding and operation precision.
- Low noise.
- Easy to control.
- Labor saving.
Details:
- Winding method: hoop winding or crossing winding.
- Pipe fitting diameter: 50mm - 300mm, 300mm - 600mm.
- Winding angle: 0° to 90°.
- Maximum speed of guide head: 25rpm.
- Swing angle of guide head: ≤ 90°.
- Maximum speed of carriage: 17m/min.
- Guide head: any rotating movement is allowed.
- Main engine power: 200V, 500Hz, 2kW.
- Custom designs and sizes are also welcomed.
