Fu Chuan Electrical & Mechanical Co., Ltd.
China Manufacturer with main products: High Speed Bunching Machine, )high Speed Annealing Tin Machine, High Temperature Extruder Line, )cable-Laying Machine, 1+6+12 High Speed... |

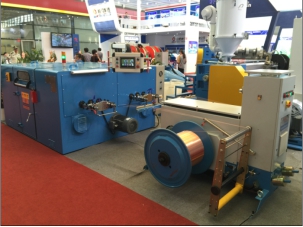

Fuchuan FC-FC-250D high speed wire bunching machine with high performance
| FOB Price: | 20,000.00 - 340,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Year |
| Shipping: | 60 day after confirm |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Container |
Quick Details
- FC: 250D
Specifications
FUCHUAN? Series high speed twins bunching machine
Japanese Technology , Product in China
Characteristics:
It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Patent No.: 201320522156.7
Model
FC-250D
FC-300D
FC-500D
FC-650D
Twisting usage
Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Single wire dia(mm)
0.03-0.18
0.05-0.28
0.08-0.45
0.15-1.04
Stranding section area (mm2)
0.0049-0.30
0.0137-0.45
0.05-2.0
0.35-6.0
Pitch(mm)
0.8-10.8(24zones)
1.6-21.6(24zones)
6.3-52.3(24zones)
11.6-100(34zones)
Direction of lay
Free to right or left
Take up bobbin size(mm)
250*30*185
300*30*185
500*56*375
500*127*375
600*56*475
600*127*475
Max rotating speed
3500(7000twist)
3500(7000twist)
3000(6000twist)
2000(4000twist)
Power
3.7KW
5.5KW
7.5KW
11KW
Tension control method
Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch
0.3kgf
0.6kgf
1.2kgf
5kgf
Protection
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Traversing method
Rolling ring drive units, winding pitch and breadth are adjustable
Dimension(mm)
2400L*1750W*1100H
2400L*1750W*1100H
2800L*2250w*1500H
3500L*2850W*1800H
