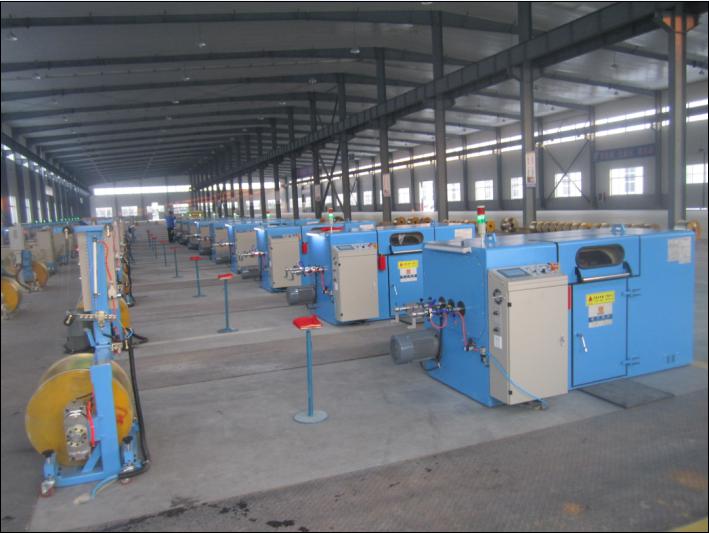

Fuchuan FC-500B high speed wire bunching machine with high performance

FOB Price:	16,000.00 - 32,670.00 USD/Set
Supply Ability:	500 Set/Sets per Year
Shipping:	45 days after confirm
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	container

Quick Details

Usage: Stranding
Model Number: FC 500B
Brand Name: FUCHUAN
FC: 500B

Specifications

FUCHUAN? Series for Model B normal wire high speed bunching machine and double twist bunching machine

Japan Technology, product in China

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

Characteristics:

1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.

Two: Specifications:

Equipment models	FC-500B	FC-650B		FC-650C	FC-800B
Twisting usage	Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	0.08-0.45	0.15-1.04		0.12-0.52	0.38-1.70
Stranding section area (mm2)	0.05-2.5	0.35-6.0		0.30-4.0	1.0-16
Core wire single wire dia(mm)	0.5-1.5	0.5-3.0		0.5-2.0	1.0-4.0
Core wire stranding outer dia(mm)	1.0-3.5	1.0-6.0		1.0-4.0	2.0-8.0
Pitch(mm)	6.3-52.3(24classes)	11.6-100(34classes)		11.6-100(34classes)	23-147(20classes)
Direction of lay	Optional for right or left
Outer diaboreouter width	OD500 ID56 H375	OD630 ID56 H475		OD630 ID56 H475 OD630 ID127 H475	OD800 ID80 H600
Max rotating speed	3000rpm(6000twist)	2000rpm(4000twist)		2400rpm(4800twist)	1500rpm(3000twist)
Main motor power	5.5KW	7.5KW		11KW	15KW
Inverter power	5.5KW	7.5KW		11KW	15KW
Tension control method	Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch	1.2kgf	5kgf		2.5kgf	10kgf
Protection	automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode	Electromagnetic brake
Traversing method	Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	2680L 1250W 1500H		3300L 1550W 1800H	3300L 1550w 1800H	4600L 2000W 2000H
