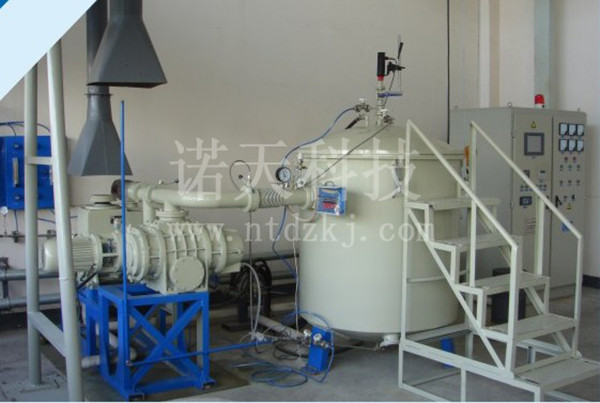

2500 degree celsius high temperature tungsten carbide sintering furnace

FOB Price:	30,769.00 - 76,923.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	60 days for estimated time of arrival, shenzhen port
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	export standard packing by professional staff

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO and CE certification
Power(W): 100kw
Voltage: 380V for inlet cable voltage
Model Number: KGPS-100
Brand Name: no brand
Usage: Sintering Furnace
Type: tungsten carbide sintering furnace
Condition: New
Inpurt voltage: 380V
IF power supply frequency: 4000Hz
IF power: 100kw
Pressure rise rate: 0.5
crucible volume: D200X300mm

Specifications

Tungsten carbide sintering furnace

●Application:

●Feature:

1.The highest working temperature:1800℃,2300℃,2500℃

2.The atmosphere in the furnace: Hydrogen, nitrogen, inert gas etc.

3.Temperature measurement: far infrared optical temperature measurement range 800~2400 degrees celsius or 0~2400 degree celsius; temperature measurement accuracy: 0.2~0.75%.

A power supply with a plurality of furnace body, one to two, one to four, one to six

●Uniformity of furnace temperature

Ultimate temperature speed-up:100℃/min(empty furnace), temperature uniformity: ≤±10℃,temperature control: process control and manual control; accuracy of temperature control:±1℃
●High degree of automation equipment:
1.High temperature furnace body 2500 ℃, can be compatible with the slim, medium and coarse granular materials WC powder and composite carbonization heating process.

2. Digital display of intelligent temperature control system, automatic high precision temperature control process, rising the temperature according to the given heating-up curve, and can store twenty a total of 400 different process heating curves.

3.Pure water cooling system, digital flow monitoring system, using high performance IF contactor for automatic conversion of the furnace body; comprehensive PLC water, electricity, gas automatic control and protection system.
●Technology parameter:
The volume of high temperature area: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3

Parameter name	Unit	KGPS-100	KGPS -160	KGPS -200	KGPS -250
The effective volume of the crucible (Diameter×Height)	mm	Φ200×300	Φ450×900	Φ500×1050	Φ650×1200
IF power	Kw	100	160	200	250
IF power supply frequency	Hz	4000	2500	1000	1000
The highest working temperature	℃	2500	2500	2500	2500
Ultimate vacuum	Pa		3.6×10-3	3.6×10-3	3.6×10-3
Pressure-rising rate	Pa/h	0.5	0.5	0.5	0.5

Parameter name	unit	KGPS-100	KGPS -160	KGPS -200	KGPS -250
The effective volume of the crucible (Diameter×Height)	mm	Φ200×300	Φ450×900	Φ500×1050	Φ650×1200
If power	Kw	100	160	200	250
IF power supply frequency	Hz	4000	2500	1000	1000
The highest working temperature	℃	2500	2500	2500	2500
Ultimate vacuum	Pa	3.6×10-3	3.6×10-3	3.6×10-3	3.6×10-3
Pressure-rising rate	Pa/h	0.5	0.5	0.5	0.5
The difference of constant temperature area	℃	±20	±20	±20	±20
