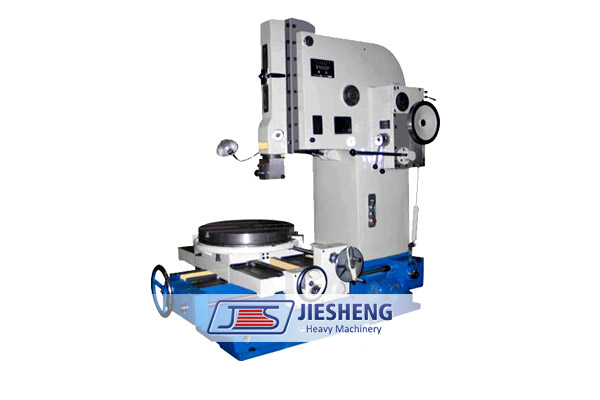

Description of Slotting Machine B5032 the slotting machine B5032 is used for slotting plane, forming surface and keyway, etc. It also can be used to process molds with inclination less than 10°, which is suitable for single or small batch production enterprises.
this slotting machine has 3 different directions table feed (vertical, horizontal and rotary), so the workpiece can be processed several surfaces after being fixed.
There is a hydraulic drive with RAM reciprocates and hydraulic table feed device. RAM keeps the same speed in each stroke, and the RAM speed and the table mobile can make stepless adjustment. There is a oil add and direction change divice for the RAM stock on the hydraulic console, the table feed can be hydraulic and manual feed, there is still fast moving of vertical, horizontal and rotating driven by a separate drive motor.
the hydraulic feed slotting machine B5032 adopts instant feed, which is superior to drum feed of mechanical slotting machine.
Technical Parameters of Slotting Machine B5032:
| Model | B5032 |
| Max.Slotting length | 320mm |
| Max. size of workpiece (L*H) | 600*320mm |
| Max.Weight of workpiece | 500kg |
| Max.Cutting force | 7500N |
| No.of strokes per minutem | 20.32.50.80.r.p.M |
| Vertical ajustment of RAM | 315mm |
| Inclination of RAM | 0-8 ° |
| Distance between tool holdingsurface and column front | 600mm |
| Max.Tool shank size (W*H) | 25*40mm |
| Table diameter | 630mm |
| Distance between table surface and low end of RAM | 490mm |
| Max.Longitudinal travel of table | 480/620mm |
| Max.Cross travel of table | 480/560mm |
| Max.Rotary angle of table | ±360 ° |
| Range of table longitudinal and cross power feeds | 0.08-1.21mm |
| Range of table power feeds | 0.052-0.783 |
| Power of rapid drive motor | 4kw |
| Rotating speeed of main drive motor | 960r.p.M |
| Overall dimensions (L*W*H) | 2180*1505*2285mm |
| Weight(approx) | 3500kg |
