Shenzhen TTI Fiber Communication Co., Ltd.
China Manufacturer with main products: Fiber Cable, Fiber Patch Cord, Fiber Connector, Fiber Adapter, Fiber Attenuator, ODF, PLC |

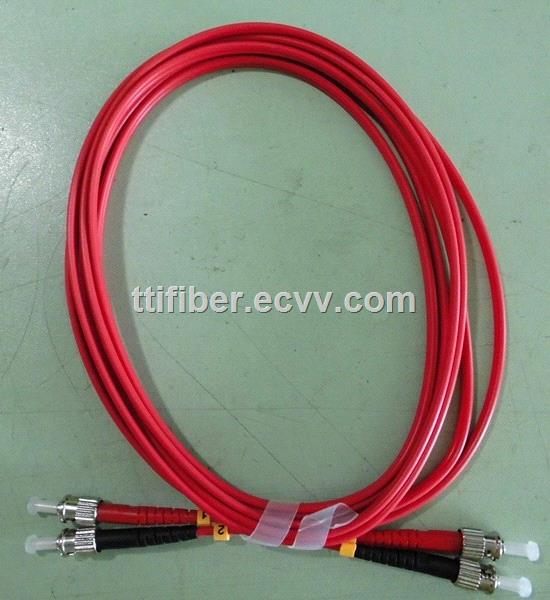

ST-ST 62.5/125 multimode fiber patch cord
| FOB Price: | 1.50 - 1.70 USD/Piece |
|---|---|
| Supply Ability: | 8,000 Piece/Pieces per Day |
| Shipping: | 3-5days order confirmed |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | in pp bag then in carton |
Quick Details
- Brand Name: TRT
- fiber core: duplex
- color: orange
- fiber: MM, 62.5/125
Specifications
Quick Detail:
- Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable length: 1m, 2m, 3m, 5m....customized
- Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
- Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
- Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
Features:
- Serialized & Individual Test Records
- Guaranteed Zero Defects
- Meets ROHS and Bell core GR 326-core standards
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
Applications:
- Premise Installations
- Active Device Termination
- Industrial, medical & military
- Video transmission , Data transmission
- Telecommunication and Data processing Networks
- FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
- Systems Integration for Long Haul, Metro and Access Network
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
