600*600mm Anti-Theft Square FRP Manhole Cover and Frame En124
| FOB Price: | 20.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece/Pieces per Week |
| Shipping: | 30-40 working days after deposite, by sea, xingang port, china |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Standartd wooden pallet package and if required, package can be made according to customer's request |
Quick Details
- Material: frp
- Model Number: 545112
- Brand Name: WJ
Specifications
FrP MANHOLE COVER
Composite Manhole Cover with EN124: 2015 Standard
1. High load rating and strength
As hard as cast iron, ductile iron manhole cover.
Barcol hardness 63 Designed to meet and exceed A15/B125/C250/D400/E600 loading rating, according to EN124:1994. We also could design the products according to the customers' local standard such as AS3996, FACTA standard, U. S. A. Standard AASHTO, etc.
Less noise and lower vibration transmissions.
2. Against theft and safety options
Zero theft value, reducing potential accident and further maintenance cost caused by thieves.
Surface anti-slip thread guarantees safe road condition even in extreme weather.
Locks are available as an option molded into the cover to improve security rate.
Non-electricity conduction and non-heat conduction.
3. Lightweight
Compared with CI & DI manhole covers, .
composite covers are 50% lighter.
Lightweight allows more loading per vehicle, more convenient transportation and economical saving
Allows a safer working condition, which a SINGLE worker is enough when installation without risk of injury. And we could provide some good accessories to help customers lift the cover much easier.
4. Durable service life.
More than 30 years service life without crack and color fading, comparing to 5 years of cast iron.
Anti corrosion, water, dust and pets tight, well sealed prevent poisonous gas leaking out.
Without displacement, freely radio signal passing.
Higher and lower temperature tolerance with the range -40°C-200°C.
Wear indicators available when thread depth is in a danger value.
5. Free design
Composite material itself allows for innovative design features, clint logo is available as an option.
Much more clear resolution ratio of surface design than cast iron or BMC.
6. Carbon footprint saving and environmental care.
Lower embedded energy carbon emission and during manufacturing process than cast iron covers.
Product code: C600*600-MP
Material: FRP(Fiberglass reinforced plastic)
Surface size: Surface size 600*600mm
Loading capacity: BS EN124: 2015 C250
1. Features:
1. No recycling value
2. High erosion resistance
3. Individual logo design
4. Various color as clients' request
5. Anti-slip
6. Shock-resistance
We can supply 3 types of manhole covers:

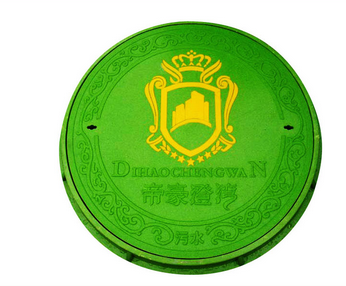

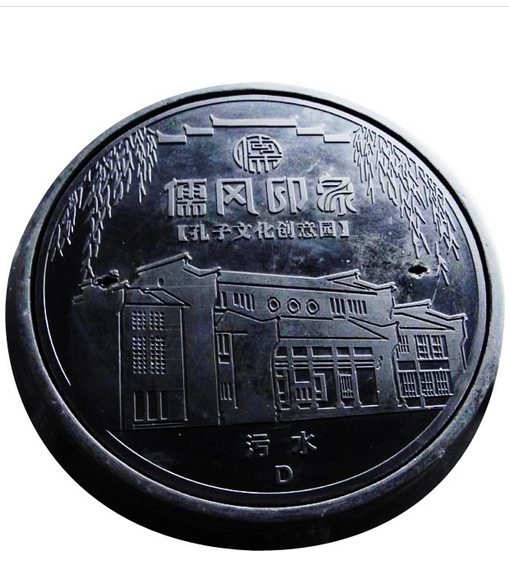

1. Circular Cover

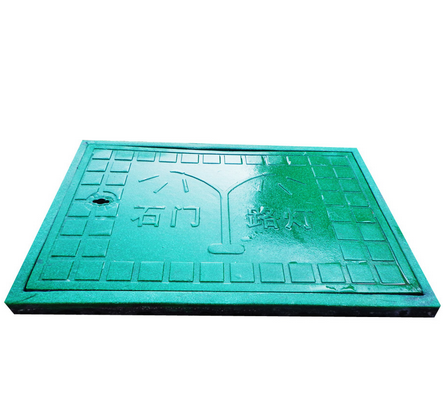

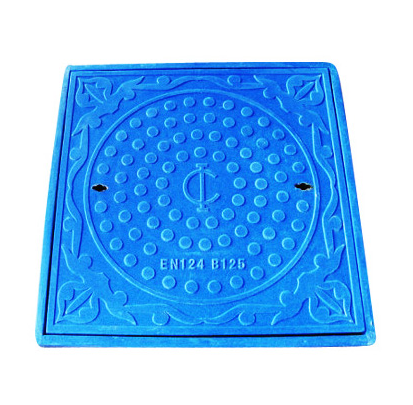

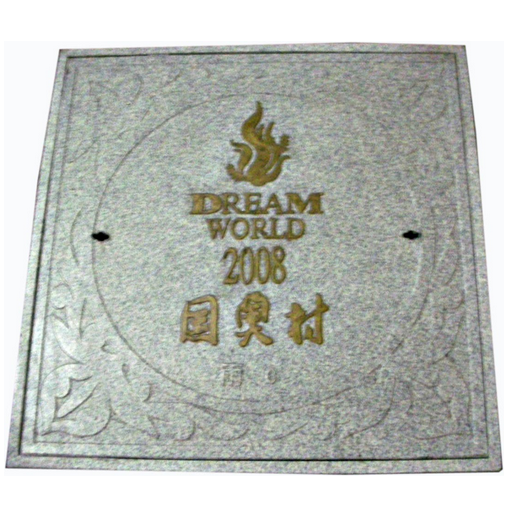

2. Square Cover
3. Circular cover with Square outside
4. Four grades of load capacity are available:
5. A15 Areas which can only be used by pedestrians and pedal cyclists
6. B125 Footways, Pedestrian areas and comparable areas, car packs or car parking decks
7. C250 For gully tops installed in the area of kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0.5m into the carriageway and a maxiumum of 0.2m into the footway.
8. D400 Carriageways of roads(including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
