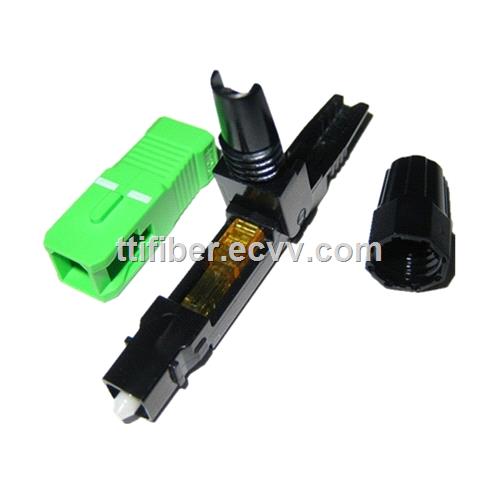

FTTH quick splice-on SC/APC fast connector
| FOB Price: | 0.60 - 0.70 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Day |
| Shipping: | 3-5days order confirmed |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | in pp bag |
Quick Details
- Model Number: SC/APC quick connector
- Brand Name: TRT
- color: Green
- ferrule: APC
- fiber: SM 9/125
Specifications
Description
the fast connector is designed for high quality and high efficiency for installation
the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
adopted fiber pre-installed structure
could be reused, and convenient for field installation
Feature
precise mechanical dimensions
low insertion loss, high return loss
comply standard of IEC61754-4
ROHS compliant
Application
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
Parameter
| cable applicable | 3.1 x 2.0 mm drop cable |
| cable diameter | 125μm ( 657A & 657B ) |
|
clad diameter |
250μm |
| fiber type application | single mode |
| operation time | about 100s(not including fiber management ) |
| insertion loss | ≤ 0.3dB(1310nm & 1550nm) |
| return loss | ≤ -40dB |
| bare fiber strength | >5 N |
| clad strength | >10 N |
| of tension | >50 N |
| operation temperature | -40~+7 250μm 5°C |
| tensile strength (20 N) | IL ≤ 0.2dB RL ≤ 5dB |
| mechanical ?durability | (500 times) IL ≤ 0.2dB RL ≤ 5dB |
