New Series: Aluminum Electrolytic Capacitors for Electric Vehicle Charging pile
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Mid East, Western Europe |
|---|
Specifications

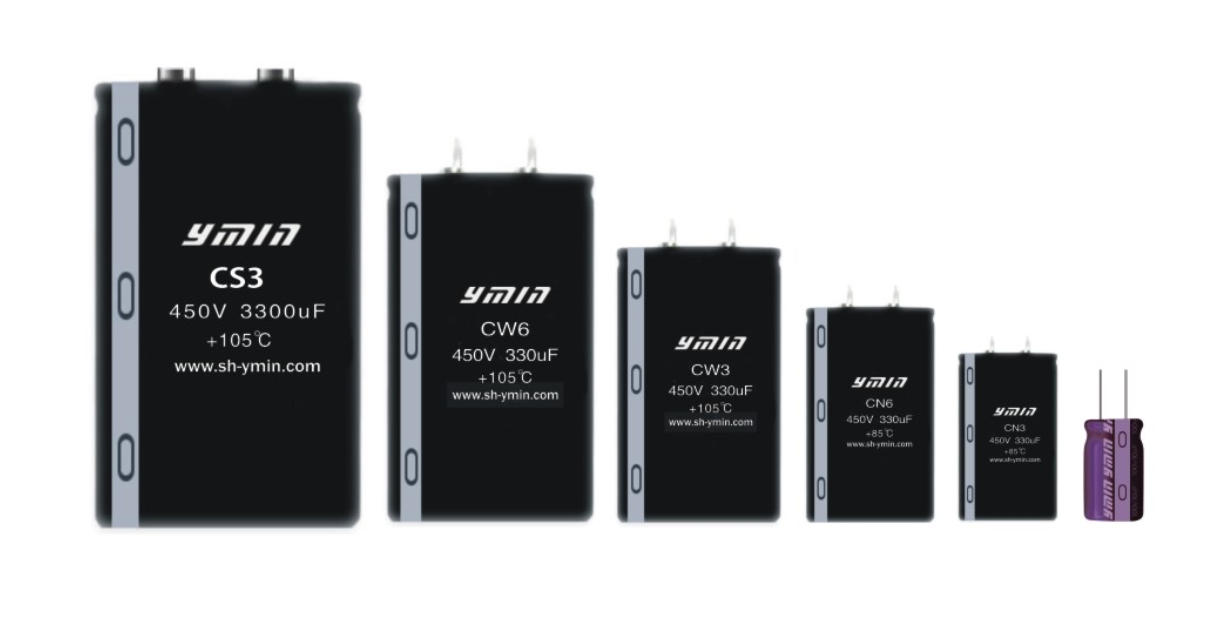

Through more than six years' research and development, We,Shanghai Yongming to be the first company in China to launch aluminum electrolytic capacitor special for Electric Vehicle charging pile. From small power to high power and different requirements, it is mainly divided into six series: LKZ, CN3, CN6, CW3, CW6, CS3.
Characteristics
LKZ: 10000Hours, -55℃ to 105℃,10V to 600V,2.2uf to 6800uf. Radial lead type.
CN3: 3000Hours,-40℃ to 85℃,350V to 500V,47uf to 1000uf. Snap in type.
CN6: 6000Hours,-40℃ to 85℃,350V to 500V,68uf to 1000uf. Snap in type.
CW3: 3000Hours,-40℃ to 105℃,300V to 500V,47uf to 1000uf. Snap in type.
CW6: 6000Hours,-40℃ to 105℃,350V to 500V,82uf to 1000uf. Snap in type.
CS3: 3000Hours,-40℃ to 105℃,200V to 500V,1000uf to 33000uf. Screw Terminal Type.
Different series for different Charging points:
1.For Miniature small power charging points, choose LKZ series.
2.For normal temperature environment,, LIGHT load (general use within 70% load), choose CN3 series
3.For normal temperature environment, HEAVY load (generally use in more than 70% load), choose CN6 series.
4.For Harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.), LIGHT load (general use within 70% load), choose CW3 series
5.For Harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.), HEAVY load (generally use in more than 70% load or long time continuous use) ,choose CW6 series
6.For low ESR, large ripple current charging pile, choose CS3 series.
Our EV charging pile capacitor advantages compare with competitors:
Longer life,
Higher reliability.
Low leakage current, low loss.
Less capacitance change after the life test,
Good starting characteristic at low temperature
