Diesel Engine Pump Set Safeguard

* Engine Autostart and Stop on multiple triggers via float
switches, Pressure, Vacuum, Level Sensor, SAT/GSM modems,
PLCs and RTUs
* Bi-directional remote telemetry connection to a PLC and
SCADA networks and to a website via Satellite or GSM modem.

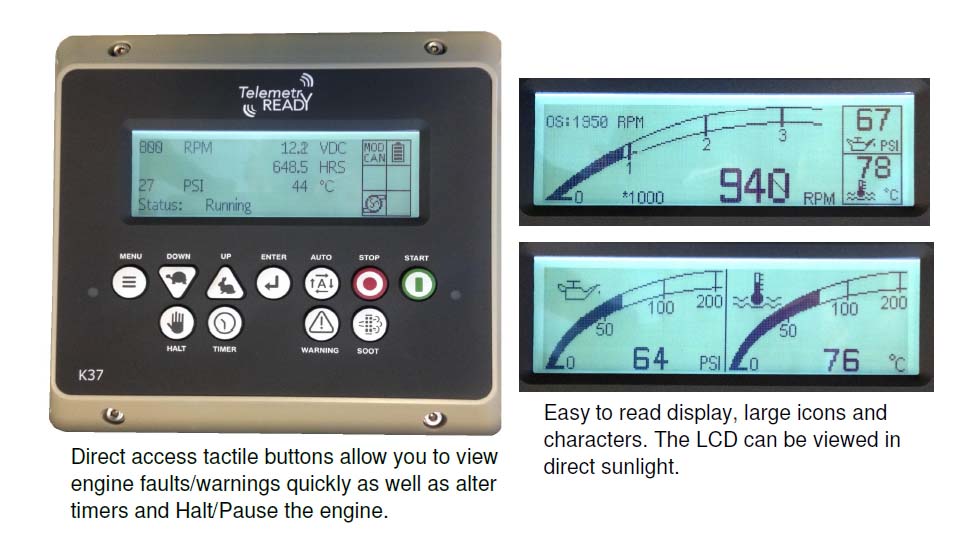

* Bright graphical display showing all engine/equipment data and
warning/faults.
* Complete asset protection on all sensors with built in 'Failsafe'
protection. Includes low radiator coolant level detection.
* Connects to various analogue sensors, ie: 4-20mA pressure,
flow and depth sensors, including resistive temperature sensors.
* Multiple sensor readout, with built in separate adjustable
bypass timers and slush timers.
* Robust IP66 module in a powder coated enclosure with
tempered see through glass. Will not yellow in exposed sunlight.
* Automatic engine speed control via CANBUS J1939, MODBUS
or Pulse Width Modulation via electronic actuator. Can also be
controlled remotely.
* Save on fuel, running and maintenance costs. Fuel Level
monitoring.
* Adjustable engine warmup and cooldown timers.
* Programmable timers for, 7day 24hour timer and 100hour run
timer.
* One panel to suit mechanical engines or electronic CANJ1939
engines.
* Tier 4 emissions ready.
* I/O Expansion Capable.
* In built data logging on all equipment faults.
* Engine Running and Common Alarm outputs.
* Easy to set up and program.
Will permit future software upgrades via a computer.

Reduce your operating costs and increase the engine's life cycle.
The K37 engine autostart controller is designed for the off-road stationary diesel engine market. The software is application driven. The controller's primary function is the management of your diesel engine and the equipment it is driving. The software and hardware are designed to lower the cost of running and owning your asset. It will reduce your fuel and maintenance costs but most of all increase the
engine's life cycle. The K37 is used in the following applications: waste water de-watering, irrigation pumping, power generation, air compressors, high pressure cleaners, lighting towers, dust suppression pumping, tank filling, sewer bypass, frost control and fire pumps.
Telemetry will keep you connected to your asset. (Via Satellite/GSM/GPS)
The controller's telemetry capabilities make certain you will always be connected to your asset via a smart phone, tablet or computer. You have the option of sending data to a 3G network or the option of a go-anywhere satellite network. Just choose the right modem/data package to suit your budget. PLC, RTU or SCADA users can also connect to the K37. The control panel has inbuilt data logging capabilities
and captures all shutdown messages.
Works with a wide range of diesel engines.
Automatic engine speed control is offered on all engines, whether electronic or mechanical. This feature can adjust the engine speed to a set speed point or vary the engine speed with respect to an external 4-20mA sensor. All automatic throttling options come with adjustable
engine warm up, cool down and line fill timers. This controller is suitable for use on the following engine brands: Caterpillar, Cummins,
MTU, Detroit, Perkins, Deutz, Hatz, Scania, Kubota, Yanmar, JCB, Lister and various engines from Asia. Note, For engine speed control on mechanical engines, an electronic throttle actuator must be purchased separately.
Multiple engine start/stop methods
Featuring both manual and automatic start modes, the K37 offers great flexibility of use at the touch of a button. In automatic mode, the K37 is able to start and stop your engine based on a number of triggers such as: 7 day timer, single or duel float switches, low pressure switch,
telemetry/PLC module, pressure transducer, water depth level transducer, suction (vacuum) pressure and mains failure contactor. The option is yours.

K37

The K37 engine autostart controller is designed for the off-road stationary diesel engine market. The software is application driven. The controller's primary function is the management of your diesel engine and the equipment it is driving. The software and hardware are designed to lower the cost of running and owning your asset. It will reduce your fuel and maintenance costs but most of all increase the
engine's life cycle. The K37 is used in the following applications: waste water de-watering, irrigation pumping, power generation, air compressors, high pressure cleaners, lighting towers, dust suppression pumping, tank filling, sewer bypass, frost control and fire pumps.
