Masdiesel Internation (Hongkong) Limited
China Manufacturer with main products: Buses, Trucks, Off-Highway Mining Dump Trucks, Underground Mining Trucks, Heavy-Duty Flat Transporters, Hydraulic Combination Trailers, SPMT ... |
Related products from verified members
| Export Markets: | South America, Africa, Mid East |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Use: Truck Trailer
Specifications

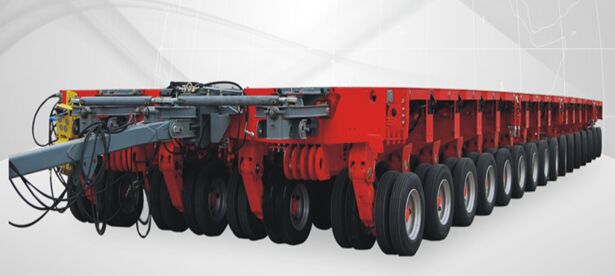

| MODULAR TRAILER | |||||||||||||||||||||||||||||||||
| Vehicle Type | SeriesA (Axle-line 2n-8n) | SeriesB (Axle-line 2n-8n) | SeriesC (Axle-line 2n-6n) | ||||||||||||||||||||||||||||||
| Number of Axles-line (n) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 2 | 3 | 4 | 5 | 6 | ||||||||||||||
| Speed(km/h) | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 5 | 80 | 0-80 | ||||
| Total Weight(t) | 68 | 32.8 | 102 | 49.2 | 136 | 65.6 | 170 | 82 | 204 | 98.4 | 238 | 114.8 | 272 | 131.2 | 68 | 32.8 | 102 | 49.2 | 136 | 65.6 | 170 | 82 | 204 | 98.4 | 238 | 114.8 | 272 | 131.2 | 56 | 84 | 112 | 140 | 168 |
| Rated Payload(t) | 61.4 | 26.2 | 92.1 | 39.3 | 122.8 | 52.4 | 153.5 | 65.5 | 184.2 | 78.6 | 214.9 | 91.7 | 245.6 | 104.8 | 61 | 25.8 | 91.5 | 38.7 | 122.8 | 52.4 | 152.5 | 64.5 | 183 | 77.4 | 213.5 | 90.3 | 244 | 103.2 | 49.4 | 74.1 | 98.8 | 123.5 | 148.2 |
| Dead Weight(t) | 6.6 | 9.9 | 13.2 | 16.5 | 19.8 | 23.1 | 26.4 | 7 | 10.5 | 13.2 | 17.5 | 21 | 24.5 | 28 | 6.6 | 9.9 | 13.2 | 16.5 | 19.8 | ||||||||||||||
| Load Per Axle Line(t) | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 34 | 16.4 | 28 | ||||
| Total Length (mm) | 3000 | 4500 | 6000 | 7500 | 9000 | 10500 | 12000 | 3000 | 4500 | 6000 | 7500 | 9000 | 10500 | 12000 | 3000 | 4650 | 6200 | 7750 | 9300 | ||||||||||||||
| Total Width (mm) | 3000 | 3000 | 3000 | ||||||||||||||||||||||||||||||
| Height (mm) | 1190 ±325(Unload) | 1175±300(Unload ) | 1120 ±325(Full load) | ||||||||||||||||||||||||||||||
| Axles Distance(mm) | 1500 | 1500 | 1550 | ||||||||||||||||||||||||||||||
| Wheels Distance(mm) | 1780 | 1800 | 1820 | ||||||||||||||||||||||||||||||
| Type Specification | 215/75R17.5 135/133J or 7.5R15 | 215/75R17.5 135/133J | 215/75R17.5 135/133J or 7.5R15 | ||||||||||||||||||||||||||||||
| Rim Specification | 6.00-17.5 or 6.00-15 | 6.00-17.5 | 6.00-17.5 or 6.00-15 | ||||||||||||||||||||||||||||||
| Number of Tyre | 16 | 24 | 32 | 40 | 48 | 56 | 64 | 16 | 24 | 32 | 40 | 48 | 56 | 64 | 16 | 24 | 32 | 40 | 48 | ||||||||||||||
| Max. Turning Angle of wheel | 60o | 55o | 55o | ||||||||||||||||||||||||||||||
| Min. Turning Radius(mm) | Inner200 Outter4000 | Inner1100 Outter5500 | Inner1900 Outter7300 | Inner1100 Outter5500 | Inner1500 Outter6250 | Inner1900 Outter7300 | Inner2400 Outter8000 | Inner450 Outter4070 | Inner1500 Outter5800 | Inner2600 Outter7600 | Inner1500 Outter5800 | Inner2000 Outter6700 | Inner2600 Outter7600 | Inner3100 Outter8500 | Inner500 Outter4200 | Inner1600 Outter6000 | Inner2700 Outter7900 | Inner1600 Outter6000 | Inner2200 Outter7000 | ||||||||||||||
