Paper Bag Machinery With 4 Color Printer

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas

Specifications

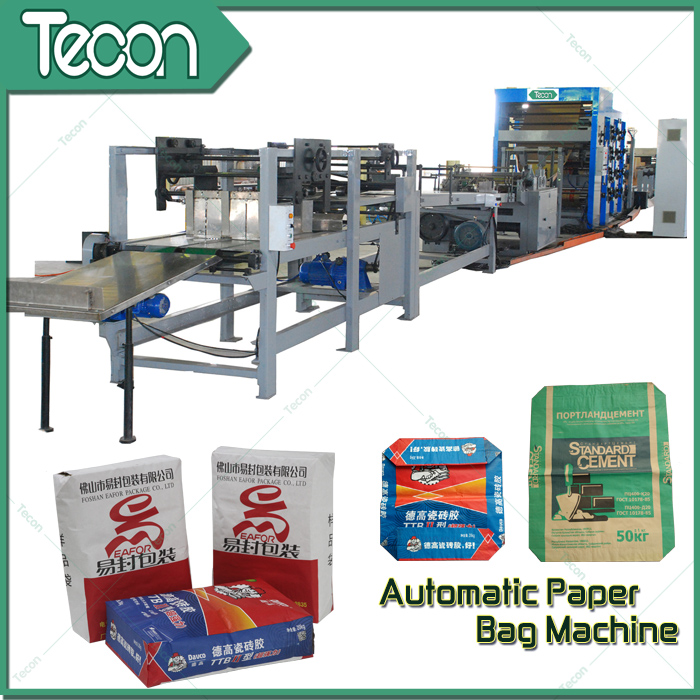

Paper and plastic complex bag making machine with 4 color printer

Specification of compact line

Basic model: ZT9804&HD4913

Machine technical parameter:

Tuber Speed: 130~150 tubes/min

Bottomer speed: 80~130 bags/min

Diameter of print roller: ?144～?314 mm

Printing width: 1300 mm(MAX)

Paper reel width: 860~1260 mm

Paper reel diameter: Max. 1, 300 mm

Size of tuber: 34.3m*2.4m*2.7m( L*W*H)

Size of bottomer: 21.3m*2.3.m*1.8m ( L*W*H)

Air consumption: 1,100L/min

Power consumption: 63kw(ZT9804 30KW,HD4913 33KW)

Paper Bag details:

Bag Width: 420~600 mm

Bottom width: 90~130mm

Length: 520~880mm

Number of plies: 2~4 papers and 1 PP/PE liner obtional.

Colour printing: 4 colors available (ZT9802 is 2 color printing)

Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.

ZT9804 Tuber Machine compose of following parts

4-color printing machine	1
Mill roll stands	5
Paper web guide	1
Automatic paper unwinding	1
Auxiliary web guide	1
Perforation unit	1
Cross stepped gluing unit	1
Longitude seam gluing unit	1
Tubes forming unit	1
Driving tearing-off unit	1
Delivery and counting unit	1
Electrical system	1
Bearing	NSK Japan
Compressor	1

HD4913 Bottomer machine compose of following parts

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1
Vacuum-pump	1

After-sale service
1. Provide training during and after the commissioning at the buyer site.
2. One year warranty period from the acceptance at the buyer site.

3. Provide life long technical services and effective solutions.
