Specifications
Product Description:
We supply HOWO 6x4 concrete mixer trucks, HOWO 8x4 concrete mixer trucks, with mixer tank capacity 8cbm,9cbm,10cbm,12cbm.

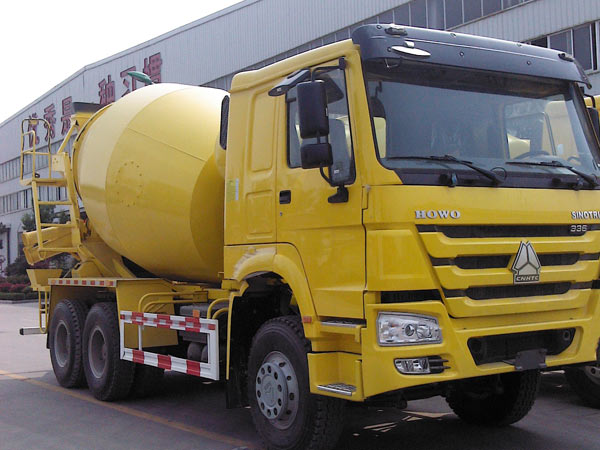

8000L SINOTRUK HOWO Concrete Mixer Truck 336HP
Model: ZZ1257N3841W, EUROII
Drive type: 6x4
Cab: HW76 flat roof cab with one sleeper bed, with A/C
Engine model: WEICHAI WD615.69
Engine power: 336hp
Tires: 12.00R20,10+1
Body drum capacity: 8m3
With EATON hydraulic pump and motor, Italy decelerator
Other technical details according to CNHTC factory standard
8000L SINOTRUK HOWO Concrete Mixer Truck 336HP
Model: ZZ1257N3841W, EUROII
Drive type: 6x4
Cab: HW76 flat roof cab with one sleeper bed, with A/C
Engine model: WEICHAI WD615.69
Engine power: 336hp
Tires: 12.00R20,10+1
Body drum capacity: 8m3
With EATON hydraulic pump and motor, Italy decelerator
Other technical details according to CNHTC factory standard
Technique parameter:
| SINOTRUK HOWO 6X4 CONCRETE MIXER TRUCK 8M3 CAPACITY | ||
| MODEL | 8CBM HOWO 6x4 MIXER TRUCK | |
| Cab | Driving type | Left Hand Drive(RHD is optional) |
| Cab type | HW76 flat roof cab with one sleeper bed, with A/C | |
| Engine | Engine Model | SINOTRUK WD615.69,336hp |
| Type | 6-cylinder in-line with water cooling, supercharging & inter cooling | |
| Displacement | 9.726L | |
| Engine output | 336hp/2200 rpm | |
| Max. torque | 1350 NM /1300-1600rpm | |
| Equipments | Transmission (gear box) | HW15710,10 speed transmission |
| Clutch | D430 Diaphragm type | |
| Steering | ZF8098 | |
| Front axle | HF9 drum type, 9tons | |
| Rear axle | HC16 Double reduction Ratio=5.73 | |
| Fuel tank | 300L | |
| Tires | 12.00R20, 10+1spare | |
| Weights | Kerb. mass | 13220kg |
| Total mass | 25000kg | |
| Rated payload | 11650kg | |
| Performance | Max. speed (km/h) | 75 |
| Max. gradeability(%) | ≥50 | |
| Minimum ground clearance(mm) | 314 | |
| Minimum turning diameter(m) | 17 | |
| Dimensions | Wheel base (mm) | 3825+1350 |
| Front/rear overhang (mm) | 1500/2365 | |
| Front/rear wheel track(mm) | 2022/1850 | |
| Approach/departure angle | 16/24 degree | |
| Overall dimension(mm) | 8850×2496×3850 | |
| Mixer Drum Body | Tank body size(mm) | 8 M3 |
| Rotating speed | 0-18 r/min | |
| Discharged remain ratio | <0.2% | |
| Water Tank | 400L | |
| Hydraulic pump and motor | EATON089 (America) | |
| Decelerator |
P68 (Italy) |
|
