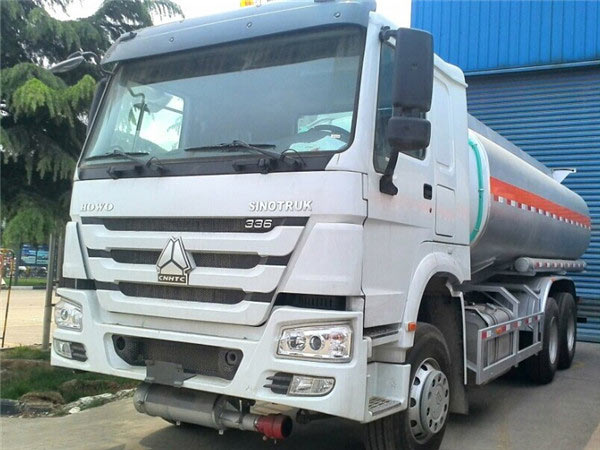

SINOTRUK HOWO Fuel Tanker Truck 20000L Oil Tank Truck

Inquiry Now

Specifications

Product Description:

20m3 SINOTRUK HOWO 6x4 Fuel Tanker Truck

Chassis model: ZZ1257N4341W
Engine power: 336hp, Euro II
Cab: HW76 Cab with one sleeper bed, with A/C
Fuel tank: 400L
Tires: 12R20, 11

Tank body capacity: 20000L
Thickness of tank body: 5mm
Main equipments: manhole 1, oil outlets 2, fire extinguisher 2, oil drain hoses 2
Optional: fuel pump (oil pump) and flowmeter
oil feeding machine and reels
Other technical details according to CIMC factory standard

Technique parameter:

SINOTRUK HOWO 6X4 FUEL TANKER TRUCK 20CBM CAPACITY
	MODEL	20CBM HOWO FUEL TANK TRUCK
Cab	Driving type	Left Hand Drive(RHD is optional)
Cab	Cab type	HW76 flat roof cab with one sleeper bed, with A/C
Engine	Engine Model	SINOTRUK WD615.69,336hp, EUROII
	Type	6-cylinder in-line with water cooling, supercharging & inter cooling
	Displacement	9.726L
	Engine output	336hp/2200 rpm
	Max. torque	1350 NM /1300-1600rpm
Equipments	Transmission (gear box)	HW15710,10 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF8098
	Front axle	HF9 drum type, 9tons
	Rear axle	HC16 Double reduction Ratio=5.73
	Fuel tank	400L
	Tires	12.00R20, 10+1spare
Weights	Kerb. mass	11000kg
	Total mass	25000kg
	Rated payload	13870kg
Performance	Max. speed (km/h)	102
	Max. gradeability(%)	50
	Minimum ground clearance(mm)	267
	Minimum turning diameter(m)	19
Dimensions	Wheel base (mm)	4300+1400
	Front/rear overhang (mm)	1500/2625
	Front/rear wheel track(mm)	2022/1850
	Approach/departure angle	16/15 degree
	Overall dimension(mm)	9800×2496×3500
Tank Body	Tank body size(mm)	7000×2400×1600
	Capcacity	20000L
	Thickness of tank body(mm)	5mm
	Main equipments	fuel pump(oil pump),flowmeter
	Options	oil feeding machine and reels(extra costs)
