Product Description:
We supply SHINOTRUK HOWO and HOWO A7 whole series trucks with competitive price, including HOWO A7 tractor heads, HOWO A7 dump trucks, HOWO A7 concrete mixer trucks, HOWO A7 fuel tank trucks and so on, with good quality and service.
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROII emission standard. We supply HOWO A7 6x4 tractor trucks and HOWO A7 4x2 tractor trucks.

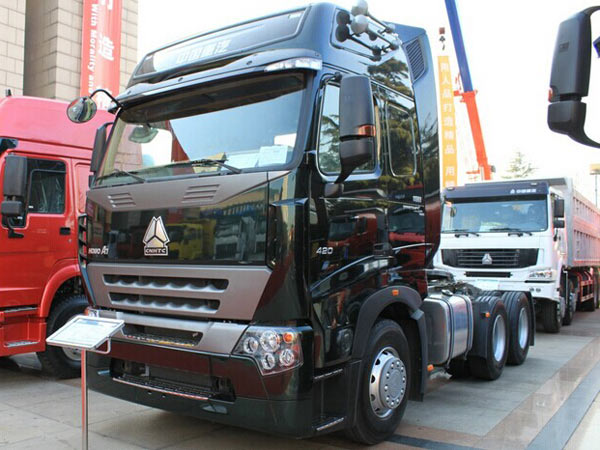

SINOTRUK HOWO A7 6X4 Tractor Head 420HP, EUROII
Cab: A7-G high floor, high roof cab with two sleeper beds, with A/C.
Engine model: SINOTRUK D12.42, EUROII
Engine power: 420hp
Tires: 12.00R20 ,10+1spare
Gearbox: HW19712
Steering: ZF8098
Fuel tank: 400L
Saddle size: 3.5''
Other technical details according to CNHTC factory standard.
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROII emission standard. We supply HOWO A7 6x4 tractor trucks and HOWO A7 4x2 tractor trucks.
SINOTRUK HOWO A7 6X4 Tractor Head 420HP, EUROII
Cab: A7-G high floor, high roof cab with two sleeper beds, with A/C.
Engine model: SINOTRUK D12.42, EUROII
Engine power: 420hp
Tires: 12.00R20 ,10+1spare
Gearbox: HW19712
Steering: ZF8098
Fuel tank: 400L
Saddle size: 3.5''
Other technical details according to CNHTC factory standard.
Technique parameter:
| SINOTRUK HOWO A7 6X4 TRACTOR HEAD 420HP | ||
| MODEL | 420HP HOWO A7 6X4 TRACTOR TRUCK,EUROII | |
| Cab | Driving type | Left Hand Drive(RHD is optional) |
| Cab type | A7-G high floor,high roof cab with two sleeper beds,with A/C. 4 point full air suspension | |
| Engine | Engine Model | SINOTRUK D12.42,420HP,EUROII |
| Type | 6-cylinder in-line with water cooling, supercharging & inter cooling | |
| Displacement | 11.596L | |
| Engine output | 420hp/2000 rpm | |
| Max. torque | 1820NM/1100-1400rpm | |
| Frame and equipments | Transmission (gear box) | HW19712,12 speed transmission |
| Clutch | D430 Diaphragm type | |
| Steering | ZF8098 | |
| Front axle | HF9 disc type,9tons | |
| Rear axle | HC16 Double reduction Ratio=4.42 (4.8, 5.73 is optional) | |
| Fuel tank | 400L | |
| Tires | 12.00R20, 10+1spare | |
| Brake | WABCO 4 ways ABS (ABS+ASR+EBL+TPM is optional) | |
| Weights in kg | Kerb. mass | 8800kg |
| Total mass | 25000kg | |
| Max.bearing weight of saddle | 16070kg | |
| Max.towed capacity | 40-60tons | |
| Performance | Max. speed (km/h) | 101 |
| Max. gradeability(%) | 30.9 | |
| Approach/departure angle | 15/46 degree | |
| Dimension in mm | Overall dimension(mm) | 6985×2496×3850 |
| Wheel base (mm) | 3200+1400 | |
| Front/rear overhang (mm) | 1540/870 | |
| Front /rear wheel track(mm) | 2022/1850 | |
| Saddle joint surface height(empty/full) | 1390/1326 | |
| Front /rear turning circle(mm) | 2460/2250 | |
| Minimum ground clearance(mm) | 268 | |
| Saddle size |
3.5'' or 2'' |
|
