Quick Details
- Condition: New
Specifications
Product Description:
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROIII emission standard.
We supply SINOTRUK HOWO A7 dump trucks, like HOWO A7 6x4 dump trucks, HOWO A7 8x4 dump trucks, with front lifting and middle lifting dump bodies, with good quality and competitive prices.

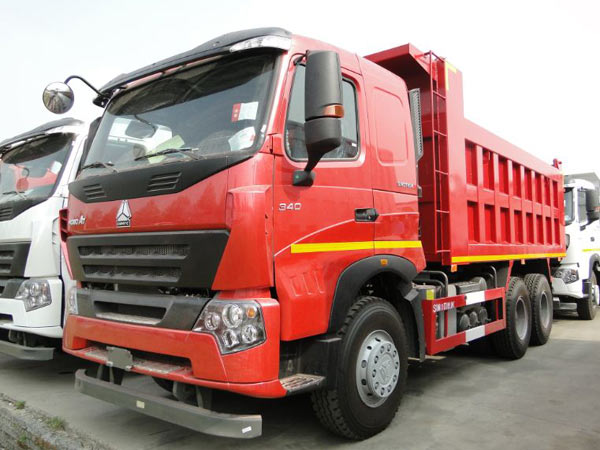

SINOTRUK HOWO A7 6x4 Tipper Truck 5.8m Body, EUROIII
Cab: A7-W low floor, long flat roof cab with one sleeper bed, with A/C
Engine model: SINOTRUK D10.38, EUROIII
Engine power: 380hp
Tires: 12.00R20, 10+1spare
Dump body dimension (mm): 5800*2300*1500
Capacity: 20 CBM
Thickness of dump body: floor 8mm, side and back 6mm.
Lifting type: reinforced T type middle lifting
HYVA front type lifting is optional
Other technical details according to CNHTC factory standard.
We supply SINOTRUK HOWO A7 dump trucks, like HOWO A7 6x4 dump trucks, HOWO A7 8x4 dump trucks, with front lifting and middle lifting dump bodies, with good quality and competitive prices.
SINOTRUK HOWO A7 6x4 Tipper Truck 5.8m Body, EUROIII
Cab: A7-W low floor, long flat roof cab with one sleeper bed, with A/C
Engine model: SINOTRUK D10.38, EUROIII
Engine power: 380hp
Tires: 12.00R20, 10+1spare
Dump body dimension (mm): 5800*2300*1500
Capacity: 20 CBM
Thickness of dump body: floor 8mm, side and back 6mm.
Lifting type: reinforced T type middle lifting
HYVA front type lifting is optional
Other technical details according to CNHTC factory standard.
Technique parameter:
| SINOTRUK HOWO A7 6X4 DUMP TRUCK 380HP 5.8m | ||
| MODEL | HOWO A7 6x4 DUMP TRUCK | |
| Cab | Driving type | Left Hand Drive |
| Cab type | A7-W low floor, long flat roof cab with one sleeper bed, with A/C | |
| Engine | Engine Model | SINOTRUK D10.38, 380HP, EUROIII |
| Type | 6-cylinder in-line, supercharging & inter cooling, mid turbocharger, high pressure common rail electronic control | |
| Displacement | 9.726L | |
| Engine output | 380hp/2000 rpm | |
| Max. torque | 1590NM/1200-1500rpm | |
| Equipments | Transmission (gear box) | HW19710,10 speed transmission |
| Clutch | D430 Diaphragm type | |
| Steering | ZF8098 | |
| Front axle | HF9 disc type, 9tons | |
| Rear axle | AC16 reinforced double reduction axles Ratio=4.77 | |
| Fuel tank | 300L | |
| Tires | 12.00R20,10+1spare | |
| Weights | Kerb. mass | 12270kg |
| Total mass | 25000kg | |
| Rated payload | 12600kg | |
| Performance | Max. speed (km/h) | 78 |
| Minimum ground clearance(mm) | 314 | |
| Dimensions | Wheel base (mm) | 3625+1350 |
| Front/rear overhang (mm) | 1540/1750 | |
| Front/rear wheel track(mm) | 2041/1830 | |
| Approach/departure angle | 20/26 degree | |
| Overall dimension(mm) | 8265×2496×3490 | |
| Dump body | Cargo body size(mm) | 5800×2300×1500 |
| Capacity | 20 CBM | |
| Thickness of dump body(mm) | floor 8mm,side and back 6mm | |
| Lifting type |
Front type lifting with HYVA cylinder |
|
