Product Description:
The HOWO all wheels drive trucks are developed on the base of STEYR, HOWO mature technology, and more than ten years off-road trucks production experience. They are more suitable for using in oil fields, mines, fire protection, forests environments, they are the new generation all wheels drive trucks with more mature technology.

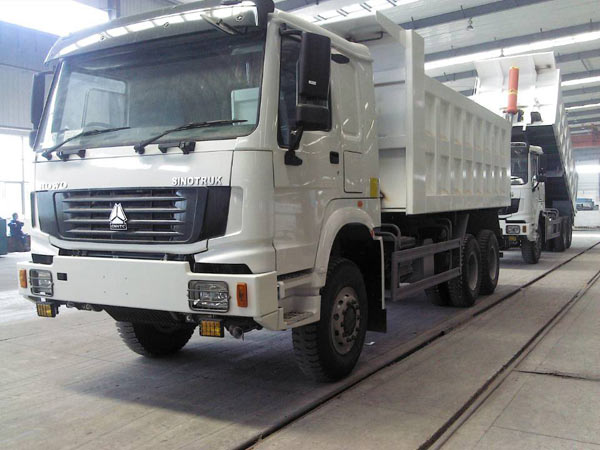

SINOTRUK HOWO 6x6 Off Road Dump Truck 336HP, 19.6CBM Capacity
Cab: HW76 flat roof cab with one sleeper bed, with A/C
Engine: SINOTRUK WD615.69, 336HP
Emission standard: EUROII
Tires: 12.00-20, 10+1spare
Dump body dimension (mm):
5670x2300x1500, 19.6 CBM capacity
Thickness of dump body (mm): floor 8, side & back 6
Lifting type: HYVA front lifting
More technical details according to CNHTC factory standard.
SINOTRUK HOWO 6x6 Off Road Dump Truck 336HP, 19.6CBM Capacity
Cab: HW76 flat roof cab with one sleeper bed, with A/C
Engine: SINOTRUK WD615.69, 336HP
Emission standard: EUROII
Tires: 12.00-20, 10+1spare
Dump body dimension (mm):
5670x2300x1500, 19.6 CBM capacity
Thickness of dump body (mm): floor 8, side & back 6
Lifting type: HYVA front lifting
More technical details according to CNHTC factory standard.
Technique parameter:
| SINOTRUK HOWO 6X6 DUMP TRUCK 336HP | ||
| MODEL | ZZ3257N4357A/NOWA,EUROII | |
| Cab | Driving type | Left Hand Drive (RHD is optional) |
| Cab type | HW76 flat roof cab with one sleeper bed, with A/C | |
| Engine | Engine Model | SINOTRUK WD615.69,336hp |
| Type | 6-cylinder in-line with water cooling, supercharging & inter cooling | |
| Displacement | 9.726L | |
| Engine output | 336hp/2200 rpm | |
| Max. torque | 1350 NM /1100-1600rpm | |
| Equipments | Transmission (gear box) | HW19710,10 speed transmission |
| Clutch | D430 Diaphragm type | |
| Steering | ZF8098 | |
| Front axle | STEYR axles | |
| Rear axle | ST16,STEYR double reduction axles Ratio: 5.73 | |
| Fuel tank | 300L | |
| Tires | 12.00-20, 10+1spare | |
| Weights | Kerb. mass | 12592kg |
| Total mass | 25000kg | |
| Rated payload | 12278kg | |
| Performance | Max. speed (km/h) | 73 |
| Max. gradeability(%) | 50 | |
| Minimum ground clearance(mm) | 314 | |
| Minimum turning diameter(m) | 19 | |
| Dimensions | Wheel base (mm) | 4300+1400 |
| Front/rear overhang (mm) | 1578/1460 | |
| Front/rear wheel track(mm) | 2022/1830 | |
| Approach/departure angle | 31/74 degree | |
| Overall dimension(mm) | 8738×2496×3500 | |
| Dump body | Cargo body size(mm) | 5670×2300×1500 |
| Capacity | 19.6 CBM | |
| Thickness of dump body(mm) | floor 8mm,side and back 6mm | |
| Lifting type | HYVA front type lifting | |
