PET plastic glass bottle olive/vegetable/edible 2-in-1 rotary oil filling capping packaging machine

FOB Price:	15,000.00 - 55,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	Wooden package based on FOB SHANGHAI terms
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

Type: Filling Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO
Weight: by model
Dimension(L*W*H): 2100x1400x2300mm
Model Number: TSP12-6
Brand Name: TSP
Power: 3.58KW
Voltage: 220/380V, 50-60HZ, 3 phases
Driven Type: Electric
Automatic Grade: Automatic
Packaging Material: Wood
Packaging Type: Bottles
Application: Beverage
Condition: New
Name: PET plastic glass bottle olive/vegetable/edible 2-in-1 rotary oil filling capping packaging machine
Bottle type: plastic or glass bottle
capacity: 1000-20000 bph
Contrl: PLC
Cap feeding: cap loader
structure: 2 in 1
function: filling and capping
Bottle input way: air conveyor or flat conveyor
Feature: without leaking oil
Warranty: 2 years

Specifications

2in1 monoblock rotary plastic bottle cooking oil filling machine

Description:

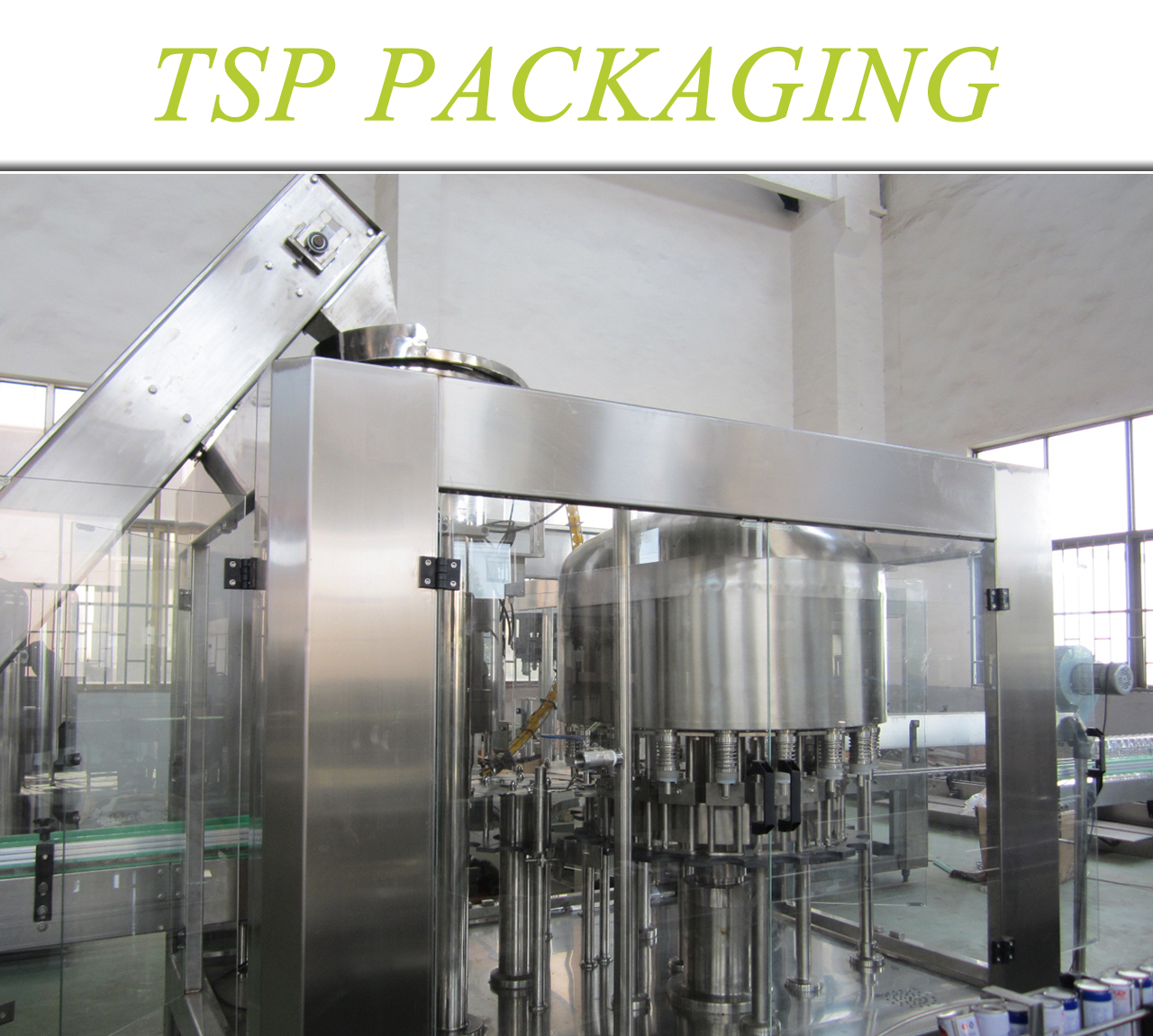

This machine is an automatic 2-in-1 monobloc edible oil filling machine. it adopt piston filling type,it could be applicable for all kinds of edible oil, olive oil, sunflower oil, ketchup, fruit &vegetable sauce(with or without solid piece),granule drink volumetric filling and capping . no bottles no filling and capping,PLC control system,easy operation.

2in1 monoblock rotary plastic bottle cooking oil filling machine

Technical Data of oil filling mahcine

Model	edilble oil filling machine	1L PET bottle	Applicable bottle specifications (mm)	Power(kw)	oil filling machine Dimension(mm)
TSP12/5	12, 5	3000-4000	0.25L-2L PET bottle 50-108 mm H=170-340mm	3.58	2100x1400x2300
TSP16/6	16, 5	5000-6000		3.58	2460x1720x2350
TSP18/6	18, 6	7000-8000		4.68	2800x2100x2350
TSP24/8	24, 8	9000-10000		4.68	2900x2500x2350
TSP32/10	32, 10	12000-14000		6.58	3100x2800x2350
TSP40/12	40,12	15000-18000		6.58	3500x3100x2350
