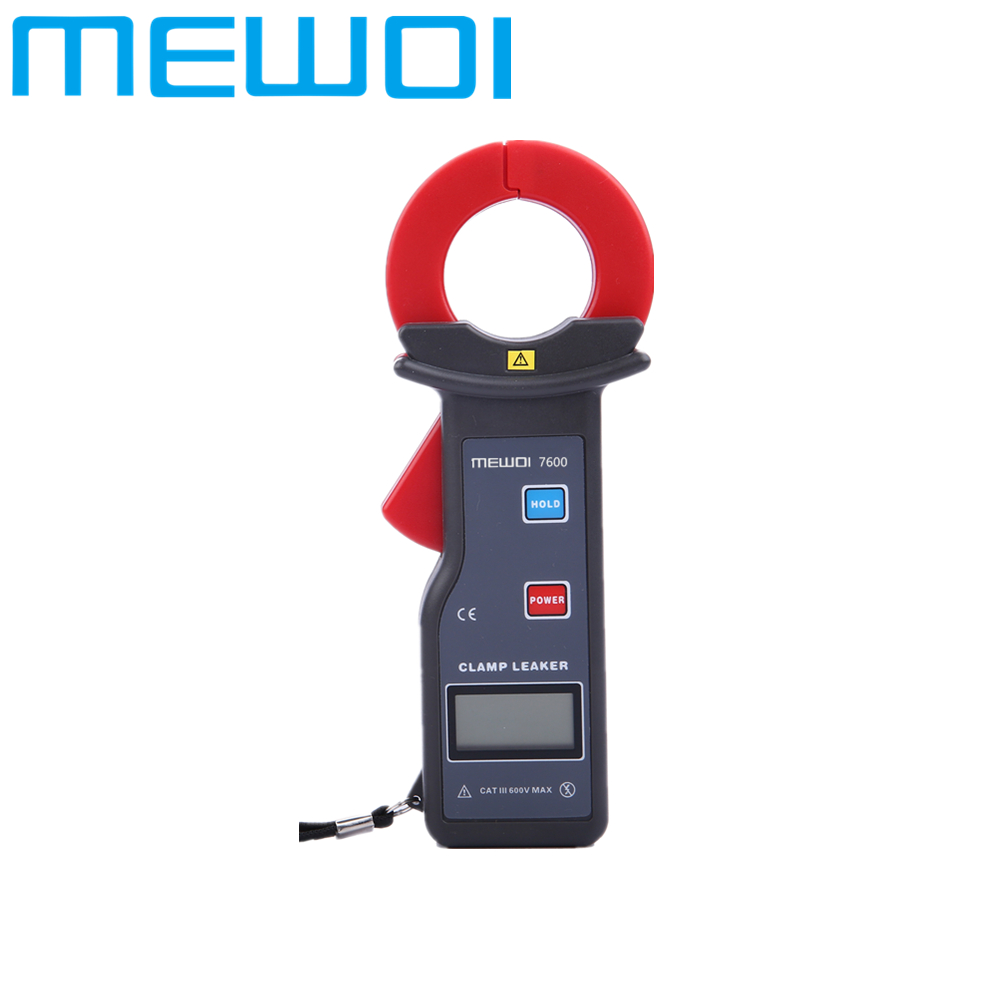

MEWOI7600-35mm*40mm,AC 0mA-600A High Accuracy AC Clamp Leaker

FOB Price:	199.00 - 399.00 USD/Set
Supply Ability:	5,000 Set/Sets per Week
Shipping:	3 DAYS for ready stock
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton box

Quick Details

Weight: 0.5KG
Dimensions: 175mm70mm38mm
Measuring Current Range: AC 0mA~600.0A
Display Type: Analog and Digital
Model Number: MEWOI7600
Brand Name: MEWOI

Specifications

Ⅰ.Introduction

MEWOI7600 High Accuracy Clamp Leaker is specially designed for AC leakage current measurement. It obtains the latest CT and digital integration technology, with characteristics of small volume, high accuracy and perfect function. It is widely used in electric power, telecommunications, meteorology, railways, oil construction, measurement, scientific research and teaching unit, industrial and mining enterprises, etc. Special alloy is used as its sensor core, which applied magnetic shielding technology, results in a almost free interference of external magnetic field.

RS232 interface is available on the meter. The meter can achieve online real-time monitoring and historical queries; in dynamic display, with maximum, minimum and mean value indications; also alarm value setting and alarm indication function, historical data reading, exporting and print functions, etc.

The meter can be used for on-line AC current measurement below AC600V, with the functions of peak maintaining, reading holding and data memory. In all, it is high accurate and easy and safe to use.

Technical Specification

Function	AC leakage measurement, AC current measurement, On-line AC current measurement
Power Supply	6F22 9V
Process Type	Clamp CT, Integral Approach
Display Type	4 Digits LCD
Clamp Size	35mm×40mm
Meter Dimension	LWH: 175mm×70mm×38mm
LCD Dimension	35mm×21.5mm; Display Dimension: 32mm×15mm
Sampling Rate	2 Times/Second
Frequency	50Hz, 60Hz Automatic identification
Shifting	Automatic Shift
Range	0mA~600.0A
Resolution	1mA
Accuracy (23℃±3℃, below 70%RH)	0~60A: ±1.5%±5dgt
	60A~200A: ±2%±5dgt
	200A~300A: ±3%±5dgt
	300A~600A: ±4%±5dgt
Line voltage	Below AC 600V
RS232 Interface	With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring
Data Memory	99 sets, " FULL" Blinking when memory is full
Peak Maintaining	Peak value capture hold function, press HOLD without Release to display peak value
Reading Hold	Reading hold function: " DH" symbol display
Overflow display	Range overflow function: " OL" symbol display
Automatic Shutdown	5 minutes after the boot
Battery Detection	When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement.
Meter Weight	140g (With battery)
Rated Power	5mW
Working Temperature and Humidity	0℃~40℃; below 80%rh
Storage Temperature and Humidity	-10℃~60℃; below 70%rh
Insulation Strength	AC2kV/rms (between core and box)
Safety Provisions	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Accessories	Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece

Ⅱ.SELECTION GUIDE 1

High Accuracy leakage current Clamp Meter/Tester

Click "Blue" marked MODEL NO.to view the spec

Model	Range	Resolution	Clamp size	Data Storge	RS232
MEWOI7000			φ7mm	99sets	√
MEWOI7100	AC/DC 0.0A~1000A	0.1A	30mm×35mm	99sets	√
MEWOI7200	AC/DC 0mA~60A	1mA	25mm×30mm	99sets	√
MEWOI7300	AC 0.000mA~60.00A	1uA	25mm×30mm	99sets	√
MEWOI7300E	DC 0.00mA~60.00A	0.01mA	25mm×30mm	99sets	√
MEWOI7500	AC 0.00mA~300.0A	0.01mA	35mm×40mm	99sets	√
MEWOI7600	AC 0mA~600A	1mA	35mm×40mm	99sets	√
MEWOI7800	AC 0.00mA~1200A	0.01mA	φ68mm	99sets	√
MEWOI7800E	AC 0.0A~1500A ,DC 0.0A~2000A	0.1A	φ68mm	99sets	√

SELECTION GUIDE 2

For Flexible Coil Leakage Current Monitoring Recorder/Logger

Click "Blue" marked MODEL NO.to view the Spec

Model No.	Range	Accuracy:	Clamp mouth	Coli Length	LCD display	Data Storage	Data upload	RS232 interface	Working Time
MEWOI9000G	AC 0.00A～20KA(50/60Hz)	AC 0.01A	Φ300mm	1000mm	44mm×27mm	4200sets	√	√	100hours
MEWOI9000GB	AC 0.00A～6000A(50/60Hz)	AC 0.01A	Φ200mm	630mm	44mm×27mm	4200sets	√	√	100hours
