MEWOI185L Split Type Leakage Current Sensor
| FOB Price: | 99.00 - 199.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Week |
| Shipping: | 3 Days for ready stock |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guizhou in China |
| Packaging Details: | carton box |
Quick Details
- Weight: 0.2kg
- Dimensions: 160mm80mm55mm
- Measuring Current Range: AC 0.00mA-60.0A
- Display Type: Analog and Digital
- Model Number: MEWOI185L
- Brand Name: MEWOI
Specifications
INTRODUCTION
|
MEWOI185L Clamp Type High Accuracy Leakage Current / Current Sensor is widely used in the field of electric power, communication, meteorology, railway, oil field, military, measuring, teaching research unit, industrial mining enterprises, etc, for measurement of AC leakage current, current, frequency, phase sequence, power and electrical energy. It can be connected with high accuracy digital multimeter, data recorder, electric power quality analyzer, oscilloscope, industrial control instrument, etc. It adopts open jaws design, with opening size of 85mm×20mm, very suitable for the place of flat steel ground connection. No need to take apart measured wires, which make the field testing and maintenance more secure and convenient. The combination of two sensors can be used as the sensor of non-contact ground resistance online testing.
MEWOI185L Clamp Type High Accuracy Leakage Current / Current Sensor adopts the latest CT technology, multilayer shielding techniques, least affection from external magnetic field, and capable of waterproof, rainproof, drip tight to make sure the high precision, high stability and high reliability of perennial uninterrupted measurement. Meanwhile, customizing is acceptable to meet more use of different places.
|
TECHNICAL SPECIFICATION
|
Function
|
High accuracy measurement of AC leakage current, current, frequency, phase sequence, power and electrical energy |
|
Opening Type
|
Clamp type |
|
Clamp Size
|
85mm×20mm |
|
Coils Turn
|
1000 : 1 |
|
Input Range
|
AC 0.00mA～60.0A |
|
Resolution
|
0.01mA |
|
Induced Output
|
1mA/1A |
|
Accuracy
|
±2%rdg±3dgt(23℃±5℃, below 80%RH) |
|
Load Resistance
|
0mA～2000mA: ≤50Ω |
| 0A～60A: ≤5Ω | |
|
Wire Identification
|
S1, S2---coil tap; GND---shield |
|
Line Voltage
|
Below AC 600V line measurement |
|
Overall Dimension
|
160mm×80mm×55mm |
|
Weight
|
600g |
|
Installation Direction
|
P1 side is upward |
|
Installation Type
|
2 types |
|
Working Temperature and Humidity
|
-20℃～50℃, below 80%rh |
|
Storage Temperature and Humidity
|
-10℃～60℃, below 70%rh |
|
Structure
|
Drip tight Ⅱ, rainproof |
|
SafetySpecifications
|
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V) |
|
Accessories
|

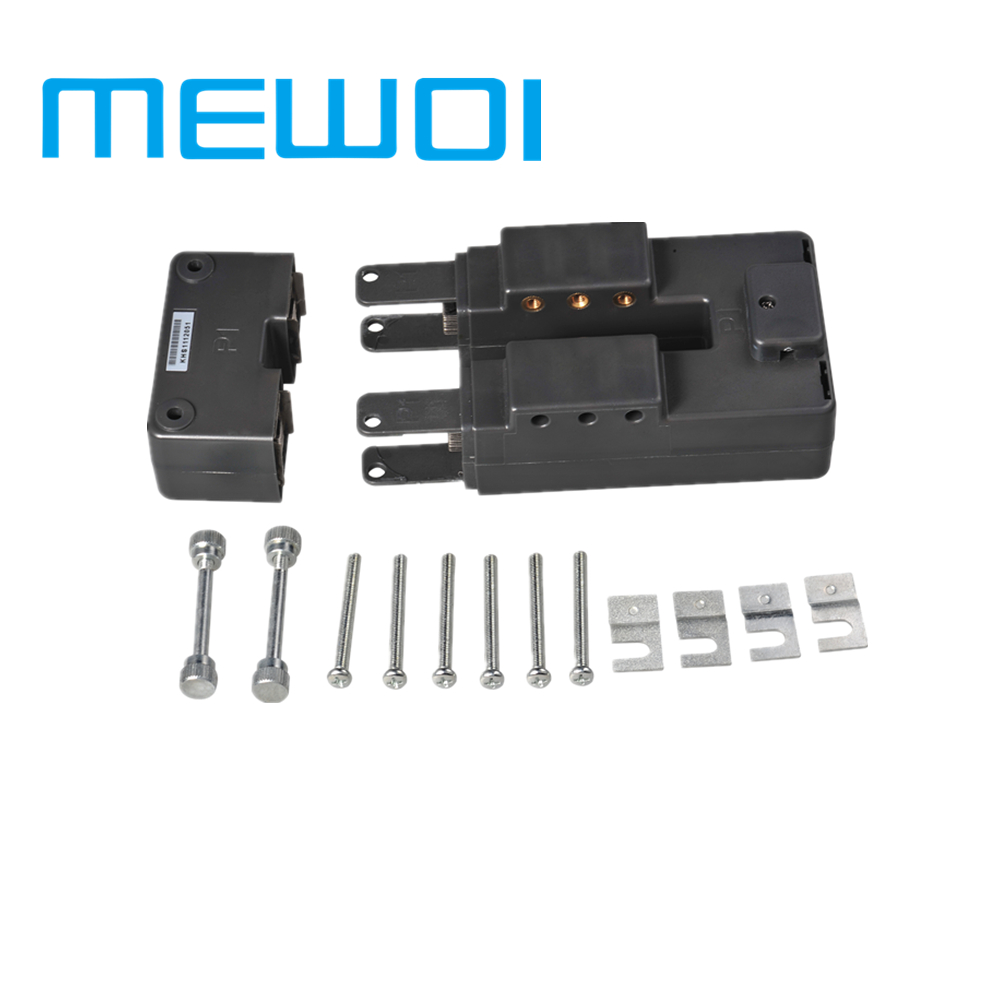

Current Sensor: 1 pc; Connecting Bolt: 2 pcs; Connecting Nut: 2 pcs; Support: 4 pcs; Fixed Screw: 6 pcs. |
SELECTION GUIDE
Split Type Current Sensor Probe
Click "Blue" marked Model No. to view the Spec
| Model No. | Range | Clamp Size | Resolution | Coils Turn | Current induction output,Direct Coil tap | Double shielding, anti-jamming capability, suitable for leakage current, small current test |
| MEWOI110L | 0.000mA~ 60(AC) | Φ10mm | 1uA, Accuracy 1% | 1:800 | √ | √ |
| MEWOI110LE | 0.0mA~ 100mA(DC) | Φ10mm | 0.1mA, Accuracy 3% | 1:800 | √ | √ |
| MEWOI125L | 0.000mA~ 60(AC) | Φ25mm | 1uA, Accuracy 1% | 1:800 | √ | √ |
| MEWOI125LE | 0mA~ 100mA(DC) | Φ25mm | 1mA, Accuracy 3% | 1:800 | √ | √ |
| MEWOI140L | 0.00mA~ 200(AC) | Φ40 mm | 10uA, Accuracy 1% | 1:800 | √ | √ |
| MEWOI140LE | 0mA~ 100mA(DC) | Φ40 mm | 1mA, Accuracy 3% | 1:800 | √ | √ |
| MEWOI185L | 0.000mA~60A(AC) | 85*20mm | 1uA, Accuracy 1% | 1:800 | √ | √ |
