Home >Products Catalog > Ceramic Fiber Paper > CE Certified 1mm thickness 1260 ceramic fiber paper in roll

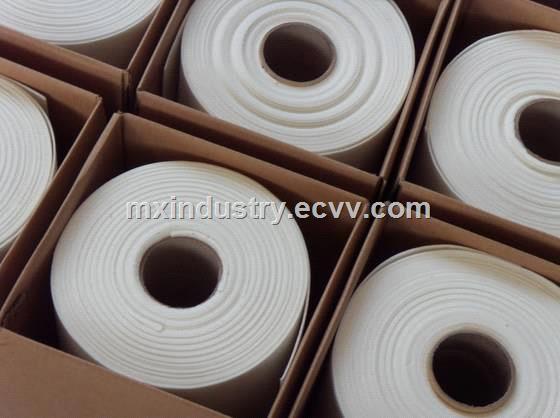

CE Certified 1mm thickness 1260 ceramic fiber paper in roll

FOB Price:	20.00 - 60.00 USD/Box
Supply Ability:	200 Ton/Tons per Day
Shipping:	7days from Qingdao Port, China
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Ceramic Fiber Paper

Price:15.00-40.00 USD/Piece

Min. Order:1 Piece
ceramic fiber paper

Price:

Min. Order:
Ceramic Fiber Paper

Price:10.00-20.00 USD/Ton

Min. Order:1 Ton

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	1 . Carton box package is made from 5 layer kraft paper to guarantee goods' safety during long dista

Quick Details

Model Number: MXPAPER
Brand Name: TOPWOOL
Shrinkage (1800℉, 3h): -3(24hours)
Thermal Conductivity: 0.09-0.176
Fiber Diameter: 2-5um
Working Temperature: 1100-1430C
Ultimate Strength (≥ MPa): 0.08-0.12
Chemical Composition: AL2O3, SIO2
Grade: ST (Standard)
Length: 10000-60000mm
Width: 610/1220mm
Thickness: 0.5-10mm
Application: Refractory
1MMX50M: 2MMX30M
3MM X 20M: 5MMX12M

Specifications

TOPWOOL Ceramic fiber paper, produced by Matrix Industry China Limited,pure white colour, completely free of asbestos ,a lightweight refractory material processed form a blend of high purity alumina-silica fibers into a highly flexible uniform sheet ,excellent slag elimination technology,made from high-purity ceramic fiber by adding a small amount of binder which makes it flexible, and reduces off-gassing and odor during use, Excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.); and excellent resistance to molten infiltration, allowing itself to be used for casting washer separation in the construction and glass industries.

Size and Specifications:

Lengthx Thickness: 60mx1mm, 30mx2mm, 20mx3mm, 15mx4mm, 12mx5mm, 10mx6mm

Width: 610mm or 1220mm

Other size pls contact us freely

Characteristics:

(1) Excellent electrical insulation properties
(2) Excellent thermal stability;

(3) Excellent tensile strength;

(4) Low thermal conductivity;
(5) Low thermal capacity;

(6) High flexibility

(7) Low slag content

Typical Use

(1) Industrial insulation, sealing, anti-corrosion material
(2) Insulation material for instruments and heating element
(3) Insulation material for automobile and aerospace industry
(4) Expansion joints filling material

(5) Molten metal sealing gasket
(6) Fireproof material

(7) Substitute for glass fiber and asbestos fiber

(8) Insulation for construction material, metallurgy and glass industries

TECHNICAL DATA SHEET

Matrix Industry China Limited supply 1260STD,1400HA,1450HZ ceramic fiber paper.

Types		1260C STD	1400 HA	1430 HZ
Operation Temp(°C)		1050°C (1922°F )	1260°C (2192°F)	1350°C (2462°F)
Density (kg/m3)		170-220
Thermal Conductivity (w/m.k)		0.07 (400°C) 0.09 (600°C) 0.12 (800°C)	0.069 (400°C) 0.088 (600°C) 0.11 (800°C)	0.068 (400°C) 0.87 (600°C) 0.10 (800°C)
Compression Strength (Mpa)		0.65	0.70	0.75
Chemical Composition	Al2O3(%)	42-43	51-52	39-40
	SiO2(%)	53	44	44
	ZrO2(%)	-	-	15-17
	Fe2O3+Ti2O3(%)	≤1.2	≤0.3	≤0.2
	Na2O+K2O(%)	≤0.5	≤0.3	≤0.2
	CaO+MgO	≤0.3	≤0.3	≤0.2

PACKAGE & DELIVERY

1 . Carton box package is made from 5 layer kraft paper to guarantee goods' safety during long distance sea delivery.

2. Shipping mark and packing details will according to clients' requirements to design.
