Home >Products Catalog > With vacaum pen and lase position WDS-620 bga reballing machine

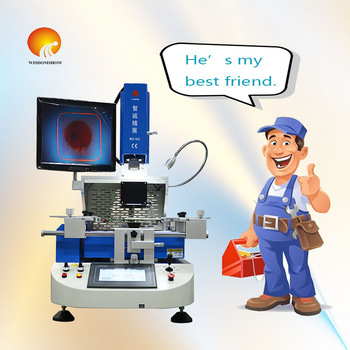

With vacaum pen and lase position WDS-620 bga reballing machine

Inquiry Now

Related products from verified members

Special Offer WDS-600 auto BGA Rework Station f...

Price:1.00-3,800.00 USD/Piece

Min. Order:1 Piece
YinXiang RSR-2000 Capacitance Type Energy Stori...

Price:1.00-800.00 USD/Piece

Min. Order:1 Piece
Haiming Cheap Plating Tank Welding Machine

Price:60000.00 USD/Set

Min. Order:1 Set
Cage Welding Machine

Price:

Min. Order:
$refractory gunning flux welding machine work on thermal status$

refractory gunning flux welding machine work on...

Price:30,000.00-32,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Soldering Station
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE&ISO
Usage: bga repair machine
Weight: 60kg
Dimensions: L650*W630*H850mm
Model Number: WDS-620
Brand Name: Wisdomshow
Condition: Used
type: bga rework station
brand Name: Wisdomshow
Current: independable
Dimensions: L650*W630*H850mm
Voltage: 110v/220v
weight: 60kg
usage: motherboard repair machine
total power: 5300W

Specifications

Remove BGA chip machine WDS-620 mobile pcb bga repair machine for retailer
Application of welding soldering station :

→ Laptop / Notebook/ Computer motherboard repair.

→ Playstation / XBOX 360 and other game console repair.

→ Iphone 4/ 4s / 5 / 5s motherboard repair.

→ TV / Video / ipad mainboard repai.

→ SMD/ SMT / IC BGA rework

Features of welding soldering station :

1.HD Optical alignment system for precisely mounting BGA and components

2.Touch screen and PLC controlling to ensure it work stably and reliably.

3.Components mounting accuracy within 0.01mm , Repair success rate 99.9%

4.Precise Temperature Control, accuracy within 2℃.

5. Upper temperature zone can be moved freely, Second zone can be adjusted up and down.

6. With CE certification, double over temperature protection function

Parameter of welding soldering station

Power	AC 220V±10% 50/60Hz
Total Power	4800W
Heater power	upper temp.zone 800w, second temp.zone 1200w, IR teom.zone 2700w
Temperature Controlling	K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
PCB size	Max:370380mm Min:1010mm
Applicable chips	Max: 80*80mm Min 1x1mm
Thermocouple Ports	1 units

WDS-620 BGA Rework Station Detailed SHOW

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of the

component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.

8 segment temperature control independently. welding soldering station

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up

for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower

temperature zones could be used alone and combine freely the energy of up and lower

heating element. bga welding machine

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting

system; bga welding machine

4.temperature curves can be displayed with instant curve analysis function and multi-group

user data can be saved;temperature can be tested precisely through external measurement

interface,curves can be analysed,set and correct on the touch screen at any time.

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution

and brightness adjustment,adjustable image contrast;equipped with 15 " high definition LCD monitor.

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.

Temperature parameter having password protection to prevent any modification.
