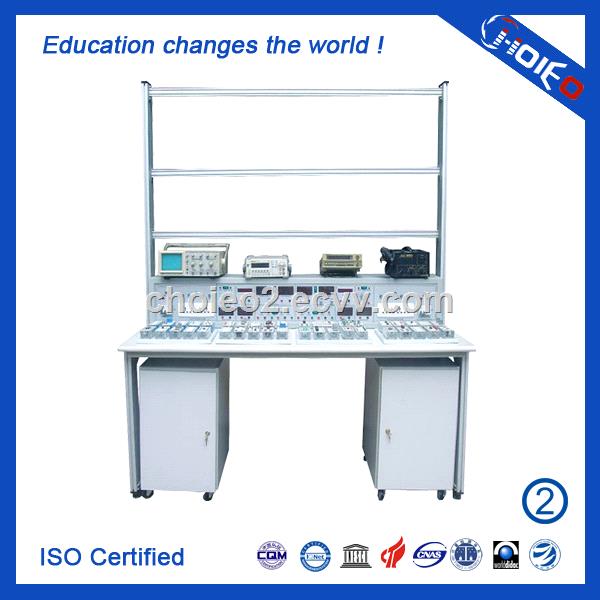

Electronic Process Technology Trainer,vocation educational training kits,electronics equipment

1. This trainer is developed to simulate the process of electronic production. It is single side double-station designed and equipped with electronic production used detecting instruments.
2. Operations like component pin regulating, plugging, welding, repair welding, debugging and detection can be conducted on this trainer, which is ideal for student to understand the manufacturing process and technology of electronic product.

Commonly used instrument operation
 Operation and measurement of DC stabilized power supply
 Operation and measurement of function signal source
 Operation of dual trace oscilloscope
 Operation of digital AC millivoltmeter
 Operation of digital multimeter
 Usage and maintenance of electric soldering iron
Understanding and detection of electronic components
 Understanding and detection of resistance and capacitance
 Understanding and detection of diode
 Understanding and detection of audion
 Understanding and detection of field-effect tube
 Understanding and detection of integrated circuit
 Understanding and detection of transformer
 Understanding and detection of switch and relay
Typical circuit assembly and debugging
 Assembly and debugging of bridge rectifier circuit
 Assembly and debugging of single stage amplifier circuit

 Assembly and debugging of series stabilized voltage power circuit
 Assembly and debugging of JFET common-source amplifier circuit
 Assembly and debugging of thyristor dimming circuit
 Assembly and debugging of sawtooth wave synchronous trigger circuit
 Assembly and debugging of digital stopwatch circuit
 Cascaded assembly and debugging of asynchronous counter
 Assembly and debugging of sine wave oscillating circuit

1. Working power supply: 220V ±5%, 50Hz
2. Safety protection: leakage protection (action current <30mA), overcurrent protection, fuse protection.
3. Dimensions: 1600mm × 750mm × 1800mm
4. Rated power: <0.5KW
5. Working environment: temperature -10C~ 40oC, relative humidity <85%
6. Weight: 85kg (approximatively)
