LED Advertising Display Screen with High Brightness and Light Weight Advantage
| FOB Price: | 9.00 - 2,000.00 USD/Square Meter |
|---|---|
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Specifications

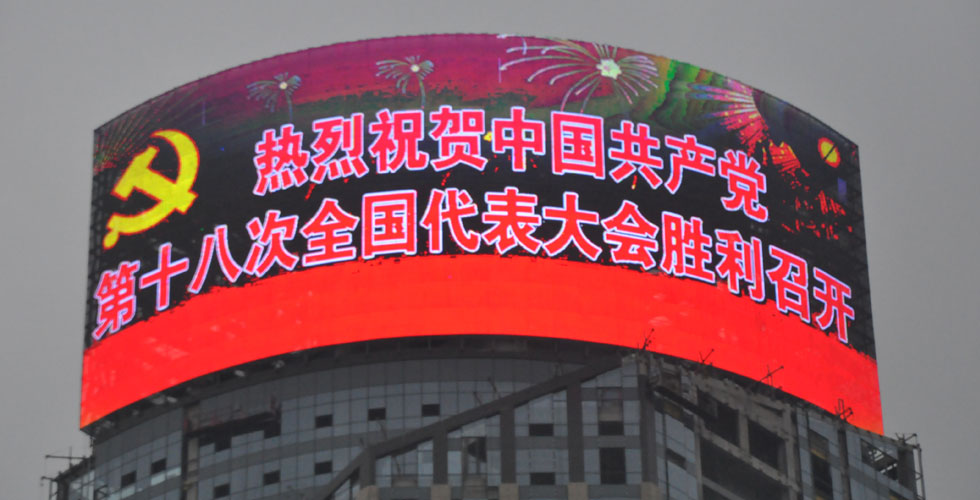

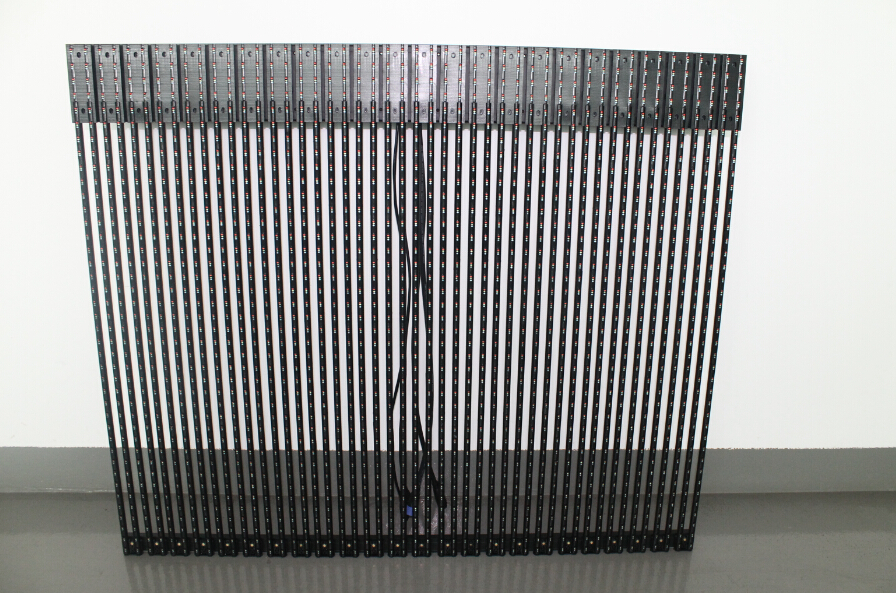

Forlight C-Curtain Series P40mm Media Facade Display is designed for large LED Display screen, over the time, more and more beautiful building has built in cities. They become new mark of city, also they are Medium to passing the information, advertising, etc.
The adventage of P40mm Media Facade Dispaly is:
1. Light Weight. 12kg/㎡ only. Per cabinet 25kg. Reduce the cost of steel structure. (the control box and Media strip could separate packing, less volume, reduce the cost of transportation. )
2. Low power, Average power is 70W/㎡ . Reduce the electric charge.
3. High brightness, the brightness is achieve 6000CD/㎡. Satisfied day time use.
4. High transparent rate. Achieve 60%. Won't effect indoor's sun lighting.
Basic Parameter:
|
Item: |
C Curtain 40 |
C Curtain 4080 |
|
|
Strip Size: |
L1600MM*W17MM*H15MM |
L1600MM*W17MM*H15MM |
|
|
Cabinet Size: |
L1600MM*W1280MM*H113MM |
L1000MM*W1000MM*H113MM |
|
|
Strips/Cabinet |
32 |
16 |
|
|
Materials: |
Aluminum Alloy+ PC Cover |
Aluminum Alloy+ PC Cover |
|
|
Pixel Pitch |
40mm |
H80/V40 |
|
|
LED Source: |
DIP346 2R2G2B/Pixel |
DIP346 2R2G2B/Pixel |
|
|
Resolutions: |
625 Pixel/m2 |
312 Pixel/m2 |
|
|
Power Dissipation/㎡: |
Maximum Power ≤240W Average Power ≤70W |
Maximum Power ≤120W Average Power ≤40W |
|
|
Input Voltage: |
AC185-265V |
AC185-265V |
|
|
Working Voltage: |
DC7.5V |
DC7.5V |
|
|
Brightness |
≥7500cd/㎡ |
≥4000cd/㎡ |
|
|
Best View Distance: |
40M~200M |
80M~400M |
|
|
Installation Height: |
20M~50M |
40M~100M |
|
|
Display Area: |
> 100㎡ |
> 150㎡ |
|
|
Transparent Rate: |
60% |
80% |
|
|
Weight/㎡: |
12KG/㎡ |
8KG/㎡ |
|
|
Strip Direction: |
Vertical Direction |
Vertical Direction |
|
|
View Angle: |
H90°/V60° |
H90°/V60° |
|
|
Protect Level: |
IP67 |
IP67 |
|
|
Working Temperature |
-40℃~+60℃ |
-40℃~+60℃ |
|
|
Working Humidity: |
10-90%RH |
10-90%RH |
|
|
Pixel Failure Rate: |
＜1/10000 |
＜1/10000 |
|
|
Gray Level: |
3x16bit |
3x16bit |
|
|
Frame Frequence: |
60HZ |
60HZ |
|
|
Refresh Rate: |
2300HZ |
2300HZ |
|
|
Drive Mode: |
Static State |
Static State |
|
|
Communication Interface |
USB/DVI/LAN |
USB/DVI/LAN |
|
|
Color Display Ability: |
6.87 Billion |
6.87 Billion |
|
|
No Failure Operation Rate: |
≥10000 Hours |
≥10000 Hours |
|
|
Installation Method: |
Hanging installation, Surface Mounting |
Hanging installation, Surface Mounting |
|
|
Maintain Method: |
Front Maintain/Back Maintain |
Front Maintain/Back Maintain |
|
|
Heat Dissipation Method: |
Natural Heat Dissipation |
Natural Heat Dissipation |
|
|
The Method of Cabinet and Cable |
Aluminum Box Aviation Waterproof Plug |
Aluminum Box Aviation Waterproof Plug |
