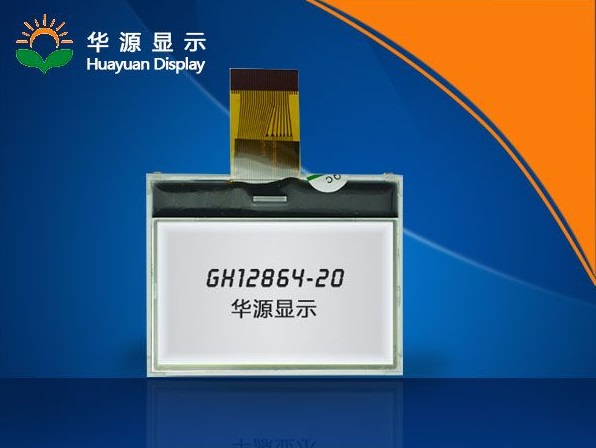

FSTN 12864 Cog Positive ST7565r LCD Module

FOB Price:	1.00 - 4.00 USD/Piece
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: COG
Model Number: GH12864-20
Brand Name: Huayuan
Model: Gh12864-20
Construction: cog
DOT Matrix: 128*64
Viewing Area: 48.00*36.00
Controller: St7565r

Specifications

Model: GH12864-20
ConstructionCOG
Display TypeSTN
Operating Voltage (VDD)3.3V, 5V
Backlight Voltage(VBL)3.3V, 5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6: 00
Dot Matrix128*64
Viewing Area48.00*36.00
Active Area44.77*30.05
Outline Dimension54.00*45.00*5.50MAX
ControllerST7565R
BacklightLED, White

1	2	3	4	5	6	7	8	9	10
NC	NC	NC	NC	VLCD	V+	V-	B-	B+	VSS
11	12	13	14	15	16	17	18	19	20
VDD	BM1	BM0	D7	D6	D5	D4	D3	D2	D1
21	22	23	24	25	26	27	28	29	30
D0	WR1	WR0	CD	RST	CS0	NC	NC	NC	NC

FAQ

Q1: Are you a factory or trading company?

A1: We are manufacturer.

Please refer to our company show

Q2: Where is your factory located? How can I visit there?

A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station.

Q3: How can I get some samples?

A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount.

Q4: How does your factory do regarding quality control?

A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification.

Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement

Delivery time: 5-7 days for sample and 25-30 days for mass production.

Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei

Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany.
